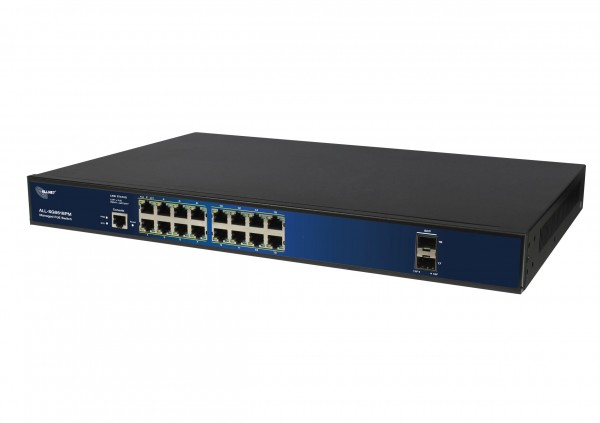

ALLNET Switch full managed Layer2+ 18 Port • 16x GbE • PoE Budget 280W • 16x PoE at • 2x SFP • 19" • Fanless • JSON API • ALL-SG8618PM

Highlights:

• 16 port Gigabit Layer2+ fully managed switch architecture
• Supports NWay protocol for speed (10/100/1000Mbps) and duplex mode (half/full) auto-detection
• Supports back-pressure (half duplex), flow control (IEEE 802.3x and IEEE 802.3az Energy Efficient Ethernet
• VLAN 4K Static / Port-Based / Tagged Based / Protocol / Voice VLAN / 802.1ad Q-in-Q
• Link Aggregation static link / LACP / Algorithm MAC based or IP based
• IGMP Snooping 256 groups IGMP v1/v2/v3, Fast Leave
• QoS (QoS>QoS multi-label, queue config, QoS mapping)
• Stormcontrol
• Totally fanless, no more annoying noises...  max. 280W budget
• 19"inch bracket or wall/table mounting possible

The new ALLNET ALL-SG8618PMJ switch provides an optimal basis for small and medium-sized workgroups with high network and data traffic and enables fast data transmission in the network. With a total of 16 backward-compatible Gigabit PoE ports, the connected PoE end devices are reliably and powerfully interconnected.

The ALL-SG8618PMJ is also ideal for use in office environments thanks to its fanless design, as no disturbing noise is generated. The switch is Layer 2+ fully managed and therefore supports all necessary standards such as QoS, VLAN, Spanning Tree, IGMP Snooping and Link Layer Discovery Protocol. This ensures the highest level of performance and security in your network.

The robust metal housing is suitable for mounting in a 19“ cabinet as well as for wall mounting. The ALL-SG8618PMJ also has 2x SFP miniGBIC slots to connect even remote server/uplink end devices via fibre optic cable.

Extensive PoE management function

As a managed PoE switch for CCTV surveillance, wireless and VoIP networks, the ALL-SG8626PM has the following special PoE management functions:

• PoE PD alive check
• Timed rebooting of the power supply
• PoE schedule
• Monitoring of PoE utilisation
• Soft reboot PoE non-stop
• Prioritisation of the PoE port feed-in

Intelligent PD alive check for frozen PDs

The ALL-SG8618PMJ industrial PoE switch with 24 ports can be configured to monitor the status of the connected PDs in real time. As soon as the PD stops working and responding, the ALL-SG8618PMJ restarts the power supply to the PoE port and gets the PD up and running again. In addition, reliability is greatly improved by the fact that the PoE port resets the PD power supply, reducing the administrative burden on the administrator.

PoE schedule function for energy saving

To protect the environment, the ALL-SG8618PMJ Switch Ethernet PoE can effectively control the power supply in addition to its ability to deliver high wattage. The PoE schedule function helps to enable or disable the PoE power supply for each PoE port during specific time intervals and is a powerful feature that helps SMEs or enterprises to save power and money.

Planned PD restart

The ALL-SG8618PMJ intelligent PoE switch allows each of the connected PoE IP cameras or PoE wireless access points to be restarted at a specific time every week. This reduces the risk of the IP camera or AP crashing due to a buffer overflow.

Redundant ring with fast recovery for critical network applications

The AALL-SG8618PMJ supports redundant ring technology and has a strong, fast self-recovery capability to prevent interruptions and external intrusions. It integrates advanced ITU-T G.8032 ERPS technology, Spanning Tree Protocol (802.1s MSTP) and a redundant power supply system into the customer's industrial automation network to improve system reliability and uptime in harsh factory environments. In a given simple ring network, the data link recovery time can be as fast as 20 ms.

Strong layer 2 functions

The ALL-SG8618PMJ Layer 2 Ethernet switch can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), QoS, bandwidth control, IGMP snooping and MLD snooping. By aggregating the supporting ports, the ALL-SG8618PMJ enables the operation of a high-speed trunk group that has multiple ports and also supports fail-over.

Efficient and versatile management methods

For efficient management, the ALL-SG8618PMJ is equipped with console, web and SNMP management interfaces.

With the integrated web-based management interface, it offers a user-friendly, platform-independent management and configuration option.

For text-based management, access is possible via Telnet and the console port.

For standards-based monitoring and management software, it provides an SNMPv3 connection that encrypts the packet contents for secure remote management during each session.

Intelligent PoE switch with SFP DDM function

The ALL-SG8618PMJ supports the SFP DDM (Digital Diagnostic Monitor) function, which allows the network administrator to easily monitor real-time parameters of SFP transceivers, such as optical output power, optical input power, temperature, laser bias voltage and transceiver supply voltage.

JSON-Java Script Object Notation API

With the JSON API, the ADMIN can create a special user and grant this user authorisation for JSON. We have focussed on 2 functions that we consider important.

• PoE ON/OFF & LAN Port Enabled/Disabled (for switches with PoE function)
• LAN Port Enabled/Disabled (for switches without PoE)

Technical data:
