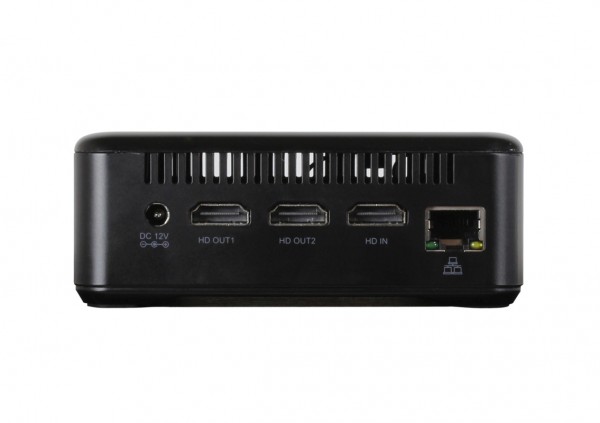

ALLNET NX5Pro MiniPC video server/client with Linux and Networkoptix 8GB/64GB ALL-NX5Pro-864
- stock: 0
- part no.: 213064
- vendor: ALLNET
- mnufacturer no.: ALL-NX5Pro-864
- EAN No.: 4038816127655
- weight: 0.37kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads





ALLNET NX5 Recorder: Compact, powerful and expandable – your reliable NVR with RK3588 chipset
Discover the ALLNET NX5 Recorder, a state-of-the-art surveillance solution that combines compact design and maximum performance. With the powerful RK3588 chipset, 8 GB RAM, 64 GB internal memory and an additional compartment for an HDD with up to 2 TB, this NVR offers everything you need to manage up to 16 cameras.
Technical highlights:
-
RK3588 chipset:
- Octa-core processor: 4x Cortex-A76 + 4x Cortex-A55 for optimal performance and efficiency.
- GPU: Mali-G610 MP4 for outstanding graphics performance and hardware-accelerated video decoding.
- Support for 8K video processing, perfect for high-resolution surveillance recording.
- AI acceleration: NPU with up to 6 TOPS for AI-based video analysis.
-
Memory:
- 8 GB RAM for smooth multitasking performance and fast data handling
- .
- 64 GB internal memory, expandable by an additional compartment for a 2 TB HDD, ideal for extensive video recordings.
-
Operating system:
- Based on Ubuntu Gnome, provides stability, security and a flexible, customisable user interface.
- Integrated NetworkOptix Nx5 software for intuitive management and easy control of your surveillance cameras.
-
Expandability:
- Compartment for a standard HDD with up to 2 TB, provides ample storage space for your surveillance data.
This compact NVR is the ideal solution for small to medium-sized surveillance projects. Whether for retail, offices or small businesses, the ALLNET NX5 recorder delivers professional security technology in a space-saving design.
The maximum height of a 2.5 inch HDD/SSD may only be 7mm!
Models:
NX5Pro-4GB/32GB in stock for up to 8 cameras
NX5Pro-4GB/64GB MOQ 50 pcs
NX5Pro-8GB/32GB MOQ 50 pcs
NX5Pro-8GB/64GB in stock 16-20 cameras
NX5Pro-8GB/128GB MOQ 50 pcs 16-20 cameras
NX5Pro-16GB/64GB MOQ 50 pcs up to 40 cameras
NX5Pro-16GB/128GB MOQ 50 pcs up to 40 cameras
NX5Pro-16GB/256GB MOQ 50 pcs up to 40 cameras
Package contents:
1 x 12V power supply
1 x HDMI® Cable
1 x User Manual + Colour Box
1 x RK3588 Player
1 x Remote Control
Dimensions: 116x116x45mm
Comparison with RK3399 CPU:
Processor | Rockchip RK3588 | Rockchip RK3399 |
Market (main) | Single-board computer | Single-board computer |
ISA | ARMv8-A (64-bit) | ARMv8-A (64-bit) |
Microarchitecture | Cortex-A76, Cortex-A55 | Cortex-A72, Cortex-A53 |
Family | RK3500 | RK3300 |
Part number(s), S-Spec | RK3588 | RK3399(K), RK3399 K |
Release date | Q4 2021 | Q1 2016 |
Lithography | 8 nm LP | 28 nm HKMG |
Cores | 8 | 6 |
Threads | 8 | 6 |
Base frequency | 1.8 GHz | 1.5 GHz |
Turbo frequency | 2.4 GHz | 2.0 GHz |
Energy cores | 4x ARM Cortex-A55 @ 1.8 GHz | 4x ARM Cortex-A53 @ 1.5 GHz |
High performance cores | 4x ARM Cortex-A76 @ 2.4 GHz | 2x ARM Cortex-A72 @ 2.0 GHz |
Cache memory | 3 MB | 1,512 MB |
Max memory capacity | 32 GB | 4 GB |
Memory types | LPDDR4, LPDDR4X, LPDDR5 | LPDDR3-1866, LPDDR4 SDRAM |
Max PCIe lanes | 4 | 4 |
TDP | 12 W | 7 W |
GPU integrated graphics | ARM Mali-G610 MP4 | ARM Mali-T860 MP4 |
GPU execution units | 4 | 4 |
GPU shading units | 64 | 64 |
GPU clock | 600 MHz | 600 MHz |
GPU FP32 floating point | 610.6 GFLOPS | 81.6 GFLOPS |
Socket | SoC | SoC |
Drystone MIPS | 131.342 DMIPS | 32,600 DMIPS |
AI accelerator | AI Accelerator, NPU 3.0 | - |
AI computing operations per seconds | 6 TOPS | - |
Crypto engine | - | AES 128/192/256, DES/3DES, SHA1/SHA256/MD5, PRNG, TRNG |
Security | - | Trustzone |
Max display resolution | 8K@60fps | 4K@60fps |
Video decoding | H.265/H.264 8K@60fps, 4K@120fps | H.265/H.264 4K@60fps |
Video encoding | H.265/H.264 8K@30fps | H.264 1080p@30fps |
Max camera ISP | 24 MP + 24 MP | - |
Max video capture | Dual MIPI-CSI | - |
Modem | 1000Mbps RJ45 Ethernet | 10/100/1000M Ethernet |
Connectivity | USB 2.0, USB 3.1 Type-C, HDMI 2.1, PCIe 3.0 | HDMI 2.0, USB 2.0, USB 3.0 |
Wi-Fi | Wi-Fi 2.4GHz/5GHz | - |
Bluetooth | Bluetooth 4.2 | - |
Audio | PDM | I2S, PCM, SPDIF |
PassMark CPU Mark | 6,124 | 1,378 |
(Android 64-bit) Geekbench 4 single core |
2,423 | 1,144 |
(Android 64-bit) Geekbench 4 multi-core |
8,162 | 2,776 |
(Android) Geekbench 5 single core |
508 | 269 |
(Android) Geekbench 5 multi-core |
2,235 | 615 |
(SGEMM) GFLOPS performance |
72.1 GFLOPS | 23.9 GFLOPS |
(Multi-core / watt performance) Performance / watt ratio |
680 pts / W | 397 pts / W |
Produktmerkmale:
Alternative Betriebssysteme: | Linux |
Arbeitsspeicher (RAM): | 4 |
Betriebssystem: | Android 12 |
Bluetooth: | ja |
Chipset: | RK3588 |
Einsatzbereiche: | Indoor |
Farbe Gehäuse: | schwarz |
Hauptspeicher: | 32 |
Kamera: | nein |
Mobilfunk: | nein |
Stromversorgung: | Netzteil |
WLAN: | 2,4/5 |
Herst.Art.Nr.: L01-NXWI-001
Herst.Art.Nr.: ALL-PSU12V5A-EUUSUK
