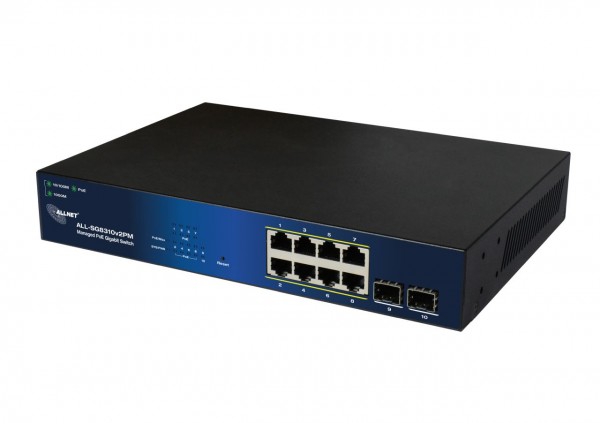

ALLNET Switch smart managed Layer2 10 Port • PoE Budget 140W • 8x PoE at • 2x SFP • 19" • Fanless • ALL-SG8310v2PM
- stock: 0
- part no.: 209904
- vendor: ALLNET
- mnufacturer no.: ALL-SG8310v2PM
- EAN No.: 4038816119186
- weight: 2.3kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity data sheet DE data sheet EN data sheet ES data sheet FR manual Handbuch EN EU RoHS und REACH ErklärungThere is an alternative article for this product!
ALLNET Switch smart managed Layer2 10 Port • PoE Budget 140W • 8x PoE at • 2x SFP • 19" • Fanless • ALL-SG8310v2PM
Highlights:
- 8-port 10/100/1000Mbps with full PoE support
- 2x SFP slots for optional MiniGBICS
- PoE power 4x a' 30 Watt (IEEE802.3at or 8x IEEE802.3af)
- FANLESS DESIGN with internal power supply unit
- Jumbo Frames and IGMP Snooping Support
- Link Aggregation and Rapid Spanning Tree
- IEEE802.1q VLAN tagging and 802.1p priority queues
- PoE budget 140 W
The ALL-SG8310v2PM is an 8-port 10/100/1000Mbps switch with PoE support on all ports, perfect for segmenting larger networks. It is an excellent choice to provide your network with more power and efficiency.
IEEE 802.3af&at Power over Ethernet (PoE).
The ALL-SG8310v2PM supports IEEE 802.3at PoE standard on 4 ports ports with up to 30W power per port for the connected PoE end devices, or full IEEE802.3af power on 8 ports with up to 15.4W. The maximum PoE budget is 140W. The ALL-SG8310v2PM uses the existing LAN cabling for the power supply. This facilitates the installation of PoE end devices such as WLAN access points, IP cameras, VoIP telephones and much more, as no consideration has to be given to power sockets during placement. The PoE ON/OFF function allows the administrator to conveniently reset the end devices remotely by turning off the PoE power supply for each individual port.
High-Speed Networking/Jumbo Frames Support
The ALL-SG8310v2PM provides an excellent solution for expanding your Gigabit network. With Gigabit speed, this product offers high flexibility and bandwidth for connectivity to servers, workstations and other connected devices. In addition, it also supports 9.6K jumbo frames for better network utilization, which greatly improves the transfer of large files.
Extensive management/administration features
Modern applications for video surveillance with IP cameras and Voice over IP are increasingly replacing classic analog technologies. This also increases the demands on the network infrastructure. The ALLNET ALL-SG8310v2PM is equipped with many management and security functions for all modern communication scenarios. IGMP Snooping, Tagged VLAN, Quality of Service, Port Trunking, Flow Control, Storm Control, Link Aggregation, IEEE802.1x, SNMP v1/ v2c and Spanning Tree are only a small excerpt from the extensive feature portfolio of the ALL-SG8310v2PM. For more details see Technical Details.
Technical Details:
Items |
Specifications |
Model No. |
ALL-SG8310v2PM |
Key Components |
RTL8382M Flash IC:16MB DDR: 1Gb IP808AR PSE controller |
I/O ports |
8x GbE ports, RJ45 2 x SFP Giga ports Reset Button: reset to default setting, re-start system Console port by RTJ45 Type |
PoE ports |
Port# 1~ 8 IEEE802.3at, IEEE802.3af |
LED Define |
PWR/SYS: Green LED
PoE Alert: Green LED
Port LED: Link/ACT:
PoE:
SFP: - Off: disconnected or fail - Green: 100/1000Mbps connected - Blinking: data transmitting |
HW feature |
IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3az EEE IEEE802.3at, IEEE802.3af MAC address Table: 8K Packet buffer size: 4.1M Jumbo Frame: 9K bytes |
Console |
Support Cisco-like CLI command |
Security |
DT Security circuit. |
PoE power pin-out |
Alternative A (Pin 1,2/3,6) |
PoE Output power capacity |
Maximum output :30W per each port
|
Power Input |
Internal power supply Input: 100-240V AC Output: 180W |
PoE Power Budget |
140W |
Reset button |
Support reset to default configuration |
Dimension |
265(W) x 183(D) x 44(H) mm |
FAN Design |
Fan-less |
Temperature |
Operating: 0 ~ 40? Storage : -40 ~ 70? |
Humidity |
Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 90% RH (non-condensing) |
Software Features
Status |
System Information |
||
Logging Message |
|||
Port |
Statistics |
||
Error Disabled |
|||
Bandwidth Utilization |
|||
Link Aggregation |
|||
MAC Address Table |
8K |
||
Network |
IP Address |
Static / Dynamic |
|
System Time |
SNTP / From Computer / Manual Time |
||
Port |
Port Setting |
State / Speed / Duplex / Flow Control |
|
Error Disabled |
Recovery Interval |
ACL / ARP Rate Limit / BPDU Guard / Broadcast Flood / DHCP Rate Limit / Port Security / Self Loop / Unicast Flood / Unknown Multicast Flood |
|
Link Aggregation |
Group |
||
Port Setting |
State / Speed / Flow Control |
||
LACP |
|||
EEE |
|||
Jumbo Frame |
9K Byte |
||
PoE |
Global Setting |
Schedule Status |
|
Priority Setting |
|||
Power Limit |
|||
Power Show |
|||
VLAN |
VLAN |
Create VLAN |
|
VLAN Configuration |
|||
Membership |
|||
Port Setting |
|||
Voice VLAN |
Property |
||
Voice OUI |
|||
Protocol VLAN |
Protocol Group |
||
Group Binding |
|||
MAC VLAN |
MAC Group |
||
Group Binding |
|||
Surveillance VLAN |
Property |
||
Surveillance OUI |
|||
GVRP |
Property |
||
Membership |
|||
Statistics |
|||
MAC Address Table |
Dynamic Address |
Aging Time |
|
Static Address |
|||
Filtering Address |
|||
Spanning Tree |
Property |
State / Operation Mode / Path Cost / BPDU Handling |
Operation Mode : STP/RSTP/MSTP |
Port Setting |
|||
MST Instance |
|||
MST Port Setting |
|||
Statistics |
|||
Discovery |
LLDP |
Property |
|
Port Setting |
|||
MED Network Policy |
|||
MED Port Setting |
|||
Packet View |
|||
Local Information |
|||
Neighbor |
|||
Statistics |
|||
Multicast |
General |
Property |
Unknown Multicast Action / Multicast Forward Method |
Group Address |
|||
Router Port |
|||
Forward All Table |
|||
Throttling |
|||
Filtering Profile |
|||
Filtering Binding |
|||
IGMP Snooping |
Property |
State / Version / Report Suppression |
|
Querier |
|||
Statistics |
|||
MLD Snooping |
Property |
State / Version / Report Suppression |
|
Statistics |
|||
MVR |
Property |
State / VLAN / Mode / Group Start / Group Count / Query Time |
|
Port Setting |
|||
Group Address |
|||
Security |
RADIUS |
||
TACACS+ |
|||
AAA |
Method List |
||
Login Authentication |
Console / Telnet / SSH / HTTP / HTTPS |
||
Management Access |
Management VLAN |
||
Management Service |
Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout |
||
Management ACL |
|||
Management ACE |
|||
Authentication Manager |
Property |
||
Port Setting |
|||
MAC-Based Local Account |
|||
WEB-Based Local Account |
|||
Sessions |
|||
Port Security |
|||
Protected Port |
|||
Storm Control |
State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown) |
||
DoS |
Property |
||
Port Setting |
|||
Dynamic ARP Inspection |
Property |
||
Statistics |
|||
DHCP Snooping |
Property |
||
Statistics |
|||
Option82 Property |
|||
Option82 Circuit ID |
|||
IP Source Guard |
Port Setting |
||
IMPV Binding |
|||
Save Database |
|||
ACL |
MAC ACL |
||
MAC ACE |
|||
IPv4 ACL |
|||
IPv4 ACE |
|||
IPv6 ACL |
|||
IPv6 ACE |
|||
ACL Binding |
|||
QoS |
General |
Property |
CoS / DSCP / CoS-DSCP / IP Precedence |
Queue Scheduling |
Strict Priority / WRR |
||
CoS Mapping |
|||
DSCP Mapping |
|||
IP Precedence Mapping |
|||
Rate Limit |
Ingress / Egress Port |
||
Egress Queue |
|||
Diagnostics |
Logging |
Property |
Console / RAM / Flash |
Remote Server |
|||
Mirroring |
|||
Ping |
|||
Traceroute |
|||
Copper Test |
|||
Fiber Module |
|||
UDLD |
Property |
Message Time |
|
Neighbor |
|||
Management |
User Account |
||
Firmware |
Upgrade / Backup |
Action (Upgrade / Backup) / Method (TFTP / HTTP) |
|
Active Image |
Active Image / Backup Image |
||
Configuration |
Upgrade / Backup |
Action (Upgrade / Backup) / Method (TFTP / HTTP) |
|
Save Configuration |
Source File / Destination File, Restore Factory Default |
||
SNMP |
View |
||
Group |
|||
Community |
|||
User |
|||
Engine ID |
|||
Trap Event |
Authentication Failure / Link UP_Down / Cold Start / Warm Start |
||
Notification |
|||
RMON |
Statistics |
||
History |
|||
Event |
|||
Alarm |
Produktmerkmale:
Anzahl Ports PoE/LAN: | 8/0 |
Belüftung Switch: | Lüfterlos |
Einsatzort Switch: | 19" |
LAN Geschwindigkeit: | 1Gbit/S |
Management: | smart managed (WebGui) |
PoE Budget: | <200 Watt |
PoE Port Leistung: | 30W at |
SFP Geschwindigkeit: | SFP 1GBit |
SFP Port Anzahl: | 2 |
