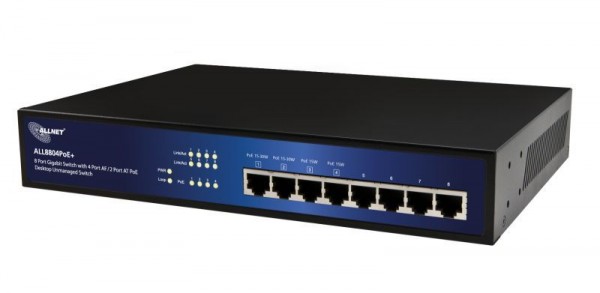

ALLNET ALL8804PoE+ / Unmanaged 8 Port Giga.HPoE Switch, 2x P
- stock: 0
- part no.: 99315
- vendor: ALLNET
- mnufacturer no.: ALL8804PoE+
- EAN No.: 4038816979773
- weight: 2.25kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
8-port 10/100/1000Mbit/s PoE Layer 2 Gigabit Ethernet Switch (4x 802.3af oder 2x 802.3at)
Highlights:
- 8-Port 10/100/1000Mbit/s with 4x Ports PoE AF or 2x PoE AT (30W)
- PoE performance 2x 30 Watt (IEEE802.3at) oor 4x 15,4 Watt (IEEE802.3af)
- internal power supply
- fanless design
The ALL8804PoE+ provides high power and data using Power over Ethernet (PoE) over Cat-5 cable. The Eight Gigabit Ethernet ports can be used for any 10/100/1000 Mbps link and four of these ports can supply industry-standard IEEE 802.3af and two ports can supply IEEE 802.3at power.ALL8804PoE+ delivers PoE to any small business network that wants to simplify the installation of IP-Phone and IP-based surveillance cameras.
Technical Details:
Standard Compliance | IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.ab 1000BaseT IEEE 802.3af PoE IEEE 802.3at PoE IEEE 802.3x Flow Control and Back-pressure IEEE 802.1p Class of Service |
Switch Features | RJ-45 Ports: 8x 10/100/1000 Mbps MAC Address: 8K Buffer Memory: 2048K Bytes Jumbo Frames: 9.6K Transmission Method: Store and Forward |
Management | N/A |
Power | 100~240V/AC, 50~60Hz |
Power consumption (without PoE) | Max. 5 Watt |
Power consumption (with PoE) | Max. 65 Watt |
Case | Metal housing |
Weight | 0.95 kg |
Operating temperature | 0 to 40°C |
Storage temperature | -20 to 90°C |
Humidity | 10 to 90% (non-condensing) |
Certificates | FCC Class A, CE |
Produktmerkmale:
| Anzahl Ports PoE/LAN: | 4/4 |
| Belüftung Switch: | Lüfterlos |
| Einsatzort Switch: | 19" |
| LAN Geschwindigkeit: | 1Gbit/S |
| Management: | unmanaged |
| PoE Budget: | <100 Watt |
| PoE Port Leistung: | 30W at |
