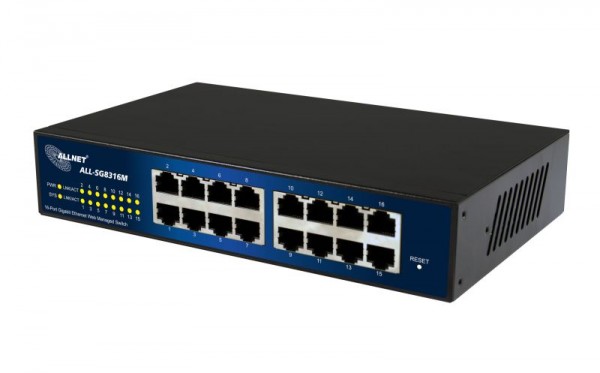

ALLNET ALL-SG8316M / 16 Port Gigabit, smart managed, FANLESS

Costeffective 16 Port Managed Gigabit Layer-2 Switch FANLESS for Desktop and 19" Rackinstallations

Highlights:

• 16 Port Gigabit non-blocking Switch Architektur
• support 10/100/1000Mbps and Duplexmodus (half/full) auto-detection
• support back-pressure (half duplex), flow control (IEEE 802.3x und IEEE 802.3az Energy Efficient Ethernet
• VLAN "64 Static / Port-Based / Tagged Based
• Link Aggregation ( IEEE802.3ad LACP & Static Trunk)
• IGMP Snooping (v1/v2/v3)
• QoS (Port Based, Flow, 802.1p, IP-TOS, IP DSCP)
• Stormcontrol (Broadcast, Multicast, Unicast)
• FANLESS total quit
• 10/19" Brackets or Wall-Mount option

The ALL-SG8316 provides 16 10/100/1000Mbps ports. The switch provides performance, QoS, advanced security strategies and rich layer 2 management features. This Gigabit managed switch is cost-effective for the ideal small and medium business solution.
ALL-SG8316  have robust security and management features. The ALL-SG8316 Switch support a lot of features like Flow Control, Spanning Tree, VLAN, Link Aggregation IGMP Snooping & QoS. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive Layer 2 Switch and gigabit capability, ALLNET managed SwitchALL-SG8316  provides you the ideal access-edge solution.

Secure Networking

The ALL-SG8316M switch provides IP-MAC-Port-VID Binding, Port Security, Storm control which protect against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect these attacks more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID.

Advanced QoS features

To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based  on different options like 8 Priority Queues, Class of Service, Queue Scheduling and Rate Limit. Voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supporting, the voice applications will operate with much smoother performance.

Abundant Layer 2 features

For more application of layer 2 switches, ALL-SG8316 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Mirroring, Spanning Tree STP/RSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switch provides advanced features for network maintenance. Such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.

Enterprise Level Management Features

ALL-SG8316 is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI), either administration traffic can be protected through HTTPS encryptions. SNMP (v1/2) support enables the switch to be polled for valuable status information and send traps on abnormal events.

Technical Detials:
