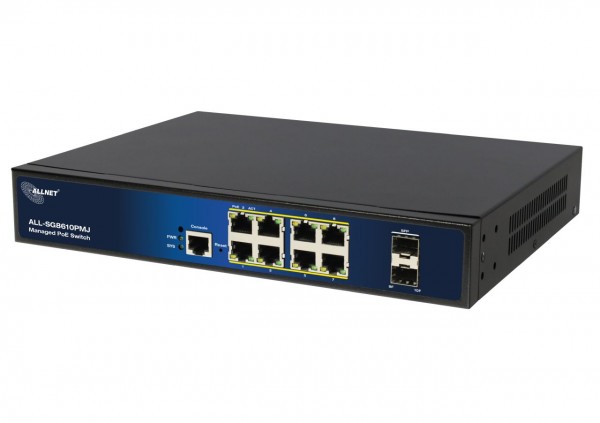

ALLNET Switch full managed Layer2+ 10 Port • 8x GbE • PoE Budget 130W • 8x PoE at • 2x SFP • 19" • Fanless • JSON API • ALL-SG8610PMJ

Highlights:

• 8-port 10/100/1000Mbit/s with full PoE support
• 2x SFP slots for optional MiniGBICS
• PoE power 4x a´ 30 watts (IEEE802.3at or 8x IEEE802.3af)
• LÜFTERLESS DESIGN with internal power supply
• Supports L2+ switching functions such as 802.1Q VLAN, mirroring, port isolation, IGMP snooping, DHCP snooping, LLDP, POE+ management, IP source guard, ARP inspection, ACLs etc.
• Support of Spanning Tree STP(802.1D) and RSTP(802.1W) and MSTP(802.1s).
• Support of extended management via WEB, CLI, TELNET, SSH, SNMP.
• Support for cable diagnostics and SFP DDM.
• Supports PoE management, such as PoE schedule, PoE PD Alive.
• Supports G.8032 quick ring protocol. Self-recovery time <20ms.
• Supports DDM, SFP digital diagnostics & monitoring
• Support of IPV4 and IPV6 functions for static routing
• Support of memory and CPU monitoring
• 4KV overvoltage protection, 6KV contact/8KV air protection
• PoE budget 130 W
• NEW: PoE & LAN JSON Java script notation API for ON/OFF via remote

Product description:

The ALL-SG8610PM is a fully managed Layer 2+ Gigabit PoE switch that features intelligent PoE capabilities to improve the availability of critical business applications. It offers IPv6/IPv4 management and an integrated L2+ Gigabit switching engine together with 8*10/100/1000BASE-T ports with 30 Watt 802.3at PoE+ and 2 Gigabit SFP slots. With a total power budget of up to 130 W for various types of PoE applications, it offers fast, secure and cost-effective Power over Ethernet network solutions for IP surveillance in small businesses and enterprises.

The ALL-SG8610PM is programmed for advanced switch management features such as 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Loop and BPDU Guard, IGMP Snooping and MLD Snooping. In addition, the Link Layer Discovery Protocol (LLDP) is included as a layer 2 protocol to determine basic information about neighbouring devices in the local broadcast domain.

Extensive PoE management function

As a managed PoE switch for CCTV surveillance, wireless and VoIP networks, the ALL-SG8610PM has the following special PoE management functions:

• PoE PD alive check
• Timed rebooting of the power supply
• PoE schedule
• Monitoring of PoE utilisation
• Soft reboot PoE non-stop
• Prioritisation of the PoE port feed-in

Intelligent PD alive check for frozen PDs

The ALL-SG8610PM industrial PoE switch with 24 ports can be configured to monitor the status of the connected PDs in real time. As soon as the PD stops working and responding, the ALL-SG8610PM restarts the power supply to the PoE port and gets the PD up and running again. In addition, reliability is significantly improved by the fact that the PoE port resets the PD power supply, reducing the administrative burden on the administrator.

PoE schedule function for energy saving

To protect the environment, the AALL-SG8610PM Switch Ethernet PoE can effectively control the power supply in addition to its ability to deliver high wattage. The PoE schedule function helps to enable or disable the PoE power supply for each PoE port during specific time intervals, and is a powerful feature that helps SMEs or enterprises to save power and money.

Planned PD restart

The intelligent PoE switch ALL-SG8610PM allows each of the connected PoE IP cameras or PoE wireless access points to be restarted at a specific time every week. This reduces the risk of the IP camera or AP crashing due to a buffer overflow.

Redundant ring with fast recovery for critical network applications

The ALL-SG8610PM supports redundant ring technology and has a strong, fast self-recovery capability to prevent interruptions and external intrusions. It integrates advanced ITU-T G.8032 ERPS technology, Spanning Tree Protocol (802.1s MSTP) and a redundant power supply system into the customer's industrial automation network to improve system reliability and uptime in harsh factory environments. In a given simple ring network, the data link recovery time can be as fast as 20 ms.

Strong layer 2 functions

The ALL-SG8610PM Layer 2 Ethernet switch can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), QoS, bandwidth control, IGMP snooping and MLD snooping. By aggregating the supporting ports, the ALL-SG8610PM enables the operation of a high-speed trunk group that has multiple ports and also supports fail-over.

Efficient and versatile management methods

For efficient management, the ALL-SG8610PM is equipped with console, web and SNMP management interfaces.

With the integrated web-based management interface, it offers a user-friendly, platform-independent management and configuration option.

For text-based management, access is possible via Telnet and the console port.

For standards-based monitoring and management software, it provides an SNMPv3 connection that encrypts the packet contents for secure remote management during each session.

Intelligent PoE switch with SFP DDM function

The ALL-SG8610PM supports the SFP DDM (Digital Diagnostic Monitor) function, which allows the network administrator to easily monitor real-time parameters of the SFP transceivers, such as optical output power, optical input power, temperature, laser bias voltage and transceiver supply voltage.

 JSON-Java Script Object Notation API

With the JSON API, the ADMIN can create a special user and grant this user authorisation for JSON. We have focussed on 2 functions that we consider important.

• PoE ON/OFF & LAN Port Enabled/Disabled (for switches with PoE function)
• LAN Port Enabled/Disabled (for switches without PoE)
