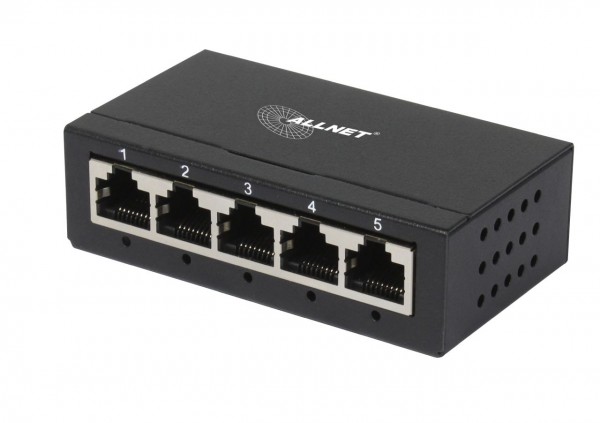

ALLNET Switch unmanaged Layer2 5 Port • 5x 1GbE • Fanless • ALL-SG8005
- stock: 0
- part no.: 215276
- vendor: ALLNET
- mnufacturer no.: ALL-SG8005
- EAN No.: 4038816215277
- weight: 0.198kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
data sheet DE
data sheet EN
data sheet ES
data sheet FR
EU RoHS und REACH Erklärung
Highlights:
- Plug and play, easy to install.
- Transmission Distance up to 100Meters, speed up to 1,000 Mbps.
- Power Consumption 85% Reduction
- Complies with IEEE802.3, IEEE802.3u standards.
- 5 10/100/1000Mbps Auto-Negotiation RJ45 ports, Add up to five devices to a local network.
- Supporting Auto-MDI/MDIX.
- Supports IEEE802.3x flow control for Full Duplex mode and backpressure for half-duplex mode.
- Supports MAC address auto-learning and auto-aging.
- LED indicators for monitoring power, link, activity.
- Metal Case, Durable, Compact Design
Accelerate the performance of your local wired network with the 5-Port Business Desktop Gigabit Switch. It is offering five gigabit Ethernet auto-sensing ports with wired connection speeds of up to 1,000 Mbps, this unmanaged switch lets your home or office to expand its local network and send large files to servers, drives, and printers at gigabit speed. With plug-and-play convenience and auto-sensing ports that automatically optimize speed for each connected device, offers a quick and easy solution for extending your office or home network.
Technical Details:
|
Model No. |
ALL-SG8005 |
|
Interface |
5x 10/100/1000/Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
|
Chip |
EN8850 |
|
Switching Capacity |
10 Gbps |
|
Housing |
Metal Case |
|
Power Input |
External Power adapter 5V DC/1A. |
|
LED |
Power, 10/100M,1000M, LINK, ACT |
|
Fan |
Fanless |
|
Transfer Method |
Store and forward |
|
Dimension |
Product Size: 84*48*25.6mm. Box Size: 85*52*70mm |
|
Weight |
Product Weight: 111g. Product with Box Weight: 198g |
|
Advanced Functions |
Green Technology, saving power up to 85% |
|
Environment |
Operating Temperature: 0°C ~ 40°C (32°F~104°F) |
|
Package Contents |
5-Port 10/100/1000Mbps Unmanaged Desktop Switch |
Produktmerkmale:
| Anzahl Ports PoE/LAN: | 0/5 |
| Belüftung Switch: | Lüfterlos |
| Einsatzort Switch: | Desktop |
| LAN Geschwindigkeit: | 1Gbit/S |
| Management: | unmanaged |
