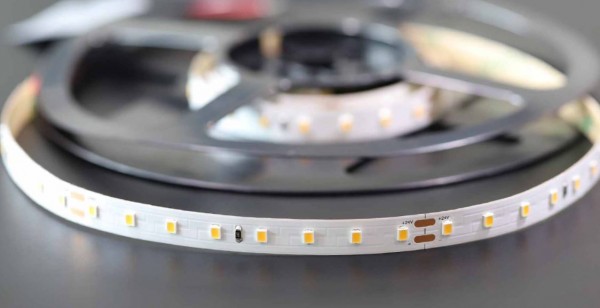

Synergy 21 LED Flex Strip 80 WW DC24V 60W IP20 CRI>97
- stock: 0
- part no.: 188120
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-C001112
- EAN No.: 4038816188120
- weight: 0.3kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
There is an alternative article for this product!
Synergy 21 LED Flex Strip 2835 Series
2835=LED chip size 2.8mm x 3.5mm
Length: 5m
Voltage: 24V DC
Watt: 14,4W/m, 72W
Light colour: Warm white, 3000K, CRI>97
Brightness: 110Lm/W, 1584LM/m Total: 7920Lm
Beam angle: 120°
Protection class: IP20
Number of LEDs: 80*2835SMD/m, total: 400LEDs
Dimensions: 5000*10*2 mm
PCB colour: white, open cable end red black (150±5mm)
Operating temperature: -25°C to +40°C
Weight: 0.500kg
Can be shortened every 6 LEDs, 100mm
Adhesive tape: yes 3M on the back
Energy efficiency class: A
kWh/1000h: 79.2
Strip can be shortened at the cut marks with sharp scissors.
!Attention! Strip must first be checked for functionality.
Only split the strip when no current is present.
Our 3M adhesive tape adheres well, but should only be used as a mounting aid.
There are a variety of mounting options, such as clips, permanently elastic mounting adhesive, cable ties, etc.
Please note that LED strips must also be cooled.
Make sure that the LED strip does not exceed a working temperature of 40°C, otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 2.50 |
| CC oder CV: | CV |
| CRI: | >97 |
| Dimmbar: | abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 10 |
| LED Strip Höhe: | 2 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 100 |
| Lichtfarbe: | neutralweiss |
| Lichtfarbe in Kelvin: | 3000 |
| Lumen: | 7920 |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | 60 |
