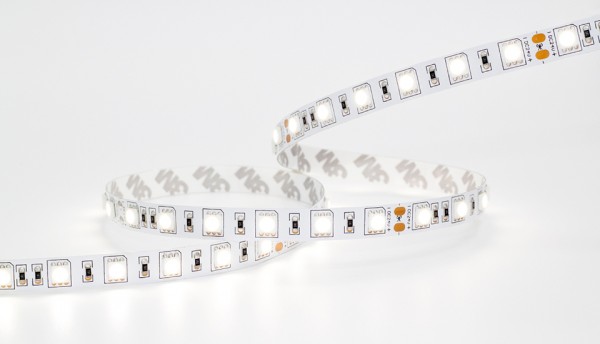

Synergy 21 LED flex strip 60 WW DC12V 72W IP20
- stock: 0
- part no.: 94180
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-F00017
- EAN No.: 4038816988218
- weight: 0.145kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet ES
EU RoHS und REACH Erklärung
LED Flex Strip warm white, white PCB
DC12V, max. 6A, 72W ± 10%,
Light colour: 3000K (± 10%) warm white
Brightness: 4200lm
300Leds, 120°, 5050SMD
Beam angle: 120°
Length: 5000*10*3mm,
IP20
Adhesive tape for mounting aid on the back
Can be shortened:all 3 LEDs (50mm)
Open cable end
Suitable up to -5°C!
Strip can be shortened at marking points with sharp scissors.
!Attention! Strip must first be checked for functionality.
Only split the strip when no current is applied.
Our 3M adhesive tape adheres well, but should only be used as a mounting aid.
There are a variety of mounting options, such as clips, permanent mounting adhesive, cable ties, etc.
Energy efficiency class: A
kWh/1000h: 72
Please note that LED strips also need to be cooled.
Make sure that the LED strip does not exceed an operating temperature of 40°C, otherwise the service life cannot be guaranteed.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 6 |
| CC oder CV: | CV |
| CRI: | >80 |
| Dimmbar: | abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 10 |
| LED Strip Höhe: | 3 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 50 |
| Lichtfarbe: | warmweiss |
| Lichtfarbe in Kelvin: | 3000 |
| Lumen: | 4200 |
| Schutzklasse: | IP20 |
| Volt: | 12 |
| Watt: | 72 |
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 72,00 |
| Lumen: | 4200 |
| Watt: | 72,0 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
