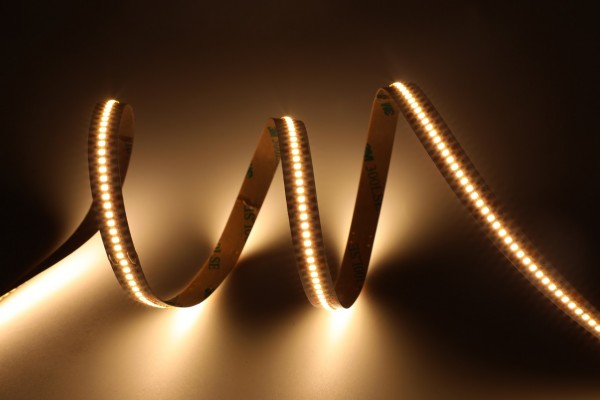

Synergy 21 LED flex strip 70 WW DC24V 36W IP20 CRI>90 2216
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 209811
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-B220005
- EAN No.: 4038816125125
- weight: 0.5kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
EU RoHS und REACH Erklärung
Synergy 21 LED Flex Strip 2216 series
Voltage: 24V,
Watt: 7.2W/m, 36W
Light colour: warm... more
Product information "Synergy 21 LED flex strip 70 WW DC24V 36W IP20 CRI>90 2216"
Synergy 21 LED Flex Strip 2216 series
Voltage: 24V,
Watt: 7.2W/m, 36W
Light colour: warm white, 2700K, CRI>90
Brightness: ww: 630lm/m
Beam angle: 120°
Protection class: IP20
Number of LEDs: 70*2216SMD/m, total: 350LEDs
Dimensions: 5000*8*2.2 mm
Working temperature: -25°C to +40°C
Coolable every 7LEDs 10cm
Adhesive tape: yes 3M on the back
Make sure that the LED strip does not exceed the working temperature of 40°C, otherwise the service life cannot be guaranteed. No guarantee can be given for overheated LED Strips.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 1,5 |
| CC oder CV: | CV |
| CRI: | >90 |
| Dimmbar: | abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 8 |
| LED Strip Chip Anzahl: | 70 |
| LED Strip Chip Typ: | 2216 |
| LED Strip Höhe: | 2,2 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 10 |
| Lichtfarbe in Kelvin: | 2700 |
| Lumen: | 3150 |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | 36 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 36.00 |
| Lumen: | 3150.00 |
| Watt: | 36.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
