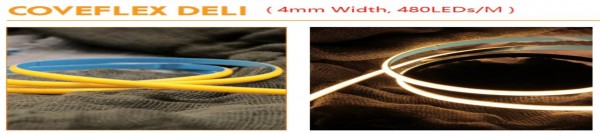

Synergy 21 LED Flex Strip COB KW DC24V 25W CRI>90
-
Last Stock Article
- stock: 0
- part no.: 198068
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-DELI-65
- EAN No.: 4038816106827
- weight: 0.08kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
There is an alternative article for this product!
Synergy 21 LED Flex Strip with COB chip SLIM 4mm wide
Length: 5m
Voltage: 24V DC
Wattage: 5W/m, 25W
Light colour: cool white, 6500K, CRI>90
Brightness: 480lm/m, total: 2400lm
Protection class: IP20
Number of LEDs: 480/m, Total: 2400 LEDs
PCB width: 4 mm
Height: 2 mm
Can be cut every 50 mm
Adhesive tape: yes, 3M on the back
The strip can be cut at the cutting marks using sharp scissors.
!Warning! The strip must be checked for functionality beforehand.
Only cut the strip when it is de-energised.
Our 3M adhesive tape adheres well, but should nevertheless only be regarded as an aid to installation.
There are a variety of mounting options available, such as clips, permanently elastic mounting adhesive, cable ties, etc.
Please note that LED strips must also be cooled.
Ensure that the LED strip does not exceed an operating temperature of 40°C, as otherwise its service life cannot be guaranteed.
No warranty can be provided for overheated LED strips.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 2 |
| CC oder CV: | CV |
| CRI: | >90 |
| Dimmbar: | Ja, abhängig vom Netzteil |
| LED Strip Klebeband: | ja |
| LED Strip Breite: | 4 |
| LED Strip Chip Typ: | COB |
| LED Strip Höhe: | 2 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 62.50 |
| Lichtfarbe: | neutralweiss |
| Lichtfarbe in Kelvin: | 4000 |
| Lumen: | 5225 |
| Produktname: | COB - SLIM |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | 50 |
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 60.500000 |
| Lumen: | 5225.000000 |
| Watt: | 55.000000 |
| Nennlebensdauer: | 35000.000000 Std. |
| Schaltzyklen: | 50000.000000 |
| Opt. Umgebungstemperatur: | 25.000000 °C |
| EEK Label | Download |
