Synergy 21 LED Flex Strip COB - RGB-W DC24V 75W IP20 SWW
- stock: 0
- part no.: 235795
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-003F240190
- EAN No.: 4038816137623
- weight: 0.215kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung

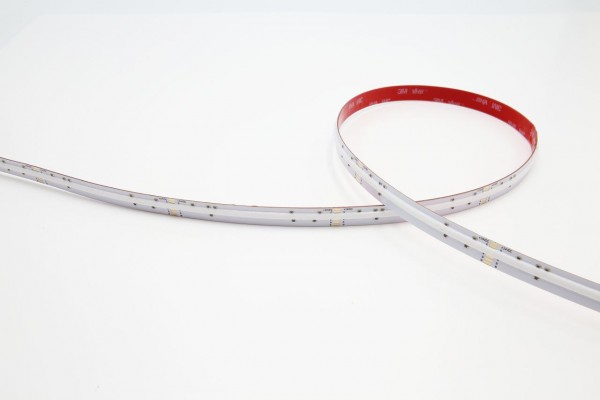

Synergy 21 LED Flex Strip Series COB high power
A copper strip is embedded on the reverse side to improve stability and heat dissipation.
Voltage: 24V,
Wattage: 15W/m, 75W total
Light colour: RGBW + 2700K, CRI>90
Luminous efficacy: 44 lm/W or 660 lm/m, total: 3300 lm
Beam angle: 120°
Protection rating: IP20
Number of LEDs: 1344 LEDs/m, total: 6720 LEDs
LED type: COB
Cut-to-size: 83.3 mm
LED strip dimensions: 5000 × 12 × 2.5 mm
Operating temperature: -25°C to +40°C
Adhesive tape: yes, 3M on the back
Please ensure that the LED strip does not exceed the operating temperature of 40°C, as otherwise its service life cannot be guaranteed.
No guarantee can be given for overheated LED strips.
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 3,125 |
| CC oder CV: | CV |
| CRI: | >90 |
| Dimmbar: | Ja, abhängig vom Netzteil |
| LED Strip Breite: | 12 |
| LED Strip Chip Typ: | COB |
| LED Strip Höhe: | 2,5 |
| LED Strip Länge: | 5000 |
| LED Strip kürzbar: | 83,3 |
| Lichtfarbe: | RGB-W |
| Lichtfarbe in Kelvin: | 2700 |
| Lumen: | 3300 |
| Produktname: | COB - RGB/RGBW/RGB-CCT IP20 |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | 75 |
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 75.000000 |
| Lumen: | 3300.000000 |
| Watt: | 75.000000 |
| Nennlebensdauer: | 50000.000000 Std. |
| Schaltzyklen: | 35000.000000 |
| Opt. Umgebungstemperatur: | 25.000000 °C |
| EEK Label | Download |
