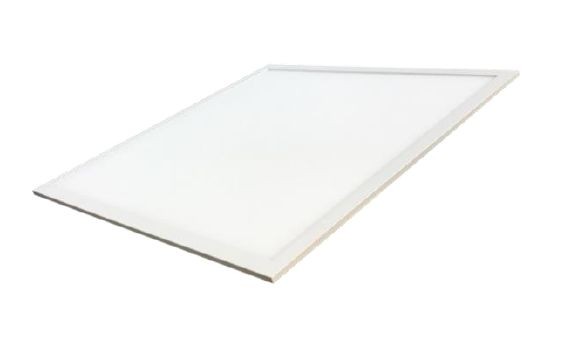

Synergy 21 LED light panel 620*620 neutral white 35W V3 PRO white UGR<19
- stock: 0
- part no.: 149067
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-J00248
- EAN No.: 4038816070999
- weight: 3.75kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
Lichtberechnungsdatei
EU RoHS und REACH Erklärung
Ultra Slim LED Panel Light, PRO version
Intended use: Installation in the Odenwald ceiling
Other types of installation are also possible with optional accessories
(surface-mounted, flush-mounted, suspended, wall-mounted and recessed, etc.)
Frame colour: white
Power consumption: 35 watts
Lumen output: 4200Lm, Lm/W=120
Light colour: neutral white 4000
MacAdam/SDCM < 3
Colour rendering index (CRI): >83
Beam angle: 120°
Unified glare rating: UGR<19
Protection class: IP40 / IK05
Rated lifetime (L80): 50,000h
Operating temperature: -10° to +45° (Amb.)
Power supply: 700mA & 42±2V/DC (constant current)
Attention: the panel is supplied WITHOUT power supply as standard.
Power supply: see accessories
Size (outer dimensions): 622mm x 622mm x 12mm
Size (hole dimensions): 605mm x 605mm
Warranty: 5 years
Energy efficiency class: A+
kWh/1000h: 38.5
IES files download: http://www.synergy21.de/service-support/downloads/lichtberechnung-ies/
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 0.70 |
| CRI: | 80 |
| Dimmbar: | abhängig vom Netzteil |
| Grösse: | 620*620 |
| LED - Gehäusefarbe: | weiß |
| Lichtfarbe: | neutralweiss |
| Lichtfarbe in Kelvin: | 4000 |
| Lumen: | 4200 |
| Schutzklasse: | IP40 |
| UGR: | <19 |
| Volt: | 38-44 |
