Synergy 21 LED-Leuchtplatte 620*620 dual weiß (CCT) 40W V3 weiß
- stock: 0
- part no.: 148737
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-J00240
- EAN No.: 4038816070678
- weight: 5kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
Lichtberechnungsdatei
EU RoHS und REACH Erklärung

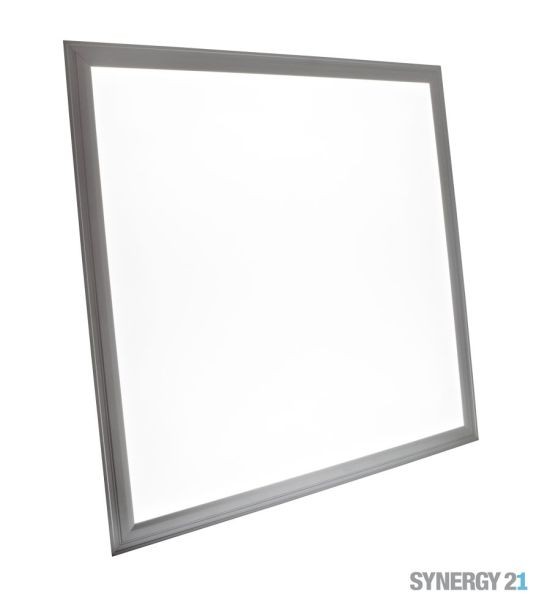

Ultra Slim LED Panel Light
Suitable for ceiling/wall installation and surface mounting
Light colours can be switched separately by 2 power supply units, optionally dimmable.
(warm white individually, cold white individually, or both together = neutral white)
Attention: Power supply units are NOT included in the scope of delivery.
Frame colour: white
Power consumption: 40Watt (20W warm white, 20W cold white)
Number of LEDs: 1488LEDs total
Number of lumens: 4000lm ww+cw together
Warm white: 1900lm, 2600-2900K, CRI>80, 120°
Cold white: 2100lm, 5500-6500K, CRI>80, 120°
Protection class: IP20
Operating temperature: 0° to +40°
Power supply: Power supply unit not included in the scope of delivery
Suitable power supply units: 2 pieces of 500mA, 35V ±3V
Size (external dimensions): 620mm x 620mm x 12mm
Size (internal dimensions): 600mm x 600mm x 12mm
Weight: 5000g
Energy efficiency class: A+
kWh/1000h: 44
Warranty period: 5 years
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 0.50 |
| CRI: | 80 |
| Dimmbar: | ja |
| Grösse: | 620*620 |
| LED - Gehäusefarbe: | weiß |
| Lichtfarbe: | dualweiss |
| Lichtfarbe in Kelvin: | 2600-6500 |
| Lumen: | 4000 |
| Schutzklasse: | IP40 |
| Energieeffizienz Klasse F | |
|---|---|
| kwh/1000h: | 44.00 |
| Lumen: | 4000.00 |
| Watt: | 40.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
