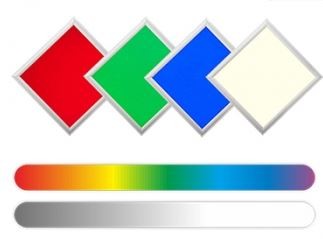

Synergy 21 LED-Leuchtplatte 620*620 RGB-WW (RGB-CCT) 24V V3

Synergy 21 LED-Leuchtplatte 620*620 RGB-WW (RGB-CCT) 24V V3
Synergy 21 LED-Leuchtplatte 620*620 RGB-WW (RGB-CCT) 24V V3

Preview: Synergy 21 LED-Leuchtplatte 620*620 RGB-WW (RGB-CCT) 24V V3 Preview: Synergy 21 LED-Leuchtplatte 620*620 RGB-WW (RGB-CCT) 24V V3
product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Description Accessories 9
Description
Ultra Slim LED Panel Light, model RGB-WW (RGB-CCT) Intended use: Installation in the Odenwald... more
Close menu
Product information "Synergy 21 LED-Leuchtplatte 620*620 RGB-WW (RGB-CCT) 24V V3"

Ultra Slim LED Panel Light, model RGB-WW (RGB-CCT)
Intended use: Installation in the Odenwald ceiling
Other types of installation are also possible with optional accessories
(surface-mounted, flush-mounted, suspended, wall-mounted and recessed, etc.)

Warm white, cold white and RGB can be controlled separately
(white individually, RGB individually, or all together = RGB-WW)


Frame colour: white
Power consumption: 44Watt
Number of lumens: 3250lm white
White: 3000K - 6000K, CRI>80, 120°
RGB: 20W
Protection class: IP20
Operating temperature: -10° to +45° (Amb.)
Power supply: 24V DC
Size (external dimensions): 620mm x 620mm x 11mm
Weight: 3500g
Warranty: 5 years

Energy efficiency class: A
kWh/1000h: 44

Produktmerkmale:

Abstrahlwinkel: 120
Ampere: max 3,5
CC oder CV: CV
CRI: >80
Dimmbar: ja
Grösse: 620*620
LED - Gehäusefarbe: weiß
LED - Gehäusematerial: Alu
Lichtfarbe: RGB-CCT
Lichtfarbe in Kelvin: 2700-6500
Schutzklasse: IP40
Volt: 24
Watt: 48+36
Informationen zur Energieeffizienz
Energieeffizienz Klasse G
kwh/1000h: 48,00
Lumen: 4100
Watt: 48,0
Nennlebensdauer: 35000 Std.
Schaltzyklen: 50000
Opt. Umgebungstemperatur: 25 °C
EEK Label Download
