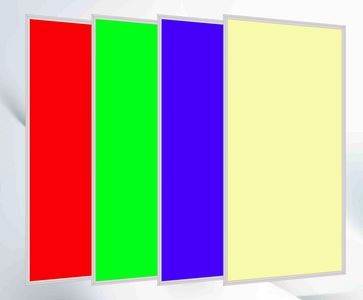

Synergy 21 LED light panel 300*1200 RGB-W 24V V3
- stock: 0
- part no.: 149597
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-NB00288
- EAN No.: 4038816071941
- weight: 3.5kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung
Ultra Slim LED Panel Light, model RGB-W
Intended use: Installation in the Odenwald ceiling
Other types of installation are also possible with optional accessories
(surface-mounted, flush-mounted, suspended, wall-mounted and recessed, etc.)
White and RGB can be controlled separately
(white individually, RGB individually, or both together = RGB-W)
Common positive pole (black cable)
Frame colour: White
Power consumption: 44Watt
Lumen output: 3250lm white
Warm white: 3000K, CRI>80, 120°
RGB: 20W
Protection class: IP20
Operating temperature: -10° to +45° (Amb.)
Power supply: 24V DC
Size (external dimensions): 295mm x 1195mm x 11mm
Weight: 3500g
Warranty: 5 years
Energy efficiency class: A
kWh/1000h:
Produktmerkmale:
| Abstrahlwinkel: | 120 |
| Ampere: | 2,9 |
| Betriebstemperatur: | -10° bis +45° |
| CC oder CV: | CV |
| CRI: | >80 |
| Dimmbar: | ja |
| Grösse: | 300*1200 |
| LED - Gehäusefarbe: | weiß |
| LED - Gehäuseform: | rechteckig |
| Lichtfarbe: | RGB-W |
| Lichtfarbe in Kelvin: | 3000 |
| Lumen: | 3250 |
| Schutzklasse: | IP40 |
| Volt: | 24 |
| Watt: | 48+20 |
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 48.00 |
| Lumen: | 3250.00 |
| Watt: | 48.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
