Synergy 21 LED Morpheus V3 - 24V
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 162700
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-TOM00994
- EAN No.: 4038816162700
- weight: 0.465kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
EU RoHS und REACH Erklärung

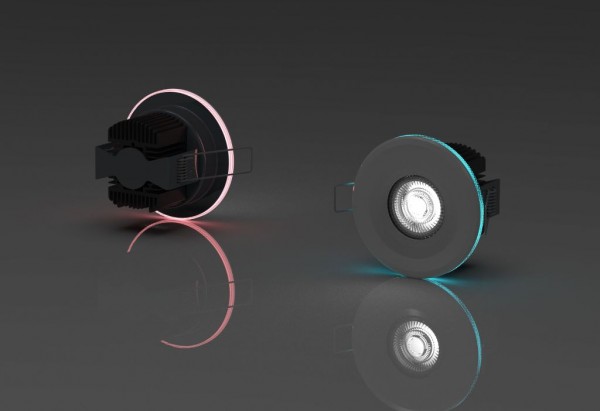

Recessed ceiling spotlight with RGB-WW
Morpheus V3 - 24V
Can be controlled with any 24V RGB-WW... more
Product information "Synergy 21 LED Morpheus V3 - 24V"
Recessed ceiling spotlight with RGB-WW
Morpheus V3 - 24V
Can be controlled with any 24V RGB-WW (CCT) controller.
Light colour: 2800-6500K and RGB
Watt: 7W
Voltage: 24V DC
Lumen: ww=400lm, cw=411lm, ww+cw=820lm
Beam angle: 60°
CRI: >80
Dimensions: 90*90*60mm
Installation dimensions: 70 x 70mm
Cable length 15cm in the corresponding RGB-WW colours
Includes white, black and silver trim ring.
Energy efficiency class: A+
kWh/1000h: 7.7
Produktmerkmale:
| Abstrahlwinkel: | 60 |
| Ampere: | 0,3 |
| Betriebstemperatur: | -10° ~ +40°C |
| CC oder CV: | CV |
| CRI: | >80 |
| Dimmbar: | ja |
| Grösse: | 90*90*60 |
| LED - Gehäusefarbe: | schwarz |
| Lichtfarbe: | RGB-WW |
| Lichtfarbe in Kelvin: | 2800-6500 |
| Lumen: | 1220 |
| Schutzklasse: | IP20 |
| Volt: | 24 |
| Watt: | 7 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 7.70 |
| Lumen: | 600.00 |
| Watt: | 7.00 |
| Nennlebensdauer: | 35000.00 Std. |
| Schaltzyklen: | 50000.00 |
| Opt. Umgebungstemperatur: | 25.00 °C |
| EEK Label | Download |
