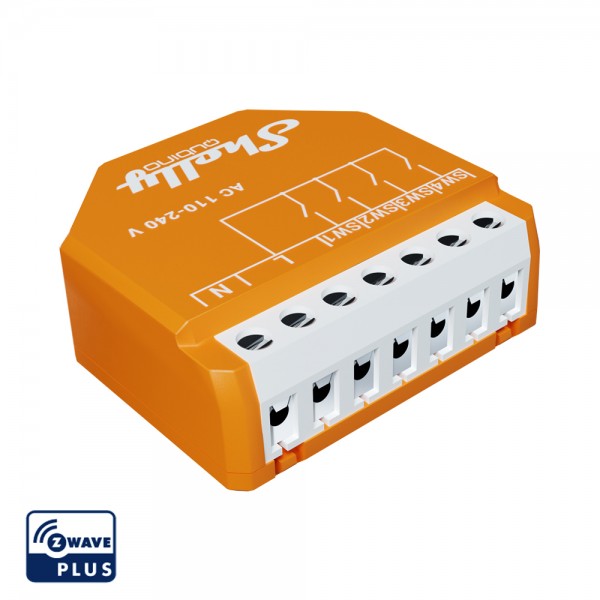

Shelly · Unterputz · "Wave i4" · Szenenaktivierer · 12 Aktionen · Z-Wave
-
EU RoHS und REACH Erklärung
- stock: 0
- part no.: 224174
- vendor: Shelly
- mnufacturer no.: Shelly_W_i4
- EAN No.: 3800235269077
- weight: 0.1kg
- warranty: 24 months
- Do you have any questions concerning this product?
Z-Wave™ 4-digital inputs controller for enhanced actions control
Manually activate or deactivate any created scene, run synchronized actions, or execute complex trigger scenarios.
- Wave i4 is an input reader device (it does not contain relays).
- Manually control other Z-Wave devices (e.g. with a multi-button switch)
- Multi-click – activation of up to 12 actions
- Extremely low power consumption: < 0.2 W
- Z-Wave frequency band: 868.4 MHz (CEPT countries)
- Latest technology: Z-Wave 800 Series
- Automatic set-up with SmartStart
- Security 2 Authenticated for the highest level of security
- Over-the-air firmware updates
- Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices
A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.
WHY WAVE i4?
Replace one of the switches in your room and control any other installed Z-Wave device!
Wave i4 allows you to manually activate or deactivate any created scene, run synchronized actions, or execute complex trigger scenarios. You can use it to control other Z-Wave devices within your network with one push of a button. Due to its retrofit design, it is small enough to fit behind every wall switch. Wave i4 can show the status and control the action of four inputs, offering maximum convenience by enabling manual control of your smart home to all family members.
INTRODUCTION TO Z-WAVE
Shelly Qubino works on Z-Wave
By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.
Z-wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-wave hub.
For more information, please visit the official Z-wave website: www.z-wave.com
Works with any Z-Wave gateway
Wave i4 is retrofit and designed to fit behind switches/push-buttons. Once installed, include the device in your Z-Wave network (Z-Wave gateway is required) and control it using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.
Functionalities
Z-Wave operated
Include Wave i4 to your Z-Wave network and control it remotely. It‘s compatible with all certified Z-Wave gateways.
Multi-click support
Up to 12 possible actions. Control the lights, close the blinds, turn off outlets. Manually control any Z-Wave device in your network and run the scenes you desire.
Wide range of voltage support
Wave i4 can be powered by 110-240 V AC.
Associations
Establish direct communication between devices in your Z-Wave local network and set actions with no hub present! Configure up to 8 associations on the switch buttons and trigger them manually.
Smart scenes
Set custom scenes by combining Wave i4 with any other Z-Wave devices (gateway required).
Endless use applications
Multi-actions support
With a simple push of a button, you can activate up to 12 scenes or actions from other Z-Wave devices in your network. Wave i4 supports up to 3 different automation actions per button, which makes it extremely convenient for quick manual control over a group of devices.
Install Wave i4 where it is the most convenient for you and set buttons to simultaneously control lights, blinds, and other devices in specific rooms or entire building.
Scene Activation:
1 click
Turn off multimedia appliances
2 clicks
Close blinds
1 long click (hold)
Switch the light in the hallway on/off
Trigger up to 8 actions without a gateway!
Wave i4 allows you to establish direct communication between your Z-Wave devices and set various associations without requiring a hub! By supporting 2 associations per button, Wave i4 enables you to trigger and execute up to 8 actions and thus seamlessly control multiple Z-Wave devices with a simple press of a button.
Examples:
1 click (for basic commands)
Turn on/off lights
1 long click (hold) (for multilevel commands)
Dim lights or open/close blinds
Gateway/hub is needed for a configuration of the device.
Ultimate comfort
One of the most frustrating things is to realize you forgot to switch off the lights in the living room before you go to bed. Especially when your phone is nowhere around. But there is no need to worry! Wave i4 allows manual control of other Z-Wave devices with a switch. Now the full control of your house is just one hand away!
Complex scenes control
Manually activate or deactivate complex scenes. With Wave i4, you can run synchronized actions of several Z-Wave devices. You can install Wave i4 close to the front door of your home and turn off/on all the lights in your house with one push of the button, saving you time when you are in a hurry.
Perfect match
Wave i4 is perfect for Shelly Wall Switch for Smart Relays – a 4 button switch. Each button can activate up to 4 different actions. That means that only one 4 button switch would allow as much as 16 scenes trigger and execution! Thanks to its compact dimensions and simple wiring, Shelly Wall Switch can fit into any existing switch console or even the tiniest spaces. No expansion of the wall space or any changes in the wiring needed!
Specifications
Power supply | AC110-240 V, 50/60 Hz |
---|---|
Power supply DC | No |
Power consumption | < 0.2 W |
Overload protection | No |
Power measurement | No |
Working without a neutral line | No |
Number of inputs | 4 |
Distance | up to 40 m indoors (131 ft.) (depends on local condition) |
Z-Wave repeater: | Yes |
CPU | Z-Wave S800 |
Z-Wave frequency band | 868,4 MHz; |
Maximum radio frequency power transmitted in frequency band(s) | < 25mW |
Size (H x W x D) | 37x42x16 0.5 mm / 1.46x1.65x0.63 0.02 in |
Weight | 17 g / 0.6 oz |
Mounting | Wall console |
Screw terminals max. torque | 0.4 Nm / 3.5 lbin |
Conductor cross section | 0.5 to 1.5 mm / 20 to 16 AWG |
Conductor stripped length | 5 to 6 mm / 0.20 to 0.24 in |
Shell material | Plastic |
Color | Orange |
Ambient temperature | -20°C to 40°C / -5°F to 105°F |
Humidity | 30 % to 70 % RH |
