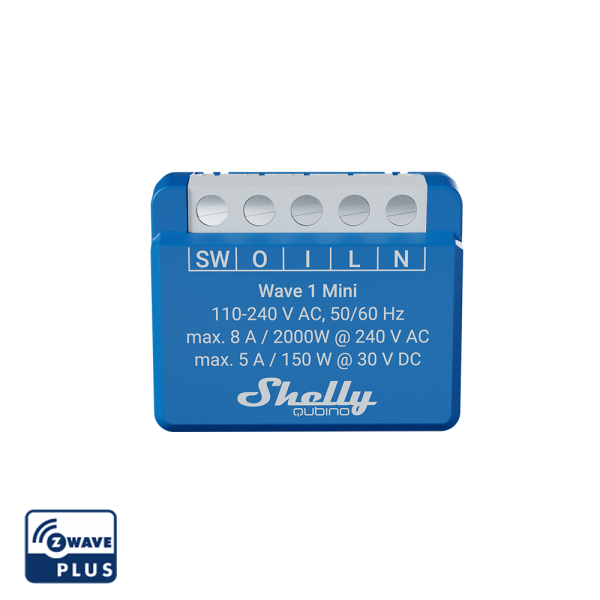

Shelly · Unterputz · "Wave 1 Mini" · Relais · max. A · 1 Kanal · Z-Wave

Shelly · Unterputz · "Wave 1 Mini" · Relais · max. A · 1 Kanal · Z-Wave
Shelly · Unterputz · "Wave 1 Mini" · Relais · max. A · 1 Kanal · Z-Wave
Shelly · Unterputz · "Wave 1 Mini" · Relais · max. A · 1 Kanal · Z-Wave
Shelly · Unterputz · "Wave 1 Mini" · Relais · max. A · 1 Kanal · Z-Wave
Shelly · Unterputz · "Wave 1 Mini" · Relais · max. A · 1 Kanal · Z-Wave
product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Smart Z-Wave® switch, 1 channel 8 A with dry contacts The world's smallest smart Z-Wave... more
Product information "Shelly · Unterputz · "Wave 1 Mini" · Relais · max. A · 1 Kanal · Z-Wave"

Smart Z-Wave® switch, 1 channel 8 A with dry contacts
The world's smallest smart Z-Wave switch for intelligent control. Automate a variety of small electrical devices such as locks, garage doors, irrigation systems and lights and control them remotely. Due to its compact design, Wave 1 Mini is perfect for even the smallest sockets and/or devices.

Supports up to 8 A at 240 V AC and 5 A at 30 V DC
 Dry contacts (potential-free)
 Extremely low power consumption: < 0.3 W
 Z-Wave frequency band: 868.4 MHz (CEPT countries)
 Latest technology: Z-Wave 800 series
 Automatic setup with SmartStart
 Security 2 Authenticated for the highest security level
 Supports over-the-air firmware updates
 Quick and easy installation in most sockets and switches
 Works with Z-Wave certified gateways and over 4,000 Z-Wave devices


*A gateway (Smart Hub) is not included in the scope of delivery. A gateway (smart hub) is required to configure the device.

WHY WAVE 1 MINI?

Mini size, mini price

Designed with convenience in mind, these mini relays offer all the capabilities of the Wave 1. The size has been reduced by 35%, making the Wave 1 Mini perfect for tight spaces where traditional relays simply won't fit. Despite the small size, the Wave Mini devices do not compromise on performance or functionality.

Shelly Qubino works with Z-Wave
By using Z-Wave, smart home products can communicate seamlessly with each other thanks to a centralised smart hub, regardless of their brand or platform! Shelly Qubino devices work with the latest Z-Wave chip generation (S800), one of the most popular standardised technologies for smart homes worldwide.

*Z-Wave devices have specific requirements to function correctly, such as the need to use a supported Z-Wave hub. For more information, please visit the official Z-wave website: www.z-wave.com

Works with any Z-Wave gateway
Devices are designed to fit behind any switch or socket or can be built directly into the device, making it an instant smart device. Once installed, add it to your Z-Wave network (a Z-Wave gateway is required) and control connected devices from anywhere with your smartphone or tablet.
Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.

WAVE 1 MINI FEATURES

Z-Wave controlled

Add the Wave 1 Mini to your Z-Wave network and control it remotely. It is compatible with all certified Z-Wave gateways.

Dry contacts?

Connect different power supply loads (up to 8 A) to the device.

Associations

Establish direct communication between devices in your local network.

Supports a variety of different voltages

Use a wide range of output voltages. Supports low voltages.

Smart schedules?

Create personalised schedules that adapt to your daily routine or synchronise with sunrise/sunset to control your lighting (gateway required).

Smart scenes

Set customised scenes by combining the Wave 1 Mini with other Z-Wave devices (gateway required).

APPLICATION EXAMPLE

Synchronise your lights with your daily routine?

Thanks to its compact size, the Wave 1 Mini can easily be placed behind any light switch or in the ceiling canopy of the lamp. Synchronise your lighting with the sunset times so that the light adapts to the changing light conditions and your home is always pleasantly lit and inviting when you are at home. Additionally, you can automate the lights to go out after your family's bedtime to prevent the lights from staying on all night and avoid unnecessary energy consumption.

Make every small electrical device in your home smart?

Turn any electrical appliance in your home, old or new, into a smart device with the Wave 1 Mini. Its 8 A limit is perfect for small to medium sized appliances such as lamps, electric kettles, etc. Place the device in the socket or discreetly in the housing of the appliance without the need for additional external wiring.

Control your garage door

The compact design of the Wave 1 Mini makes it possible to place the device in very small spaces or install it directly in the housing of the garage door opener or even close to the motor. Its 8 A capacity ensures reliable garage door control, allowing you to control the garage door conveniently and remotely without the need for bulky external modules.

Automate your irrigation system based on the weather

Thanks to the compact shape of the Wave 1 Mini, it can be installed near the irrigation system control panel or inside waterproof enclosures to ensure protection from the elements. Its 8A capacity is perfect for controlling irrigation valves and enabling effortless watering of your garden with one click on your smartphone, even when you're on holiday. For complete peace of mind, simply set the schedule and the sprinklers will switch on automatically

SPECIFICATIONS:

Power supply 110 - 240 V AC, 50/60 Hz
Power consumption < 0,3 W
Max. switching voltage AC 240 V
Max. switching current AC 8 A
Max switching power AC 2000 W
Max. switching voltage DC 30 V
Max. switching current DC 5 A
Overheating protection Yes
Distance Up to 40 m indoors (131 ft.)(depends on local condition)
Z-Wave® repeater: Yes
CPU Z-Wave® S800
Z-Wave® frequency bands: 868,4 MHz
Maximum radio frequency power transmitted in frequency band(s) < 25 mW
Size (H x W x D) 29x35x16 ±0.5 mm / 1.11x1.35x0.63 ±0.02 in
Weight 19 ±1 g / 0.65 ±0.04 oz
Mounting Wall box
Screw terminals max. Torque 0.4 Nm / 3.54 lbin
Conductor cross section 0.5 to 1.5 mm / 20 to 16 AWG
Conductor stripped length 5 to 6 mm / 0.20 to 0.24 in
Shell material Plastic
Color Blue
Ambient temperature -20°C to 40°C / -5°F to 105°F
Humidity 30% to 70% RH
Max. Altitude 2000 m / 6562 ft.
