Z-Wave™ 4-digital inputs controller for enhanced actions control Manually activate or... more
Product information "Shelly · Unterputz · "Wave i4 DC" · Szenenaktivierer · 12 Aktionen · Z-Wave"

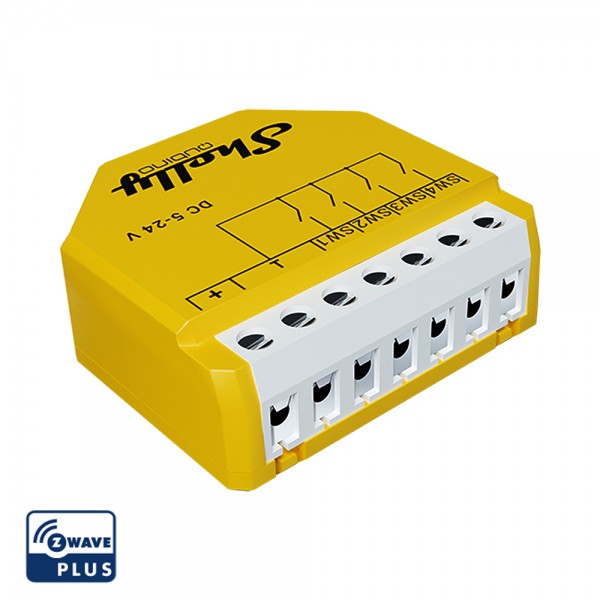

Z-Wave™ 4-digital inputs controller for enhanced actions control

Manually activate or deactivate any created scene, run synchronized actions, or execute complex trigger scenarios.

  1. Wave i4 DC is an input reader device (it does not contain relays).
  2. Manually control other Z-Wave devices (e.g. with a multi-button switch)
  3. Multi-click – activation of up to 12 actions
  4. Extremely low power consumption: < 0.3 W
  5. Z-Wave frequency band: 868.4 MHz (CEPT countries)
  6. Latest technology: Z-Wave 800 Series
  7. Automatic set-up with SmartStart
  8. Security 2 Authenticated for the highest level of security
  9. Over-the-air firmware updates
  10. Works with Z-Wave-certified gateways and over 4,000 Z-Wave devices

A gateway (smart hub) is not included. A gateway (smart hub) is required for the configuration of the device.

WHY WAVE i4 DC?

Replace one of the switches in your room and control any other installed Z-Wave device!

Wave i4 DC allows you to manually activate or deactivate any created scene, run synchronized actions, or execute complex trigger scenarios. You can use it to control other Z-Wave devices within your network with one push of a button. Due to its retrofit design, it is small enough to fit behind every wall switch. Wave i4 can show the status and control the action of four inputs, offering maximum convenience by enabling manual control of your smart home to all family members.

INTRODUCTION TO Z-WAVE

Shelly Qubino works on Z-Wave

By using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or platform, thanks to a centralized smart hub! Shelly Qubino devices work on the latest Z-Wave chip generation (S800), one of the most popular standardized technologies for smart homes in the world.

Z-wave devices have specific requirements in order to function correctly, such as the necessity to use a supported Z-wave hub.
For more information, please visit the official Z-wave website: www.z-wave.com

Works with any Z-Wave gateway

Wave i4 DC is retrofit and designed to fit behind switches/push-buttons. Once installed, include the device in your Z-Wave network (Z-Wave gateway is required) and control it using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.

Functionalities

Z-Wave operated

Include Wave i4 to your Z-Wave network and control it remotely. It‘s compatible with all certified Z-Wave gateways.

Multi-click support?

Up to 12 possible actions. Control the lights, close the blinds, turn off outlets. Manually control any Z-Wave device in your network and run the scenes you desire.

Wide range of voltage support

Wave i4 DC can be powered by 5-24 V AC.

Associations

Establish direct communication between devices in your Z-Wave local network and set actions with no hub present! Configure up to 8 associations on the switch buttons and trigger them manually.

Smart scenes

Set custom scenes by combining Wave i4 with any other Z-Wave devices (gateway required).

Endless use applications

Multi-actions support

With a simple push of a button, you can activate up to 12 scenes or actions from other Z-Wave devices in your network. Wave i4 DC supports up to 3 different automation actions per button, which makes it extremely convenient for quick manual control over a group of devices.

Install Wave i4 DC where it is the most convenient for you and set buttons to simultaneously control lights, blinds, and other devices in specific rooms or entire building.

Scene Activation:

1 click

Turn off multimedia appliances

2 clicks

Close blinds

1 long click (hold)

Trigger up to 8 actions without a gateway!

Wave i4 DC  allows you to establish direct communication between your Z-Wave devices and set various associations without requiring a hub!* By supporting 2 associations per button, Wave i4 DC enables you to trigger and execute up to 8 actions and thus seamlessly control multiple Z-Wave devices with a simple press of a button.

Examples:

1 click (for basic commands)

Turn on/off lights

1 long click (hold) (for multilevel commands)

Dim lights or open/close blinds

Gateway/hub is needed for a configuration of the device.

Ultimate comfort

One of the most frustrating things is to realize you forgot to switch off the lights in the living room before you go to bed. Especially when your phone is nowhere around. But there is no need to worry! Wave i4 DC allows manual control of other Z-Wave devices with a switch. Now the full control of your house is just one hand away!

Complex scenes control

Manually activate or deactivate complex scenes. With Wave i4 DC, you can run synchronized actions of several Z-Wave devices. You can install Wave i4 DCclose to the front door of your home and turn off/on all the lights in your house with one push of the button, saving you time when you are in a hurry.

Perfect match

Wave i4 DC is perfect for Shelly Wall Switch for Smart Relays – a 4 button switch. Each button can activate up to 4 different actions. That means that only one 4 button switch would allow as much as 16 scenes trigger and execution! Thanks to its compact dimensions and simple wiring, Shelly Wall Switch can fit into any existing switch console or even the tiniest spaces. No expansion of the wall space or any changes in the wiring needed!

Specifications

Power supply DC 5-24 V DC
Power supply AC No
Power consumption < 0.3 W
Overload protection No
Power measurement No
Number of inputs 4
Distance Up to 40 m indoors (131 ft.) (depends on local condition)
Z-Wave repeater: Yes
CPU Z-Wave S800
Z-Wave frequency band 868,4 MHz
Maximum radio frequency power transmitted in frequency bend(s) < 25 mW
Size (H x W x D) 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 in
Weight 17 g / 0.6 oz
Mounting Wall console
Screw terminals max. torque 0.4 Nm / 3.5 lbin
Conductor cross section 0.5 to 1.5 mm / 20 to 16 AWG
Conductor stripped length 5 to 6 mm / 0.20 to 0.24 in
Shell material Plastic
Color Yellow
Ambient temperature -20°C to 40°C / -5°F to 105°F
Humidity 30 % to 70 % RH
