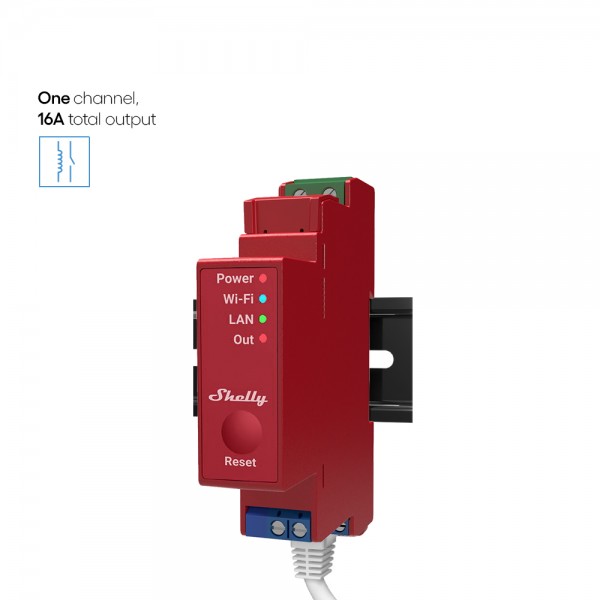

Shelly · Hutschiene · "Pro 1PM" · Relais · max. 16A · 1 Phase · 1 Kanal · Messfunktion · WLAN · LAN · BT
-
EU RoHS und REACH Erklärung
- stock: 0
- part no.: 205997
- vendor: Shelly
- mnufacturer no.: Shelly_Pro_1PM
- EAN No.: 3800235268018
- weight: 0.08kg
- warranty: 24 months
- Do you have any questions concerning this product?
Professional 1-channel DIN rail relay with power metering
- LAN, Wi-Fi, and Bluetooth connection
- 1 output, 16A
- Power metering
- Overpower and overvoltage protection of the load
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
WHY SHELLY PRO 1PM?
The best solution for new home buildings and business facilities
Shelly Pro 1PM is a one-phase, 1-channel relay supporting up to 16A. Equipped with an integrated power meter, Shelly Pro 1PM allows you to measure the precise power consumption of all automated lights or heavier appliances. Different types of actions, scenarios, and schedules can be set to sync your environment to your daily activities or business needs. Additionally, Shelly Pro 1PM has scripting functionalities for custom automation scenes based on external data or various occurrences.
Shelly Pro series
Enhanced with temperature, overpower, and overvoltage load protection, Shelly Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Shelly Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.
Functionalities
LAN, Wi-Fi, and Bluetooth connectivity
LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as backup when needed.
1 channel, 16 A
Shelly Pro 1PM has a total device output of 16A.
Power Monitoring
Shelly Pro 1PM provides precise monitoring of the power consumption.
Wide range of voltage support
Use it to control a wide range of devices and appliances.
Enhanced safety & security
Improved safety features and TLS 1.2 support, allowing a broad range of secure cloud-connected and local integrations.
Scripting capabilities
Shelly Pro 1PM fully supports mjS scripting, allowing you to create further features and functionalities.
Endless use applications
Avoid unnecessary energy usage by controlling the office equipment power supply
Stop unnecessary energy usage in the office over the weekend! Computers and monitors that somebody forgot to turn off, plugged chargers, lit up desk lights, printers and copy machines left switched on, etc. - all these appliances are consuming energy when nobody is in the office, unnecessarily burdening the monthly bills. Avoid that by setting Shelly Pro 1PM to cut off the power supply of the office appliances over the weekend to save on energy. Use smart scheduling functions to restore the power supply before the employees arrive at the office.
Efficient floor heating control
Make sure the temperature of your business facility or home is always welcoming – whether it’s a yoga studio, gym changing room, spa center, or your own living room! Control your floor heating based on the current weather forecast or create a scene with Shelly Pro 1PM and Shelly Flood and have the floor heating turned on whenever a decrease in floor temperature is detected.
Appliances control & monitoring
Predict monthly costs and plan your spending better! Automate the electrical appliances in the restaurant and track their energy consumption wherever you are. Shelly will inform you in case an appliance is forgotten and left working outside of restaurant working hours, notifying you to switch it off to avoid electricity consumption waste. Additionally, you can set smart schedules and have Shelly cut off the power to all unused electrical appliances during the night and turn them back on right before the kitchen opens.
Preventative management
When an electrical appliance is damaged, it doesn't simply stop working. Usually, it increases the amount of energy used in an attempt to compensate for its operational capacity. Since there is no visible difference in its performance, it might take months before you can identify a problem, leading to inefficiency and wasted energy. Shelly Pro 1PM, however, will immediately report the increase in energy consumption and will save you additional expenses on repairs or replacement of equipment.
Pro line capabilities
Enhanced with temperature, overpower, and overvoltage load protection, Shelly Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Shelly Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.
Connectivity
Wi-Fi
Working on 2.4 GHz Wi-Fi network, supporting Access Point (AP) and Client Mode (CM) options
Bluetooth
Add devices fast and easy via Bluetooth connection, using the Shelly Cloud App
LAN
LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as backup, when needed.
Safety
Temperature protection
Overpower protection (PM devices)
Overvoltage load protection (PM devices)
Flame Retardant (V-0)
Features
HTTP/HTTPS webhooks
Sunrise/Sunset actions with offsets
Weekly Scheduling
Custom scripts(mJs)
Grouping Scenes
Enhanced safety features
Overheating protection
In case of unsafe temperature levels or rapid temperature increase, device switches off the outputs and sends notification. Internal temperature sensor is measuring the heat every 100 ms.
Overpower protection
Detected overpower will lead to outputs switch off by the device and it will immediately send a notification. Overpower protection feature protects the device and other electrical equipment from potential damage.
*Feature is available only for power metering-enabled devices
Overvoltage protection
Voltage peaks could be dangerous for electrical appliances and machines. To avoid damage to the electrical appliances the device switches off the outputs when overvoltage peaks are detected and immediately sends a notification.
*Feature is available only for power metering-enabled devices
Flame Retardant (V-0)
All Shelly Pro components are produced with flame-resistant materials and will keep their construction even when exposed to high levels of heat.
Pro Series features
HTTP/HTTPS webhooks for quick connection
Enhanced with HTTP/HTTPs webhooks, Shelly Pro line can easily connect with, notify or control other compatible equipment or 3rd party automation system.
Smart actions that follow the Sunrise/Sunset
Shelly Pro line can switch on/off the power, depending on the Sunset/Sunrise hour, allowing dynamic control of the electrical equipment depending on the season.
Automation with weekly scheduling
Shelly Pro line allows you to set up to 20 actions based on your daily or weekly schedule with no need for an external hub or server.
Scripting for custom automation
Shelly Pro line fully supports mjS scripting, allowing customers to create their own features and functionalities.
Specifications
POWER | |
---|---|
Power supply AC | 110-240V, 50/60Hz |
Maximum load | 16A |
Channels | 1 Channel |
SPECIAL FUNCTIONS | |
Roller shutter mode | No |
Device temperature protection | Yes |
Overload protection | Yes |
Power measurement | Yes |
FEATURES | |
HTTP/HTTPS webhooks | Yes |
Custom scripts (mJs) | Yes |
Operational temperature | -20°C to + 40 °C |
Device power consumption | < 3 W |
Intelligent On/Off | Yes |
Local and remote control | Yes |
Sunrise/Sunset | Yes |
Weekly Schedule | Yes |
UL Listed option | No |
CONNECTIVITY | |
Wireless | Yes |
Max RF output power | 13.34 dBm |
Wi-Fi Protocol | 802.11 b/g/n |
Wi-Fi Radio frequency | 2412 - 2483 MHz |
Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
Bluetooth | Yes |
Ethernet | Yes |
DIMENSIONS | |
Size | 18,5mm x 89,5mm x 68,5mm |
