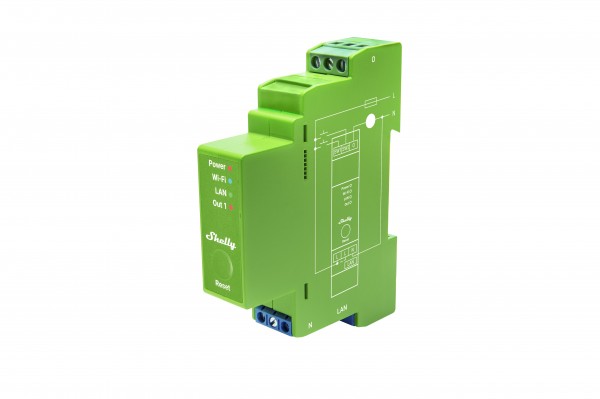

Shelly - DIN rail - "Pro Dimmer 1PM" - LEDs & light bulbs - 1 channel - measuring function - WLAN - LAN - BT

Shelly - DIN rail - "Pro Dimmer 1PM" - LEDs & light bulbs - 1 channel - measuring function - WLAN - LAN - BT
Shelly - DIN rail - "Pro Dimmer 1PM" - LEDs & light bulbs - 1 channel - measuring function - WLAN - LAN - BT
Shelly - DIN rail - "Pro Dimmer 1PM" - LEDs & light bulbs - 1 channel - measuring function - WLAN - LAN - BT

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Professional 1-channel DIN rail smart dimmer with power monitoring LAN, Wi-Fi, and... more
Product information "Shelly - DIN rail - "Pro Dimmer 1PM" - LEDs & light bulbs - 1 channel - measuring function - WLAN - LAN - BT"

Professional 1-channel DIN rail smart dimmer with power monitoring

  • LAN, Wi-Fi, and Bluetooth connection
  • Power metering and free storage data
  • Night mode for lower brightness during night hours
  • Automatic calibration of dimming type and load
  • Multiple dimming types for different types of bulbs- leading & trailing edge
  • Switch/button input mode
  • Use with your existing switches (one/dual button control)
  • Adjustable min/max brightness
  • Adjustable button fade rate and transition time
  • No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
  • Wi-Fi Range Extender & BLE Gateway
  • Extremely fast processor for immediate reaction - ESP32
  • Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates

WHY SHELLY PRO DIMMER 1PM?

The best dimming solution for new home buildings and business facilities

Shelly Pro Dimmer 1PM is a DIN-rail mountable, one-channel smart dimmer with power monitoring. Use it to control, dim, and power measure a wide range of halogen lights, dimmable LED, and ferromagnetic transformers between 110-240V. Different types of actions, scenarios, and schedules can be set to sync your lighting environment to your daily activities or business needs.

Shelly Pro series

Enhanced with temperature, overpower, and overvoltage load protection, Shelly Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Shelly Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.

Functionalities

LAN, Wi-Fi, and Bluetooth connectivity

LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as back up when needed.

Light intensity adjustment

Use the dimming function to set the brightness of your lights to your preference.

Power Monitoring

Shelly Pro Dimmer 1PM provides precise monitoring of power consumption.

Flexible input control

Use it with your existing switches, no matter if they're single or dual button.

Enhanced safety & security

Improved safety features and TLS 1.2 support, allowing a broad range of secure cloud-connected and local integrations,

Smart scenes

Set custom scenes by combining Shelly Pro Dimmer 1PM with your other Shelly devices

Use cases

Brightness that suits your activities

Shelly Pro Dimmer 1PM gives your fine-tuned control to tailor your lighting to perfection. Set the minimum and maximum brightness levels to match both your personal preferences and the capabilities of your bulbs, ensuring that the lighting in your home is always just right. But the Shelly Pro Dimmer 1PM offers more than just customized brightness. It also allows you to pre-set your preferred lighting scenes for various activities and moods. Whether you want to set the ambiance for a relaxing evening or ensure the best brightness for focused tasks, simply use your existing wall switch to swiftly transition between your chosen atmospheres.

Lights that follow the sun

Give your facility a beautiful exterior and provide the necessary safety by controlling your outdoor and driveway lights. Shelly Pro Dimmer 1PM can help you reduce their energy consumption by dimming them down to 30% after 10PM.

Optimized energy consumption

Shelly Pro Dimmer 1PM stands as an ideal solution for various dimming and power-metering needs - from expansive multi-room residences to the sophisticated demands of hotels or big office spaces. As part of the professional line series, the device is engineered for seamless integration into a DIN Rail enclosure, which allows you to precisely control and monitor the lights in different rooms. Thus, you can plan your business expenses better, and strategically optimize the energy consumption for enhancing efficiency and cost-effectiveness.

Pro line capabilities

Connectivity

Wi-Fi
Working on 2.4 GHz Wi-Fi network, supporting Access Point (AP) and Client Mode (CM) options

Bluetooth
Add devices fast and easy via Bluetooth connection, using the Shelly Cloud App

LAN
LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as backup, when needed.

Safety

Temperature protection

Overpower protection (PM devices)

Overvoltage load protection (PM devices)

Flame Retardant (V-0)

Features

HTTP/HTTPS webhooks

Sunrise/Sunset actions with offsets

Weekly Scheduling

Custom scripts(mJs)

Grouping Scenes

Pro Series features

HTTP/HTTPS webhooks for quick connection

Enhanced with HTTP/HTTPs webhooks, Shelly Pro line can easily connect with, notify or control other compatible equipment or 3rd party automation system.

Smart actions that follow the Sunrise/Sunset

Shelly Pro line can switch on/off the power, depending on the Sunset/Sunrise hour, allowing dynamic control of the electrical equipment depending on the season.

Automation with weekly scheduling

Shelly Pro line allows you to set up to 20 actions based on your daily or weekly schedule with no need for an external hub or server.

Scripting for custom automation

Shelly Pro line fully supports mjS scripting, allowing customers to create their own features and functionalities.

Full compatibility

Shelly devices are compatible with Alexa, Google Home, Android and iOS. Together with the voice assistant, you can command Shelly devices using just your voice!

SMART HOME CONTROL, PERFECTED.

Shelly Smart Control -
one app to control your spaces, energy consumption, and expenses.

Specifications
SUPPORTED LOAD TYPES
HV LED lamps (Dimmable) 200 W
Dimmable electronic transformers 180 W
HV LED lamps (Non Dimmable) 110 W (On/Off mode)
Incandescent Light bulbs 200 W
HV halogen lamp 200 W
Wound transformer 200 VA
CFL 50 W
PHYSICAL
Dimensions (LxWxH) 94x19x69 mm / 3.70x0.75x2.71 in
Weight 75 g / 2.7 oz
Ambient temperature -20 °C to 40 °C / -4 °F to 104 °F
Humidity 30 % to 70 % RH
Max. altitude 2000 m / 6562 ft
Screw terminals max torque 0.4 Nm / 3.5 lbin
Conductor cross section 0,5 to 2,5 mm2 / 20 to 14 AWG (green connectors)0,5 to 1,5 mm2 / 20 to 16 AWG (blue connector) (solid, strand-ed, and bootlace ferrules)
Conductor stripped length 6 to 7 mm / 0.24 to 0.28 in (green connectors) 5 to 6 mm / 0.20 to 0.24 in (blue connector)
Power supply 110-240 V~ 50/60 Hz
Power consumption < 2 W
External protection max. 10 A, tripping characteristic B or C,
6 KA INTERRUPTING RATING, ENERGY LIMITING CLASS 3
Max. output power 200 W
Dimming type Leading edge, Trailing edge
Supported loads Incandescent
DIMMABLE LED AND CFL - DIMMABLE ELECTRONIC TRANSFORMERS
RF band 2400 - 2495 MHz
Max. RF power < 20 dBm
Wi-Fi protocol 802.11 b/g/n
Wi-Fi operational range (depending on local conditions) up to 50 m / 160 ft outdoors up to 30 m / 100 ft indoors
Bluetooth protocol 4.2
Bluetooth operational range (depending on local conditions) up to 30 m / 100 ft outdoors up to 10 m / 33 ft indoors
CPU ESP32-D0WDQ6
Flash 8 MB
Schedules 20
Webhooks (URL actions) 20 with 5 URLs per hook
Scripting Yes
MQTT Yes
