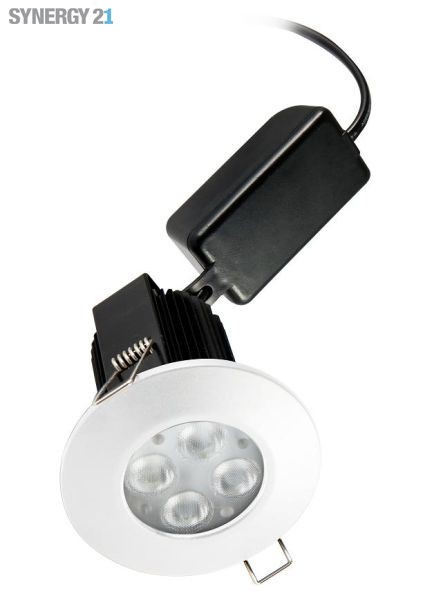

Synergy 21 LED recessed ceiling spot Prometheus mini-max fire nw
product pictures similar, may differ from the product description!
- stock: 0
- part no.: 101352
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-TOM00805
- EAN No.: 4038816979209
- weight: 0.7kg
- warranty: 60 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet ES
EU RoHS und REACH Erklärung
9 watt CREE recessed ceiling spotlight
with fire protection class B1 (flame retardant) and IP65... more
Product information "Synergy 21 LED recessed ceiling spot Prometheus mini-max fire nw"
9 watt CREE recessed ceiling spotlight
with fire protection class B1 (flame retardant) and IP65 (splash-proof)
Lamp body and radiator made of aluminium
Decorative ring in white, interchangeable,
additional rings in polished chrome, brushed stainless steel and graphite black available separately.
Watt: 4x2.2 Watt
Light colour: 4100K, neutral white
Voltage: 230 Volt
Luminous flux: 600 lm
Beam angle: 60°
LED chip: CREE LED
CRI: >80
Head diameter: 87 mm
Total height: 135 mm
Dimmable: Yes, phase cut-on / phase cut-off
Bolt circle: ø54mm => saw ø55 or ø56 to max ø80
Energy efficiency class: A
kWh/1000h: 9
Produktmerkmale:
| CC oder CV: | CV |
| CRI: | >80 |
| Dimmbar: | ja |
| Lichtfarbe: | neutralweiss |
| Lichtfarbe in Kelvin: | 4100 |
| Lumen: | 600 |
| Schutzklasse: | IP65 |
Informationen zur Energieeffizienz
| Energieeffizienz Klasse G | |
|---|---|
| kwh/1000h: | 9,00 |
| Lumen: | 605 |
| Watt: | 8,8 |
| Nennlebensdauer: | 35000 Std. |
| Schaltzyklen: | 50000 |
| Opt. Umgebungstemperatur: | 25 °C |
| EEK Label | Download |
