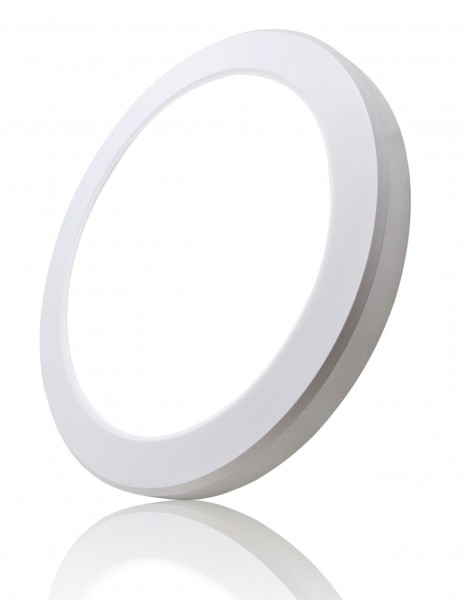

Synergy 21 LED light panel rund 18W 3000K/4000K/6500K CCT einstellbar TRIAC dimmbar
- stock: 0
- part no.: 217224
- vendor: Synergy 21 LED
- mnufacturer no.: S21-LED-O250098
- EAN No.: 4038816217226
- weight: 0.54kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads







The Synergy 21 LED Light Panel round impresses with its flexible installation, powerful light output and modern design. Thanks to its adjustable colour temperature (CCT) and TRIAC dimming, it can be used in a wide range of applications - from residential spaces to commercial premises.
Properties & advantages
-
Flexible mounting: Suitable for flush-mounted and surface-mounted installation
-
Variable installation size: Flush-mounted hole size adjustable from 65–205 mm
-
Removable frame available: Optionally in black (item no. 243732) or silver (item no. 243734)
-
Powerful & efficient: 18W with 120 LEDs for 1400–1620 lumens
-
Adjustable light colour: CCT adjustable from 3000K (warm white) to 6500K (daylight white), CRI >80 for natural colour rendering
-
Dimmability: Compatible with TRIAC dimmers for individual light control
-
Wide beam angle: 110° for uniform illumination
-
Modern design: Only 18 mm high, elegant frame in white
Technical data
-
Power consumption: 18 W
-
Luminous flux: 1400–1620 lm
-
Colour temperature (CCT): 3000K / 4000K / 6500K (adjustable)
-
Colour rendering index (CRI): >80
-
Frame colour: White
-
Dispersion angle: 110°
-
Working temperature: -20 °C to +40 °C
-
Power supply: AC 220–240 V, TRIAC dimmable
-
Outlet diameter: 220 mm
-
Installation diameter: 65–205 mm adjustable or surface mounting
-
Height: 18 mm
-
Energy consumption: 18 kWh/1000h
Application areas
Ideally suited for:
-
Living and dining areas
-
Floors & kitchens
-
Rooms & conference rooms
-
Hotels, shops & exhibition rooms
Interchangeable frames available in black and silver: 243732 + 243734
Produktmerkmale:
Abstrahlwinkel: | 120 |
CC oder CV: | CC |
CRI: | >80 |
Dimmbar: | TRIAC |
Grösse: | 230*15 |
LED - Gehäusefarbe: | weiß |
LED - Gehäuseform: | rund |
LED - Gehäusematerial: | AIuminum |
Lichtfarbe: | warmweiss |
Lichtfarbe in Kelvin: | 3000 |
Lumen: | 1400 |
Schutzklasse: | IP41 |
Watt: | 18 |
Energieeffizienz Klasse F | |
---|---|
kwh/1000h: | 18.00 |
Lumen: | 1400.00 |
Watt: | 18.00 |
Nennlebensdauer: | 35000.00 Std. |
Schaltzyklen: | 50000.00 |
Opt. Umgebungstemperatur: | 25.00 °C |
EEK Label | Download |
- Download CE
- Download Datenblatt
- Download Datenblatt_EN
- Download Datenblatt_ES
- Download Datenblatt_FR
- Download Handbuch
Produkt Video
Herst.Art.Nr.: S21-LED-O250085
Herst.Art.Nr.: S21-LED-O250086
