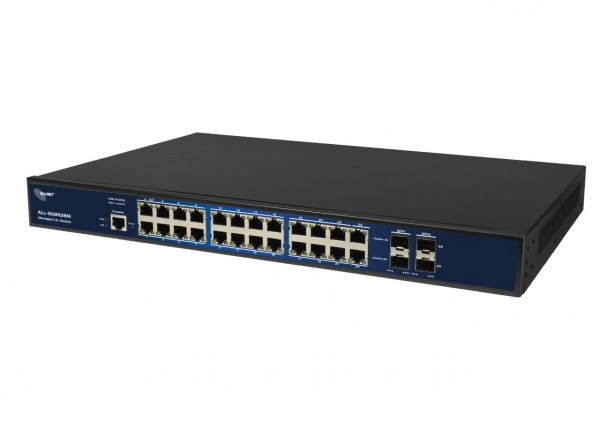

ALLNET Switch full managed 24 Port Gigabit / 24x LAN / 4x SFP / Fanless / 19" / "ALL-SG8626M"

ALL-SG8626M is a high performance managed Ethernet switch with 24*10/100/1000M BASE-T and 4*100/1000M BASE-X ( two shared combo). It supports powerful L2+ management function, such as QoS, DHCP snooping, STP/RSTP/MSTP, port aggregation etc, which makes it suitable for most SMB projects.

Solution for IPv6 Networking
With the IPv6/IPv4 dual stack and other management functions, ALL-SG8626M is the best choice for IP CCTV surveillance, VoIP and wireless solution providers to develop the IPv6 network. Meanwhile they help the SMBs to upgrade their network infrastructures to the IPv6 era without any extra investment.

Robust Layer 2 Features
ALL-SG8626M can be programmed for advanced switch management functions, such as port aggregation, Q-in-Q VLAN, Spanning Tree Protocol, QoS, bandwidth control, ERPS IGMP/MLD snooping etc. ALL-SG8626M allows the operation of a high-speed trunk combining multiple ports.

Powerful Security Functions
ALL-SG8626M provides a comprehensive access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

Enhanced Security and Traffic Control
ALL-SG8626M supports DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.

User-friendly Secure Management
For efficient management, ALL-SG8626M is an Ethernet managed switch, equipped with console, web and SNMP management interfaces. With management interface, ALL-SG8626M offers an easy-to-use, platform independent management and configuration facility. ALL-SG8626M supports SNMP and it can be managed via any management software based on the standard SNMP v1 or v2 Protocol. Meanwhile ALL-SG8626M offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, ALL-SG8626M offers  the remotely secure management by supporting SSH, SSL and SNMP v3 connection where the packet content can be encrypted at each session.

Intelligent SFP DDM Function
ALL-SG8626M support SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Fast Recovery Redundant Ring for Critical Network Applications

The ALL-SG8626M supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 20ms.

1588 Time Protocol for Industrial Computing Networks

The ALL-SG8626M is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.

Technische Daten:
