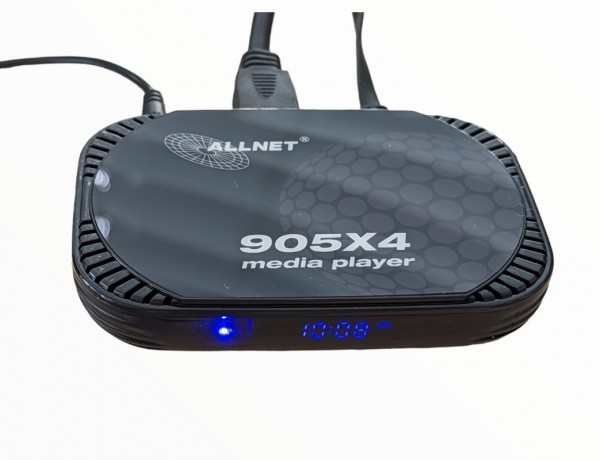

ALLNET Digital Signage Android 11 Player S905X4 Pro Mediaplayer mit Wifi6 &WPA3

ALLNET Digital Signage Android 11 Player S905X4 Pro Mediaplayer mit Wifi6 &WPA3
ALLNET Digital Signage Android 11 Player S905X4 Pro Mediaplayer mit Wifi6 &WPA3
ALLNET Digital Signage Android 11 Player S905X4 Pro Mediaplayer mit Wifi6 &WPA3
ALLNET Digital Signage Android 11 Player S905X4 Pro Mediaplayer mit Wifi6 &WPA3
ALLNET Digital Signage Android 11 Player S905X4 Pro Mediaplayer mit Wifi6 &WPA3
ALLNET Digital Signage Android 11 Player S905X4 Pro Mediaplayer mit Wifi6 &WPA3
product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Powerful Android Multimediaplayer S905X4 Pro Amlogic S905X4 4GB DDR4/32GB Storage, HDMI... more
Product information "ALLNET Digital Signage Android 11 Player S905X4 Pro Mediaplayer mit Wifi6 &WPA3"

Powerful Android Multimediaplayer S905X4 Pro

Amlogic S905X4 4GB DDR4/32GB Storage, HDMI 2.1, WIFI 6 2,4/5,8GHz @80MHz Bandwidth, 4K, USB 3.0

Our new Multimediaplayer is a small but very powerful player with Android 11. The player can be used as a TV Box or as a Digital Signage Mediaplayer. The connection to the Google Appstore provides access to millions of apps.

The player can be operated with displays up to 4K resolution on HDMI 2.0 certified devices and cables. A native rotation of the display is possible, allowing the content to be played in portrait mode. With 4GB DDR4 RAM, the player has good performance in video playback and the storage runs less full than with 2GB variants. The 32GB storage offers enough space to store Digital Signage content offline. A digital SPDIF audio output provides the optimal cinema experience via a cinema sound system. The control can be done via an optional keyboard and mouse or via the remote control included in the delivery.

With WIFI 6 and WPA3 encryption, this player is up to date and equipped with sufficient speed and security.

Download Firmware and OTA Update: https://fileshare.allnet.de/s/ssIV1H0N36JVo8D

Highlights:

  • ALLNET Digital Signage Android Player S905X4 Pro
  • Amlogic S905X4 Quad Core ARM Cortex-A55 CPU ARM G31 MP2 GPU
  • HDMI compatible to 2.1 to support maximum 4K@60fps output (HDCP2.2)
  • DDR4 4GB/ EMMC 32GB
  • Android 11
  • 1*RJ45 1000M (Gigabit network)
  • WLAN 2,4/5,8GHz a/b/g/n/ac/ax
  • Bluetooth 4.0 (2,4GHz)
  • USB-C 2.0 OTG + 1*USB 3.0 host
  • SPDIF
  • Touchscreen HID driver integrated, enables the use of touchscreens
ALLNET Mediaplayer S905X4
CPU Amlogic S905X4 64-bit quad core ARM® Cortex™ A55 CPU
GPU G31™ MP2 GPU processor
Memory DDR3: 4GB
Flash eMMC:32GB (Option: 64GB/128GB MOQ 500Stück )
WiFi IEEE 802.11 a/b/g/n/ac ;  2.4G / 5G
Bluetooth  BT ;  Support Voice Remote
Moudle Plastic : Black  Color
I/O 1*HDMI HDMI 2.1 ,Support HDMI CEC, Dynamic HDR and and 8Kx4K@24 max resolution output
1*AV OUT 480i/576i standard definition output
2*USB 1 * USB 3.0 ; 1*USB 2.0
1*IR Reciver Remote Receiver Connect
1*RJ45 Ethernet Interface;Support 10/100/1000M
1*TF CARD Support 4GB/8GB/16GB/32GB/64GB
Power DC 5V/2A;DC PLUG 5,5mm
Software
OS Android 11.0
Video
  • Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders
  • Support multi-video decoder up to 4x1080P@60fps
  • Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding
  • Video/Picture Decoding/AV1 MP-10@L5.1 4Kx2K@60fps
  • VP9 Profile-2 up to 8Kx4K@24 fps
  • H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps
  • VS2-P2 Profile up to 8Kx4K@24 fps
  • H.264 AVC HP@L5.1 up to 4Kx2K@30fps
  • MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
  • WMV/VC-1 SP/MP/AP up to 1080P@60fps
  • AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
  • MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
  • MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
  • RealVideo 8/9/10 up to 1080P@60fps
  • Multiple language and multiple format sub-title video support
  • MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
  • Supports JPEG thumbnail, scaling, rotation and transition effects
  • Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats
Audio Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Low-power VAD
Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output
3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch
Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs
Built-in stereo audio DAC
Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM
Image HD JPEG. BMP. GIF. PNG. TIF
Language English French German Spanish Italian etc multilateral languages
Applications
Apps Apps download freely form android market. amazon app store etc.
Medium Local Media playback,Support HDD, U Disk ,TF Card
Packing Product dimension 105*20
Qty per unit packing 1pc
Unit packing: (LxWxH) (MM)
Unit packing (G.W.) 0.4KG
Qty per export carton 20PCS
Export carton (WxHxL) (MM)
Export carton (G.W.) 8KG
Accessories :
1. HDMI cable  *1
2. IR Remote *1 (RC-05*
3. User Manual *1
4. Package box  *1
5. Power adapter  *1
