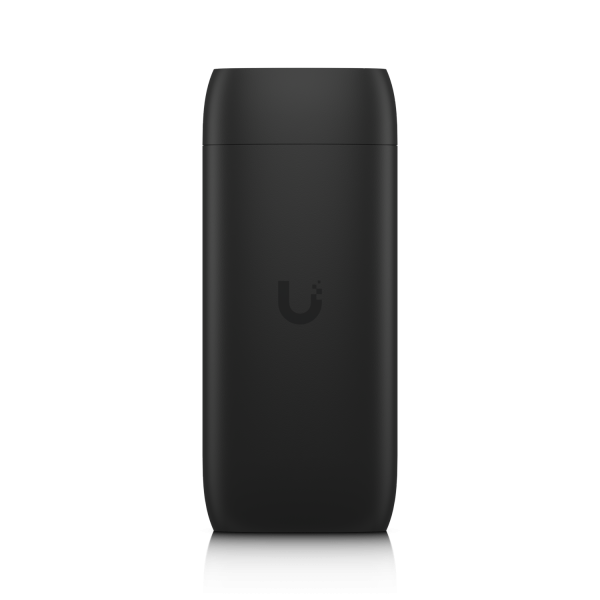

Ubiquiti UniFi Display Cast Pro • 4K • PoE • 1x GbE • USB-C • UC-Cast-Pro
product pictures similar, may differ from the product description!
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 234107
- vendor: Ubiquiti
- mnufacturer no.: UC-Cast-Pro
- weight: 0.26kg
- warranty: 12 months
- Do you have any questions concerning this product?
EU RoHS und REACH Erklärung
Managed digital signage player for HDMI displays with media content playback, web mode and... more
Product information "Ubiquiti UniFi Display Cast Pro • 4K • PoE • 1x GbE • USB-C • UC-Cast-Pro"
Managed digital signage player for HDMI displays with media content playback, web mode and support for USB-C peripherals.
Present media content with a resolution of up to 4K, websites and YouTube videos on any HDMI-compatible display
Create multimedia playlists and dynamic digital signage layouts with UniFi Connect
Automatically switch the display on/off with HDMI CEC
Keyboard and mouse control via USB-C
PoE input or power supply via USB-C adapter
Connected with UniFi WiFi Auto-Link or Ethernet
Note: USB-C power adapter and HDMI cable not included. Does not support Protect camera streaming. Use Protect Viewport, to view Protect camera feeds on an HDMI display.
Technical specifications
| Mechanical | |
|---|---|
| Maße | Without bracket: 123 x 52 x 31 mm (3.5 x 2.1 x 1.2 inches) With holder: 125.1 x 56.3 x 40.8 mm (3.6 x 2.1 x 1.4 inches) |
| Weight | Without mount: 240 g (5.8 oz) With holder: 260 g (9.2 oz) |
| Hardware | |
| Processor | Octa-core CPU, including (2) ARM® Cortex®-A78 and (6) ARM® Cortex®-A55 Integrated Mali-G57 GPU |
| Memory | Memory: 32 GB RAM: 8 GB |
| Performance method | USBC 5 V DC voltage, 3 A PoE 48 V DC voltage, 0.35 A |
| Input/output | (1) GbE RJ45 port (power input) (2) USB Type-C port (power input) |
| WLAN standards | 802.11 a/b/g/n/ac/ax |
| Connectivity | WLAN 2.4 G, bandwidth 20/40 MHz WLAN 5G, bandwidth 20/40/80 MHz |
| Operating ambient temperature | 0 to 40 °C (32 to 104 °F) |
| Humidity during operation | 20 to 90 % non-condensing |
| Certifications | CE, FCC, IC and Wi-Fi CERTIFIED |
| Software | |
| Administrative application | UniFi Connect: Version 3.14.6 and higher UniFi Connect iOS™ and Android™: Version 2.18.1 and later |
