ALLNET Antenne 868MHz 14dbi Antenne (N-Female) YAGI ANT-868
- stock: 0
- part no.: 208821
- vendor: ALLNET
- mnufacturer no.: ANT-868-14dbi-Yagi
- EAN No.: 4038816208828
- weight: 1.4kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
data sheet FR
EU RoHS und REACH Erklärung
ALLNET Antennas 868MHz 14dbi Antennas (N-Female) YAGI ANT-868-14dbi-Yagi LoRA HELIUM IoT
Highlights:

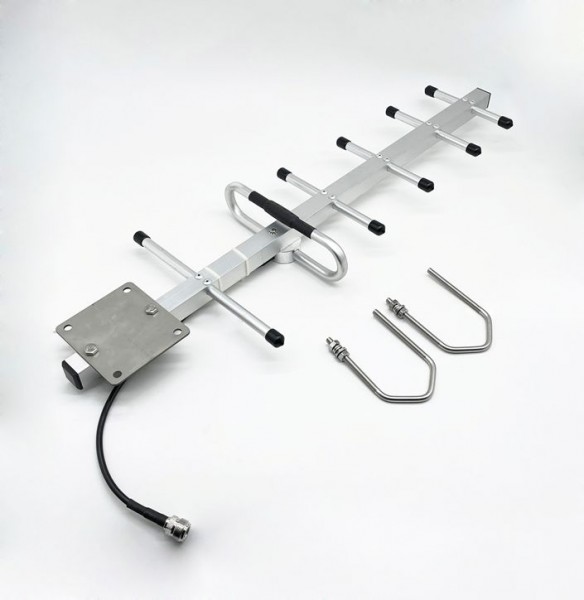

- 860~896MHz Yagi Antenna 14 Elements
- Gain: 14dbi (see table for more details)
- Beam angle: 33°/30° (see table for more details)
- Impedance: 50 Ohm
- VSWR: <=1.4
- Connector: N-Type Female (suitable connection cables can be found in the accessories)
- Dimension: Length = 1297x202x55mm
- Windspeed: 200km/h
- Temperature: -45°C ~ +75°C
- Mounting: Mast mounting
- Package contents: Antenna and mounting accessories
- Ideal for LoRA / Helium Network / Helium Miner / IoT terminals / 868MHz systems etc.
Yagi antennas belong to the group of longitudinal radiators and use radiation-excited elements. Yagi antennas consist of a group of active and passive (parasitic) elements which produce a common strongly pronounced directional pattern through mutual co-coupling. They often consist of only one fed element with a number of parasitic radiation-fed elements.
Heavy Duty Construction. High gain for excellent point to point. Narrow beamwidth and High F/B ratio minimize other system interference
Technical Details:
|
Model |
ANT-868-10dbi-Yagi |
ANT-868-12.5dbi-Yagi |
ANT-868-14dbi-Yagi |
|
Electrical Specification |
WideBand: 806-896MHz |
||
|
Polarization |
Vertical Polarized / Horizontal Polarized |
||
|
Max Gain |
10dbi |
12.5dbi |
14dbi |
|
H Beamwidth (-3dB, V-Pol) |
73° ± 7° |
42° ± 5° |
33° ± 5° |
|
E Beamwidth |
55° ± 5° |
39° ± 3° |
30° ± 5° |
|
VSWR |
<1.4 |
||
|
Nominal Impedance |
50 ohm |
||
|
F/B Ratio |
>15dB |
>17dB |
>20dB |
|
Max Power |
100watts |
||
|
Mechanical Specification |
|||
|
Connector |
N-Female |
||
|
Radome |
Fiberglass, Dia 20mm |
||
|
Color |
White/Grey |
||
|
Dimension |
582 * 202 * 55mm |
941 * 202 * 55mm |
1297 * 202 * 55mm |
|
Weight incl Mount Kit |
0.7kg |
0.9kg |
1.2kg |
|
Max windload |
200km/h, 125mph |
||
|
Working Temperature Range |
-45°C to +75°C |
||
|
Storage Temperature |
-50°C to +75°C |
||
Antenna Test Data:
Mechanical Dimmension:
