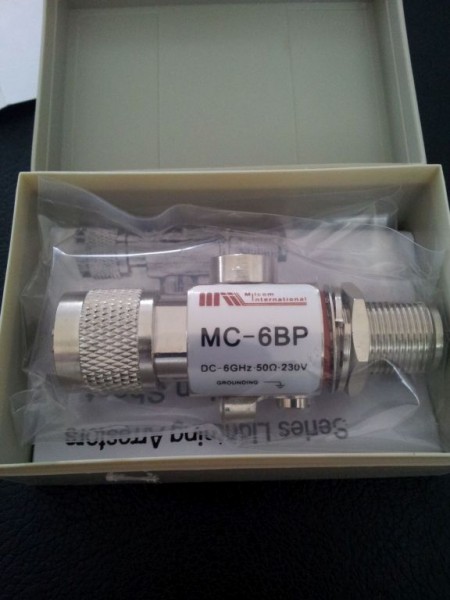

ALLNET Antenna / Lightning protection, 5,8GHz N-Type Bu/St.
- stock: 0
- part no.: 78202
- vendor: ALLNET
- mnufacturer no.: MC-6BP
- EAN No.: 8223350660386
- weight: 0.148kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
EU RoHS und REACH Erklärung
Highlights:
- Reliable Performance from DC ~ 6 GHz
- Bi-Directional Protection / Protector will pass DC
- High Quality Construction
- Easily Replaced Gas Tube Element
- Multi-Strike Capability
The AL6-NMNFBW-9 is a very high-performance gas discharge tube suppressor featuring wide-band operation up to 6 GHz. The unit features a bulkhead N-Female connector with a rubber "O"-ring seal for mounting through an enclosure wall or using the optional stainless steel mounting bracket.
Due to its superior RF performance this unit is ideal for IEEE 802.11a and other 5.2 - 5.8 GHz ISM and UNII applications, as well as 3.5 GHz WLL applications. Since this protector will pass DC it is suitable for applications where DC is carried through the coax cable such as remote amplifiers and LNA's.
Both connector ports of this unit are equally protected. This provides protection no matter which way it is installed. Either port can face the antenna and either port can face the equipment.
The unit's replaceable gas tube element, multi-strike capability and fast response time make it suitable for a wide range of applications. A ground lug and terminal is provided directly on the lightning protector housing, which provides superior grounding.
Technical Details:
|
Frequency Range |
0 – 6 GHz |
|
VSWR |
1:1.2 Max (0-6 GHz) |
|
Insertion Loss |
0.6 dB Max (0-6 GHz) |
|
Impedance |
50 Ohm |
|
Gas Tube Breakdown Voltage |
90 V ± 20% |
|
Connectors |
N-Male to Bulkhead N-Female |
|
Connector Body Material |
Nickel Plated Brass |
|
Body Material |
Nickel Plated Brass |
|
Pin Material |
Gold Plated Brass |
|
“O” Ring Material |
Rubber |
|
Dimensions (max) |
2.6 x 0.9 x 1.2 in (68 x 23 x 31 mm) |
|
Weight |
0.25 Ibs. (0.11 kg) |
