ALLNET Antennas 868MHz 12.5dbi Antenna (N-Fem.) YAGI ANT-868

Preview: ALLNET Antennas 868MHz 12.5dbi Antenna (N-Fem.) YAGI ANT-868

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Downloads

EU RoHS und REACH Erklärung

stock: 0
part no.: 208619
vendor: ALLNET
mnufacturer no.: ANT-868-12.5dbi-Yagi
EAN No.: 4038816208613
weight: 1kg
warranty: 24 months
Do you have any questions concerning this product?

ALLNET Antennas 868MHz 12.5dbi Antennas (N-Female) YAGI ANT-868-12.5dbi-Yagi LoRA HELIUM IoT... more

Close menu

Product information "ALLNET Antennas 868MHz 12.5dbi Antenna (N-Fem.) YAGI ANT-868"

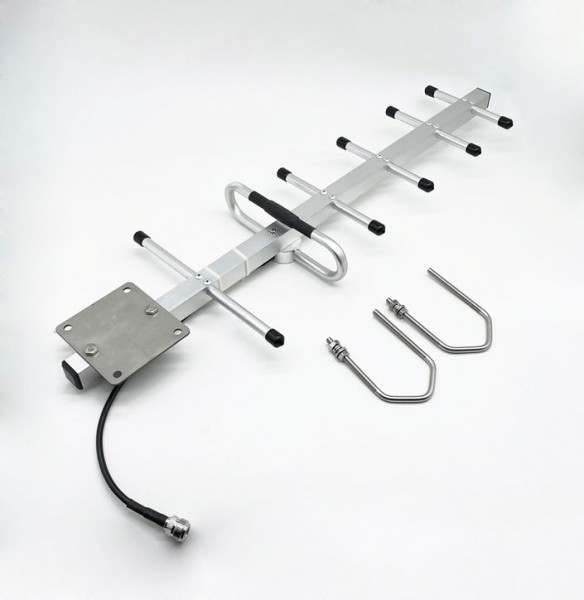

ALLNET Antennas 868MHz 12.5dbi Antennas (N-Female) YAGI ANT-868-12.5dbi-Yagi LoRA HELIUM IoT

Highlights:

860~896MHz Yagi Antenna 6 Elements
Gain: 12.5dbi (See table for more details)
Coverage angle: 42°/39° (see table for more details)
Impedance: 50 Ohm
VSWR: <=1.4
Connector: N-type female (suitable connection cables can be found in the accessories)
Dimension: Length = 941x202x55mm
Windspeed: 200km/h
Temperature: -45°C ~ +75°C
Mounting: Mast mounting
Package contents: Antenna and mounting accessories
Ideal for LoRA / Helium Network / Helium Miner / IoT terminals / 868MHz systems etc.

Yagi antennas belong to the group of longitudinal radiators and use radiation-excited elements. Yagi antennas consist of a group of active and passive (parasitic) elements which produce a common strongly pronounced directional pattern through mutual co-coupling. They often consist of only one fed element with a number of parasitic radiation-fed elements.

Heavy Duty Construction. High gain for excellent point to point. Narrow beamwidth and High F/B ratio minimize other system interference

Technical Details:

Model	ANT-868-10dbi-Yagi	ANT-868-12.5dbi-Yagi	ANT-868-14dbi-Yagi
Electrical Specification	WideBand: 806-896MHz
Polarization	Vertical Polarized / Horizontal Polarized
Max Gain	10dbi	12.5dbi	14dbi
H Beamwidth (-3dB, V-Pol)	73° ± 7°	42° ± 5°	33° ± 5°
E Beamwidth	55° ± 5°	39° ± 3°	30° ± 5°
VSWR	<1.4
Nominal Impedance	50 ohm
F/B Ratio	>15dB	>17dB	>20dB
Max Power	100watts
Mechanical Specification
Connector	N-Female
Radome	Fiberglass, Dia 20mm
Color	White/Grey
Dimension	582 * 202 * 55mm	941 * 202 * 55mm	1297 * 202 * 55mm
Weight incl Mount Kit	0.7kg	0.9kg	1.2kg
Max windload	200km/h, 125mph
Working Temperature Range	-45°C to +75°C
Storage Temperature	-50°C to +75°C

Antenna Test Data:

Mechanical Dimmension:
