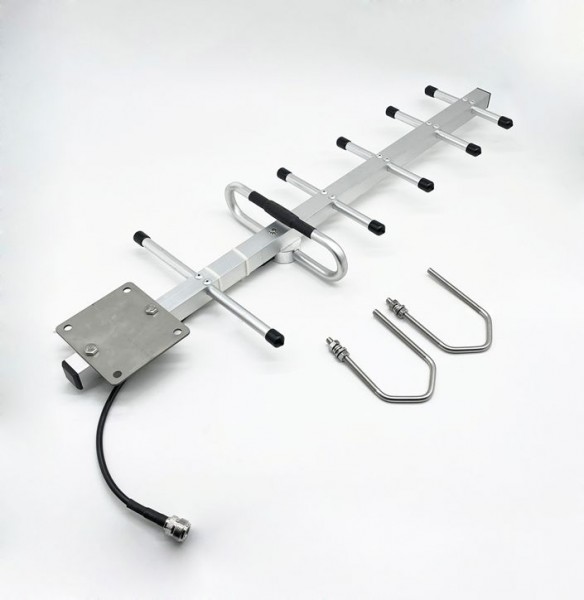

ALLNET Antenna 868MHz 10dbi Antenna (N-Fem.) YAGI ANT-868-10
- stock: 0
- part no.: 208181
- vendor: ALLNET
- mnufacturer no.: ANT-868-10dbi-Yagi
- EAN No.: 4038816117281
- weight: 1kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE data sheet EN data sheet ES data sheet FR EU RoHS und REACH ErklärungALLNET Antenna 868MHz 10dbi Antenna (N-Female) YAGI ANT-868-10dbi-Yagi LoRA HELIUM IoT
Highlights:
- 860~896MHz Yagi Antenna 6 Elements
- Gain: 10dbi (See table for more details)
- Coverage angle: 73°/55° (see table for more details)
- Impedance: 50 Ohm
- VSWR: <=1.4
- Connector: N-type female (suitable connection cables can be found in the accessories)
- Dimension: Length = 582x202x55mm
- Windspeed: 200km/h
- Temperature: -45°C ~ +75°C
- Mounting: Mast mounting
- Package contents: Antenna and mounting accessories
- Ideal for LoRA / Helium Network / Helium Miner / IoT terminals / 868MHz systems etc.
Yagi antennas belong to the group of longitudinal radiators and use radiation-excited elements. Yagi antennas consist of a group of active and passive (parasitic) elements which produce a common strongly pronounced directional pattern through mutual co-coupling. They often consist of only one fed element with a number of parasitic radiation-fed elements.
Heavy Duty Construction. High gain for excellent point to point. Narrow beamwidth and High F/B ratio minimize other system interference
Technical Details:
Model |
ANT-868-10dbi-Yagi |
ANT-868-12.5dbi-Yagi |
ANT-868-14dbi-Yagi |
Electrical Specification |
WideBand: 806-896MHz |
||
Polarization |
Vertical Polarized / Horizontal Polarized |
||
Max Gain |
10dbi |
12.5dbi |
14dbi |
H Beamwidth (-3dB, V-Pol) |
73° ± 7° |
42° ± 5° |
33° ± 5° |
E Beamwidth |
55° ± 5° |
39° ± 3° |
30° ± 5° |
VSWR |
<1.4 |
||
Nominal Impedance |
50 ohm |
||
F/B Ratio |
>15dB |
>17dB |
>20dB |
Max Power |
100watts |
||
Mechanical Specification |
|||
Connector |
N-Female |
||
Radome |
Fiberglass, Dia 20mm |
||
Color |
White/Grey |
||
Dimension |
582 * 202 * 55mm |
941 * 202 * 55mm |
1297 * 202 * 55mm |
Weight incl Mount Kit |
0.7kg |
0.9kg |
1.2kg |
Max windload |
200km/h, 125mph |
||
Working Temperature Range |
-45°C to +75°C |
||
Storage Temperature |
-50°C to +75°C |
Antenna Test Data:
Mechanical Dimmension:
