ALLNET Point-to-Point Coax 8 Port Master Chassis/Amplifier EOC 100 zbh. EOC G.hn flush-mounted box/through box "ALL-GHN108S-100-UP socket
- stock: 0
- part no.: 221230
- vendor: ALLNET
- mnufacturer no.: ALL-GHN108S-100-UP-Dose
- weight: 1kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE data sheet EN data sheet ES data sheet FR EU RoHS und REACH Erklärung
The EOC 100MHz flush-mounted socket "ALL-GHN108S-100-UP-Dose" is a C-through socket with... more
Product information "ALLNET Point-to-Point Coax 8 Port Master Chassis/Amplifier EOC 100 zbh. EOC G.hn flush-mounted box/through box "ALL-GHN108S-100-UP socket"

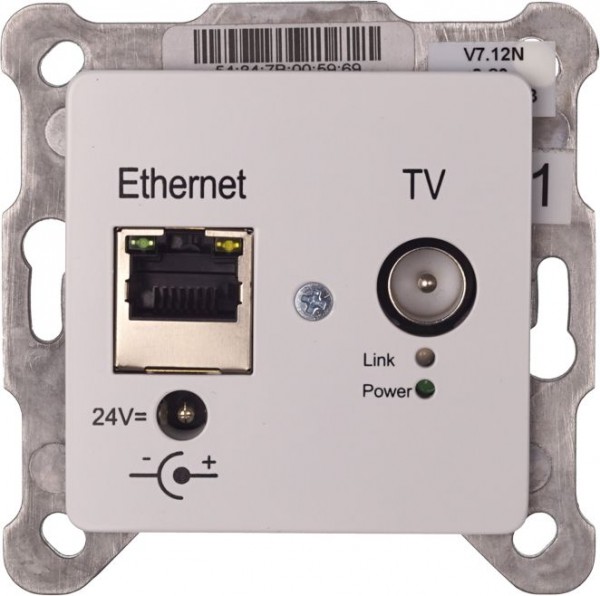

The EOC 100MHz flush-mounted socket "ALL-GHN108S-100-UP-Dose" is a C-through socket with integrated Gbit LAN interface.
- A coaxial cable is used for simultaneous transmission of DVB-C (108 MHz - 850 MHz) and network data (<108 MHz).
- Internet/network data can be used via the Gbit Ethernet connection.
- The coax socket provides a broadband cable signal (108 MHz to 860 MHz) and can be used with a standard receiver.
- The TV signal is output via the coaxial socket, the network data via the RJ45 socket.
- The networking of the individual flush-mounted boxes/G.hn modules takes place automatically.
- The EOC 100 "ALL-GHN108S-100-UP-socket" can be operated via remote power supply by an ALL-GHN108M-Coax-100 or with a 24V/1A power supply unit.
- 4 subsequent EOC100 "ALL-GHN108S-100-UP-sockets" can be supplied.
- The EOC 100 "ALL-GHN108S-100-UP-socket" can be installed in a single flush-mounted box as well as in a multiple flush-mounted box.
- Each EOC 100 "ALL-GHN108S-100-UP socket" can exchange data with any other flush-mounted socket.
- Wiring/connection of the EOC flush-mounted boxes to the ALL-GHN108M-Coax-100 are described in the.
Recommended application/Use Case:
Building upgrade with Gigabit with existing coaxial cabling and a small budget:
- Home users
- Small company networks
- Hotels
- Hospitals
- Sanatoriums
- Retirement homes
- Renovation of old buildings
Comparison of the Transmission Standard
Standard | G.Hn via COAX | WLAN | Powerline | DOCSIS 3.0/3.1 over coax |
Net data rate | 1.5 Gbit | 240 Mbit - Wi-Fi 42 600 Mbit - Wi-Fi 52 800 Mbit - Wi-Fi 62 |
400 Mbit Powerline AV12002 400 Mbit Powerline AV20002 |
1600 Mbit/s download3 240 Mbit/s upload3 |
Acquisition cost | medium | Wi-Fi4 devices cheap Wi-Fi5 devices medium Wi-Fi6 devices expensive |
AV1200 devices cheap AV2000 devices medium |
high requires DOCSIS - CMTS server |
Power consumption | up to 4W/Gbit | 6 W/Gbit Access point included |
up to 6 W/Gbit | >8 W/Gbit server included |
Susceptibility to interference |
not susceptible to | yes, by many users | yes, by electrical consumers | not susceptible to |
Eavesdropping security | yes | WPA3 yes WPA2 no |
yes | yes |
Visual impact | small disappears in the wall |
medium router stands around |
large protrudes from the wall socket |
medium modem stands around |
2 Source: https://de.wikipedia.org/wiki/Datendurchsatz
3 Source: https://de.wikipedia.org/wiki/Data_Over_Cable_Service_Interface_Specification
Technische Daten:
- C-throughput in-wall socket
- Can be integrated into single outlets and multiple outlets
- Frequency range 2 – 80 MHz
- Network standard : G.Hn
- Data rate Gross: 1000 Mbps
- Data rate Net: 700 Mbps
- Attenuation 300 – 860 MHz: -2 dB (18db coupling)
- Attenuation 300 – 860 MHz: -3 dB (12db coupling)
- Coupling: 16 dB (other values on request)
- Hardware encryption : AES 128-bit
- Quality of Service: VLAN/TOS/Packet Classifier/Virtually perfect transmission with IPTV
Only suitable for DVB-C wiring
Satellite wiring is not supported
Power Consumption EOC 100
Datarate net | Power Consumption |
50 Mbit/s | 2.06 Watt |
100 Mbit/s | 2.27 Watt |
200 Mbit/s | 2.47 Watt |
300 Mbit/s | 2.68 Watt |
400 Mbit/s | 2.81 Watt |
500 Mbit/s | 2.90 Watt |
750 Mbit/s | 3.05 Watt |
