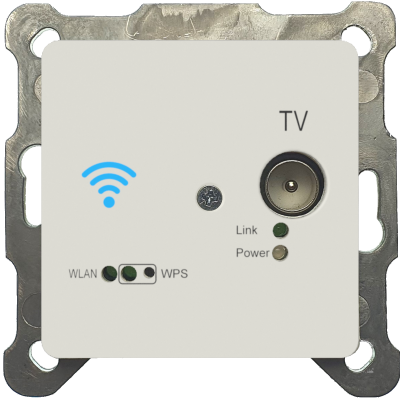

ALLNET Point-to-Point Coax 8 Port Master Chassis/Amplifier EOC 200 zbh. EOC G.hn WIFI flush-mounted box/pass-through box "ALL-GHN108S-200-UP socket

product pictures similar, may differ from the product description!

net price plus shipping costs

This product is not available at the moment. Delivery time upon request.

Call us Mail us

EU RoHS und REACH Erklärung

stock: 0
part no.: 221627
vendor: ALLNET
mnufacturer no.: ALL-GHN108S-200-WIFI
weight: 1kg
warranty: 24 months
Do you have any questions concerning this product?

The EOC WLAN is an in-wall socket which supports the simultaneous transmission of Internet and... more

Close menu

Product information "ALLNET Point-to-Point Coax 8 Port Master Chassis/Amplifier EOC 200 zbh. EOC G.hn WIFI flush-mounted box/pass-through box "ALL-GHN108S-200-UP socket"

The EOC WLAN is an in-wall socket which supports the simultaneous transmission of Internet and Cable TV on an existing coax cable network.

The EOC WLAN in-wall socket is a "C"able pass-through socket with 2 antennas (2T2R) and integrated 2.4 GHz WiFi (Wi-Fi 4 2x2 802.11n).

The coax socket provides a broadband cable signal in the range of 108 - 860 MHz, which can be used with a standard receiver.

The TV signal is provided via the TV socket, the network dates are transmitted via WLAN.

Interconnection of individual in-wall sockets is done automatically.

The EOC WLAN is being powered via remote supply by an ALL-GHN108M-Coax-200 . Therefore, it can supply four subsequent EOC 100 and/or EOC 200 and/or EOC WLAN.

The EOC WLAN can be installed in a single flush-mounted box as well as in a multiple flush-mounted box.
Each EOC WLAN can exchange data with any other flush-mounted box.

Recommended application:

Building upgrade with gigabit Ethernet with existing coaxial cabling and on a limited budget.

Home users
Small company networks
Hotels
Hospitals
Sanatoriums
Retirement homes
Renovation of old buildings

Coax

C-throughput in-wall socket
Can be integrated into single outlets and multiple outlets
Frequency range 2 – 199 MHz
Network standard: G.Hn
Data rate Gross: 2000 Mbps
Data rate Net: 1700 Mbps
Attenuation 300 – 860 MHz: -2 dB (16 db coupling)
Attenuation 300 – 860 MHz: -3 dB (10 db coupling)
Coupling: 10 db or 16 dB
Hardware encryption : AES 128-bit
Quality of Service: VLAN/TOS/Packet Classifier/Virtually perfect transmission with IPTV
Remote service: TR-069 remote management (option)

Only suitable for DVB-C wiring
Satellite wiring is not supported

Technischen Daten:

Software:	openWRT 21.02.0
CPU:	MIPS24KEc 580 MHz
RAM:	64 MB RAM
Flash:	32 MB
Crypto:	AES 128/256
Wi-Fi4:	Datenrate 2x 150 Mbit/s (brutto) 2x2 802.11n
Freqency:	2.4 GHz
Antenna:	2T2R
