ALLNET Point-to-Point Coax 8 Port Master Chassis/Amplifier EOC 100 zbh. EOC G.hn WIFI flush-mounted box/pass-through box "ALL-GHN108S-100-WIFI
net price plus shipping costs
This product is not available at the moment. Delivery time upon request.
- stock: 0
- part no.: 221231
- vendor: ALLNET
- mnufacturer no.: ALL-GHN108S-100-WIFI
- weight: 1kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE data sheet EN data sheet ES data sheet FR EU RoHS und REACH ErklärungAn existing coaxial cable is used for simultaneous transmission of DVB-C and network data.

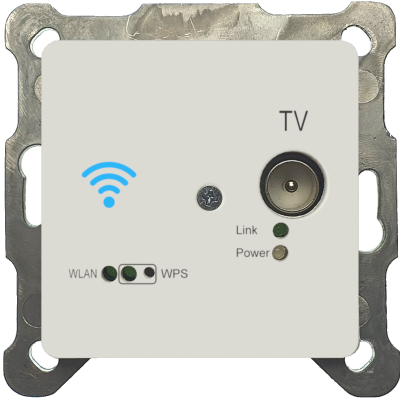

The EOC WLAN flush-mounted socket "ALL-GHN108S-100-WIFI" is a C-through socket with integrated 2.4 GHz WLAN (Wi-Fi 4 2x2 802.11n) and has 2 antennas (2T2R).
The coax socket provides a broadband cable signal (108 - 860 MHz) and can be used with a standard receiver.
The TV signal is output via the coax socket, the network data via WLAN.
The networking of the individual flush-mounted boxes/G.hn modules takes place automatically.
The EOC WLAN "ALL-GHN108S-100-WIFI" is operated via remote power supply by a master/amplifier "ALL-GHN108M-Coax-100". It can then power 4 subsequent EOC 100 "ALL-GHN108S-100-UP-Dose" or EOC WIFI ALL-GHN108S-100-WIFI.
The EOC WLAN "ALL-GHN108S-100-WIFI" can be installed in a single flush-mounted box or in a multiple flush-mounted box. Each EOC WLAN "ALL-GHN108S-100-WIFI" can exchange data with any other flush-mounted box.
Recommended application:
Building upgrade with gigabit Ethernet with existing coaxial cabling and on a limited budget.
- Home users
- Small company networks
- Hotels
- Hospitals
- Sanatoriums
- Retirement homes
- Renovation of old buildings
Coax
- C-throughput in-wall socket
- Can be integrated into single outlets and multiple outlets
- Frequency range 2 – 199 MHz
- Network standard: G.Hn
- Data rate Gross: 2000 Mbps
- Data rate Net: 1700 Mbps
- Attenuation 300 – 860 MHz: -2 dB (16 db coupling)
- Attenuation 300 – 860 MHz: -3 dB (10 db coupling)
- Coupling: 10 db or 16 dB
- Hardware encryption : AES 128-bit
- Quality of Service: VLAN/TOS/Packet Classifier/Virtually perfect transmission with IPTV
- Remote service: TR-069 remote management (option)
-
Coax
- C-throughput in-wall socket
- Can be integrated into single outlets and multiple outlets
- Frequency range 2 – 199 MHz
- Network standard: G.Hn
- Data rate Gross: 2000 Mbps
- Data rate Net: 1700 Mbps
- Attenuation 300 – 860 MHz: -2 dB (16 db coupling)
- Attenuation 300 – 860 MHz: -3 dB (10 db coupling)
- Coupling: 10 db or 16 dB
- Hardware encryption : AES 128-bit
- Quality of Service: VLAN/TOS/Packet Classifier/Virtually perfect transmission with IPTV
- Remote service: TR-069 remote management (option)
Only suitable for DVB-C wiring
Satellite wiring is not supported
Technischen Daten:
Software: | openWRT 21.02.0 |
CPU: | MIPS24KEc 580 MHz |
RAM: | 64 MB RAM |
Flash: | 32 MB |
Crypto: | AES 128/256 |
Wi-Fi4: | Datenrate 2x 150 Mbit/s (brutto) 2x2 802.11n |
Freqency: | 2.4 GHz |
Antenna: | 2T2R |
Herst.Art.Nr.: ALL-GHN108M-Coax-100
Herst.Art.Nr.: ALL-GHN108-100-Modul
Herst.Art.Nr.: ALL-GHN108S-100-UP-Dose
