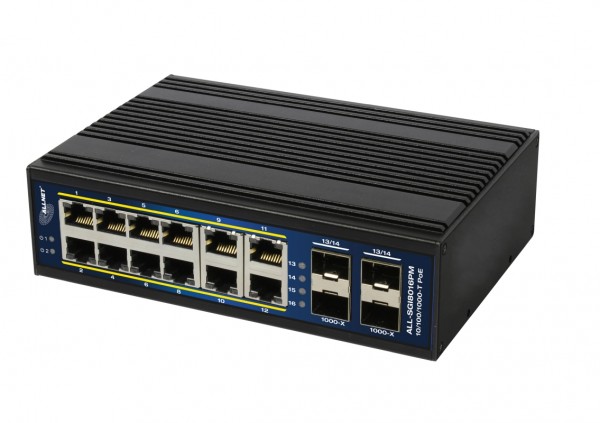

ALLNET Switch industrial smart managed Layer2+ 16 Port GbE • PoE Budget 360W • 12x PoE+ • 4x SFP • Fanless • DIN • ALL-SGI8016PM
- stock: 0
- part no.: 189896
- vendor: ALLNET
- mnufacturer no.: ALL-SGI8016PM
- EAN No.: 4038816098894
- weight: 0.42kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity data sheet DE data sheet EN data sheet ES data sheet FR manual Handbuch EN EU RoHS und REACH ErklärungHighlights:
- With 12*10/100/1000M PoE downlink ports, 4*1000M SFP ports;
- Support PoE power each up to 30W;
- Support L3 management, such as OSPF, RIP, QoS, VLAN, MSTP, Multi-broadcast, ports management and PoE management;
- 6KV surge protection, 8KV contact /15KV air ESD protection;
- Support working temperature -40°C ~+75°C.
ALLNET ALL-SGI8016PM is a professional yet affordable industrial L3 PoE switch with 16 Gigabit ports, supporting up to 12*10/100/1000M PoE downlink ports and 4* 1000M SFP ports. The 12*10/100/1000M ports support PoE+ and comply with IEEE 802.3af/at standard, PoE power per port up to 30W.
It supports L3 management such as OSPF, RIP, QoS, VLAN, MSTP, multi-broadcast, port management and PoE management, and supports 6KV surge protection, 8KV contact/15KV air ESD protection. The wall, desktop and din-rail installation is reliable and durable, and can be used in security network video surveillance, network engineering and other occasions.
Technical Details:
Parameter |
Specifications |
Power supply |
Powered by power adaptor |
Range of voltage |
2*DC 48~57V, redundancy power supply |
Consumption |
Self consumption<20W |
Downlink ports |
10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at) |
Uplink ports |
Ports 13~16 1000M SFP slots |
Cable and distance |
Use cat5e/6,100m max |
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3z |
Switch fabric |
32Gbps |
Though put |
23.8Mpps |
Buffer |
4M |
MAC address table |
16K |
Indicator |
Power: 2 *red ; Uplink 13~16: green LEDs indicate Link/Act Downlink 1~12: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE |
Protection |
Surge: 6KV, standard: IEC61000-4-5 ESD: 8KV: contact/15KV: air, standard:IEC61000-4-2 |
Working temperature |
-40°C~+75°C |
Storage temperature |
-40°C~+85°C |
Humidity |
0~95%(No condensation) |
Dimension(L×W×H) |
165 mm×114 mm×46mm |
Material |
Metal |
Colour |
Black |
Net-weight |
530g |
L2 Features Port configuration |
Auto-negotiation |
Flow Control |
|
Port Mirror |
|
L2 Features Link Aggregation |
Traffic statistics |
Static link aggregation |
|
LACP |
|
Algorithm based on Source/Destination MAC |
|
Algorithm based on Source/Destination IP |
|
8 groups |
|
8 ports per group |
|
L2 Features MAC Table |
Aging Time |
Static MAC address |
|
Dynamic MAC address management |
|
L2 Features VLAN |
4K Active VLANs |
4K VID |
|
802.1Q Tag VLAN |
|
Port VLAN |
|
Protocol VLAN |
|
MAC VLAN |
|
Management VLAN |
|
Voice VLAN |
|
Q-in-Q |
|
Private VLAN |
|
GARP/GVRP |
|
L2 Features ACL |
64 ACLs |
L2, L3 e L4 |
|
Time-based ACL |
|
L2 Features Spanning tree |
802.1D Spanning Tree Protocol (STP) |
802.1w Rapid Spanning Tree Protocol (RSTP) |
|
802.1s Multiple Spanning Tree Protocol (MSTP) |
|
Loop Guard |
|
Root Guard |
|
TC-BPDU Guard |
|
BPDU Guard |
|
BPDU Filter |
|
L2 Features Multicast |
256 groups |
IGMP v1/v2/v3 |
|
Fast Leave |
|
Multicast VLAN |
|
Static Multicast |
|
Multicast Filter |
|
IGMP Statistics |
|
MLD Snooping |
|
L2 Features PoE management |
Support total power consumption control |
Support single port PoE ON/OFF |
|
Support port output priority |
|
L2 Features QOS |
4 priority queues |
CoS port-based |
|
CoS 802.1p-based |
|
CoS DSCP-based |
|
Scheduling algorithms SP, WRR, SP+WRR |
|
Storm Control (Broadcast, Multicast, Unknown Unicast) |
|
Bandwidth control per port |
|
Security Features |
Port Security |
MAC address filter |
|
ARP Association (Manual, ARP scanning, DHCP snooping) up to 200 entries |
|
ARP Protection |
|
DoS (Denial of Service) |
|
Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type |
|
802.1x Autentication (port-based e MAC-based) |
|
TACACS/TACACS+ Autentication |
|
RADIUS Autentication |
|
DHCP Filter |
|
Guest VLAN |
|
SSLv2/SSLv3/TLSv1 |
|
SSHv1/SSHv2 |
|
Restriction of WEB access based on: IP Address, And. MAC and Port |
|
Port Isolation |
|
Local User Name Password Authentication (2 levels) |
|
Loopback detection |
|
Management |
SNMP v1/v2c/v3 |
RMON 4 grupos |
|
WEB (HTTP/HTTPS) |
|
CLI (Telnet, Console, SSHv1/v2) |
|
Firmware upgrade via console/web/TFTP |
|
Configuration Backup/Reload |
|
All possible configurations in the CLI must exist in the WEB interface |
|
LLDP |
|
Other Features |
DHCP Relay |
DHCP Client |
|
DHCP Snooping |
|
DHCP Option 82 |
|
SNTP Client |
|
BOOTP Client |
|
Maintenance |
Ping and Tracert |
System log (Local and Remote) |
|
Memory and CPU Monitoring |
|
L3 Features |
Static Routing |
OSPFv2 |
|
RIPv1/v2 |
|
DHCP Server |
|
IPV6 |
IPv6 neighbor discovery (ND) |
Path maximum transmission unit (MTU) discovery |
|
Internet Control Message Protocol (ICMP) version 6 |
|
TCPv6/UDPv6 |
|
Ping6 |
|
Tracert6 |
|
Telnet(v6) |
|
Http/Https |
|
IPv6 TFTP |
|
Static Routing |
|
Interface IPV6 |
Produktmerkmale:
Anzahl Ports PoE/LAN: | 12/0 |
Belüftung Switch: | Lüfterlos |
Einsatzort Switch: | Industrial DIN |
Extra Features: | IP40 |
LAN Geschwindigkeit: | 1Gbit/S |
Management: | full managed |
PoE Port Leistung: | 30W at |
SFP Geschwindigkeit: | SFP 1GBit |
SFP Port Anzahl: | 4 |
