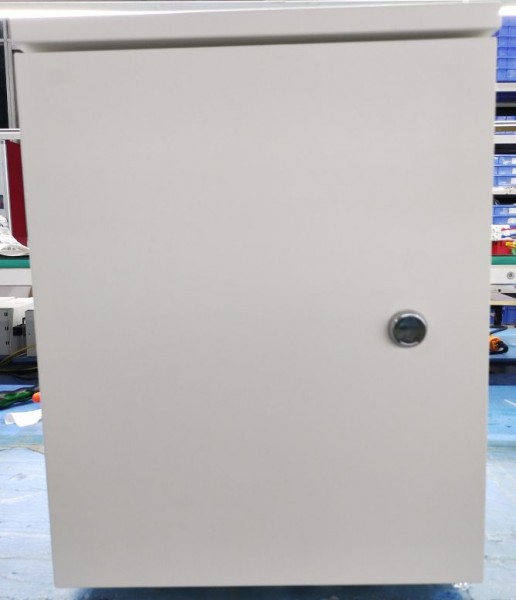

ALLNET DIN-RAIL wall mount enclosure, T220mm, light gray, IP66, SP, 16x M25 ALL-DIN-101-AC
- stock: 0
- part no.: 219493
- vendor: ALLNET
- mnufacturer no.: ALL-DIN-101-AC
- EAN No.: 4038816129109
- weight: 15kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity data sheet DE data sheet EN data sheet ES data sheet FR EU RoHS und REACH ErklärungHightlights:
- 3PIN AC100~240V Power INPUT
- 2P circuit breaker 10A included
- 2P SPD surge protection device / surge arrester
- 1x 4 port LC single mode fiber tray
- 16x M25 cable connector outputs/inputs
- IP66 waterproof enclosure and suitable for long term outdoor use.
- DIN rail for mounting of additional end devices like switches or power supplies (see accessories)
- Incl. metal band for pole mounting
The ALL-DIN-101-AC defines itself as a first-class solution for outdoor use of IT end devices, equipped with a DIN rail. This enclosure combines a number of outstanding features that make it a groundbreaking choice.
Inside the enclosure, there are not only double rated 2P circuit breakers with 2 protective poles, but also a 2P SPD surge suppressor and a convenient AC grounding outlet. In addition, it has a 4 port LC fiber optic single mode fiber tray and other innovative elements.
The enclosure’s applications are diverse, ranging from sophisticated video surveillance solutions to reliable forest monitoring and establishing stable WIFI/radio connections.
With an impressive waterproof rating (IP66) and rust protection, the housing stands for long-lasting outdoor use. It can be mounted on walls as well as securely mounted on poles using the included metal pole strap. This housing sets new standards in terms of protection, versatility and robustness in the outdoor environment.
Technical Details:
|
Produktmerkmale:
19/10" Außenhöhe: | 500 |
19/10" Breite: | 380 |
19/10" Farben: | Lichtgrau |
19/10" Schrankart: | Wandgehäuse |
19/10" Schutzklasse IP: | IP66 |
19/10" Tiefe: | 220 |
19/10" Türart: | Vollblechtür |
19/10" Wandgehäuse 1- oder 2-teilig: | Wandgehäuse 1-teilig |
19/10"/DIN-Rail: | DIN-Rail |
