Teltonika · Zubehör · Power · 2-PIN EU Netzteil 62W für TSW200
- stock: 0
- part no.: 212914
- vendor: Teltonika
- mnufacturer no.: PR317EUA
- weight: 0.5kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads
data sheet DE EU RoHS und REACH Erklärung
EU 2-PIN POWER SUPPLY, 62W
Technical Data
GENERAL
Input voltage: 100 - 240 VAC... more
Product information "Teltonika · Zubehör · Power · 2-PIN EU Netzteil 62W für TSW200"

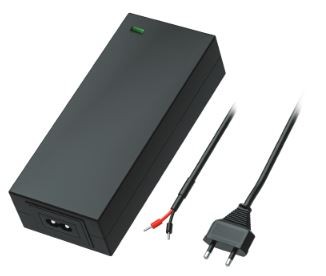

EU 2-PIN POWER SUPPLY, 62W
Technical Data GENERAL Input voltage: 100 - 240 VAC Input frequency : 50/60 Hz Input current: 1.5 A Input connector: EU (Type C) Output voltage: 48 VDC Output current: 1.3 A Output: connector: 2-PIN, with cord end terminals Weight: 305 g
ADDITIONAL Input voltage absolute maximum: 90 - 264 VAC Input frequency absolute maximum: 47 - 63 Hz Maximum input inrush current: 50 A Output voltage absolute maximum: 45.6 - 50.4 VDC Short circuit protection: ? HIPOT (dielectric withstand test): Primary to Secondary 4000 VDC MTBF: 50000 h
