Teltonika · Zubehör · Power · 2-PIN EU Netzteil 250W für TSW200

product pictures similar, may differ from the product description!
- stock: 0
- part no.: 212913
- vendor: Teltonika
- mnufacturer no.: PR320EUA
- weight: 1.5kg
- warranty: 12 months
- Do you have any questions concerning this product?
Downloads


EU 2-PIN POWER SUPPLY, 250W
Technical Data
General
Input voltage: 100 - 240 VAC
Input... more
Product information "Teltonika · Zubehör · Power · 2-PIN EU Netzteil 250W für TSW200"

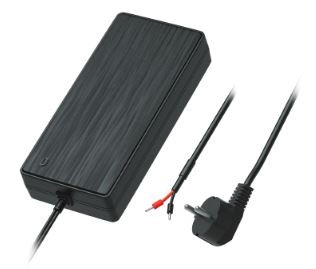

EU 2-PIN POWER SUPPLY, 250W
Technical Data
General Input voltage: 100 - 240 VAC Input frequency : 50/60 Hz Input current: 3.9 A Input connector : EU (Type F) Output voltage: 54 V Output current: 4.62 A Output connector: 2-PIN, with cord end terminals Weight: 1080 g
ADDITIONAL Input voltage absolute maximum rating: 90 - 262 VAC Input frequency absolute maximum rating: 47 - 63 Hz Maximum input inrush current: 60 A Output voltage absolute maximum rating: 51.3 - 56.7 VDC Short circuit protection: ? HIPOT (dielectric withstand test): Primary to Secondary: 1500 VAC
