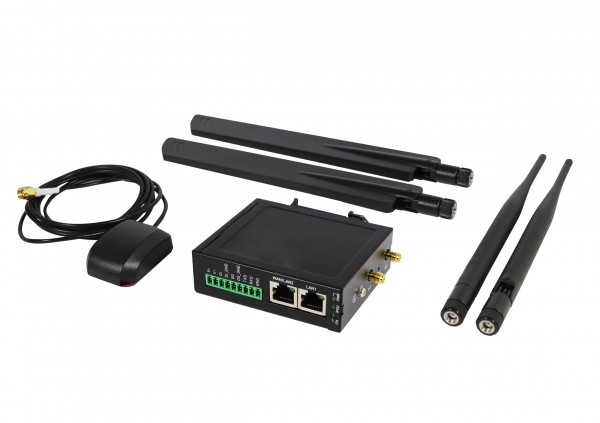

ALLNET ALL-RUT22GW Compact Industrial 4G LTE Cellular Router

Preview: ALLNET ALL-RUT22GW Compact Industrial 4G LTE Cellular Router

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Downloads

declaration of conformity

EU RoHS und REACH Erklärung

stock: 0
part no.: 182958
vendor: ALLNET
mnufacturer no.: ALL-RUT22GW
EAN No.: 4038816182951
weight: 1kg
warranty: 24 months
Do you have any questions concerning this product?

Highlights: 1 x 10/100 Base-TX RJ45 LAN port; 1 x 10/100 Base-TX RJ45 WAN port.... more

Close menu

Product information "ALLNET ALL-RUT22GW Compact Industrial 4G LTE Cellular Router"

Highlights:

1 x 10/100 Base-TX RJ45 LAN port; 1 x 10/100 Base-TX RJ45 WAN port.
Multi-band support for FDD LTE / TDD LTE / WCDMA / GSM / LTE Cat4.
Compatibility with IEEE 802.11b/g/n Wi-Fi standards.
Built-in micro-SIM port, serial port (RS-232 or RS-485) and DI/DO interfaces.
Ultra-compact and lightweight metal design with DIN rail mounting.
LED indicators for connection and data transmission status.
Industrial grade from -30 to +70°C for use in harsh environments.
Flexible power supply range from 8-48 VDC (max. 7W).
IPv4 and IPv6 dual stack management.
VPN tunnel, firewall and cryptographic protocols for cyber security.
Support of serial communication protocols for M2M connectivity.

No power supply unit included in delivery see accessories

The ALLNET ALL-RUT22GW is a compact, lightweight and cost-effective 4G LTE cellular router for use in extended temperature industrial environments. The ALL-RUT22GW router is equipped with two Ethernet network ports and utilizes 2G, 3G and 4G cellular networks for wired and wireless communications in industrial environments. Equipped with an RS232 serial port and digital input/output interfaces, the router is easy to configure and captures real-time data transmissions for industrial IoT and machine-to-machine applications extremely quickly.

With VPN tunnel, firewall, TR069 and SNMP trap, the ALL-RUT22GW supports highly secure authentication, encryption and management of your data between public and private networks. The router can be used flexibly in a temperature range of -30 to about +70°C and a flexible input voltage range of 8 to 48V in different environments and applications.

The ALL-RUT22GW industrial router is the perfect choice for simplifying complex solutions and allows you to customize your services for industrial networks and smart city applications.

Technical Details:

Cellular Interface

Standards: (Please see ordering information for optional band)

4G: FDD LTE, TDD LTE
3G: WCDMA
2G: GSM/EDGE

Bands	4G		3G	2G	REGION
Bands	FDD LTE	TDD LTE	WCDMA	GSM / EDGE	REGION
EU	B1(2100), B3(1800), B5(850), B7(2600), B8(900), B20(800)	B38(2600), B40(2300), B41(2500)	B1(2100), B5(850), B8(900)	B3(1800), B8(900)	Europe Africa Middle East Korea Thailand India

LTE Data Rate: CAT 4, 150Mbps (DL), 50Mbps (UL)

Hardware Interface

High Performance 550 MHz SoC with 128MByte Flash
1 x Micro SIM Connector (push-push type)
1 x LAN 10/100 Mbps Ethernet port
1 x WAN 10/100 Mbps Ethernet port
WPS / RESET Button
1 x RS-232 (TXD/RXD/GND)
1 x RS-485 (D+/D-/GND) (M330-W5 Model)
1 x DI (Non-Isolated), 1 x DO (Non-Isolated)
2 x SMA connectors for detachable LTE Antenna
2 x RP-SMA connectors for detachable Wi-Fi Antenna
1 x SMA connector for detachable GPS antenna

Wi-Fi Interface

Compliant with IEEE 802.11 b/g/n Wi-Fi standards
2.4 GHz radio band for wireless
2T2R 300 Mbps wireless operation rate
Wireless security with WPA2-PSK(AES)
Multiple SSIDs
Wireless MAC Filtering
Wireless client isolation

Physical Characteristics

Enclosure:Metal Case
Dimensions (W x H x D):91 x 28 x 74 mm
Weight:250 g (0.5512 lb)
Installation:DIN-rail / Wall mounting

LED Display

1 x Power LED
1 x Ethernet LED for each port (LAN/WAN)
1 x RSSI LTE LED
1 x Function LED (User define by Web)

Power Supply

Power Consumption 7 Watts(Max)
Power Input 8 ~ 48 VDC

Software

Network Protocols:

IPv4, IPv6, IPv4/IPv6 dual stack, DHCP server and client, PPPoE, Static IP, SNTP, GPS sync time, DNS Proxy,

VRRP, OSPF, Message Queue Telemetry Transport

(MQTT Broker), BGP, Flow (Modbus master ↔ MQTT client)

Routing/Firewall:

NAT, Virtual Server, DMZ, MAC Filter, URL Filter, IP Filter, VLAN, Static Routing and RIP-1/2, IPS, Policy Route

VPN:

OpenVPN, IPSec (3DES, AES128, AES196, AES256, MD5, SHA-1, SHA256), GRE, PPTP, L2TP

Wireless Connectivity:

WAN Wi-Fi Client

Others:

DDNS, QoS, UPnP, SMS Action, GPS Track Drawing, GPS TCP Push

Alarm:

DI, DO, SMS, VPN/WAN Disconnect, SNMP Trap, E-mail, TR069

Management Software

Web GUI for remote and local management, CLI
Syslog monitor
SNMP, TR069
FOTA (Firmware over the Air)
Remote management via SSH v2, HTTPS
Local management via Telnet, SSH v2, HTTP/HTTPS

Environment

Operating Temperature -30 ~ +70°C
Storage Temperature -40 ~ +85°C
Ambient Relative Humidity 10 ~ 95% (non-condensing)
Humidity 0 ~ 95% (non-condensing)

Standards and Certifications

EMC:CE, FCC
EMI:EN 301489 , FCC Part 15B Class B
EMS:EN 301489
Vibration:IEC60068-2-6
Radio : EN 301511, EN 301908-1, EN 301908-2, EN 301908-13, EN 300328, EN 303413, EN 62311
