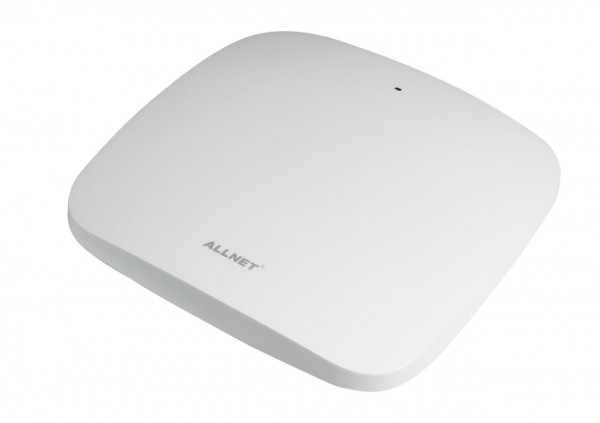

ALLNET Apollo Wireless AP WIFI6 • AX3000 • 2x2 • Indoor • 2.5 GbE • ALL-WAPC0522AX-3000 • Apollo
- stock: 0
- part no.: 211734
- vendor: ALLNET
- mnufacturer no.: ALL-WAPC0522AX-3000
- EAN No.: 4038816126658
- weight: 0.8kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity data sheet DE data sheet EN data sheet ES data sheet FR EU RoHS und REACH ErklärungALLNET Apollo Wireless AP WIFI6 • AX3000 • 2x2 • Indoor • 2.5 GbE • ALL-WAPC0522AX-3000 • Apollo
Highlights:
- Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices
- WPA3 & WPA2-AES authentication support
- 5 dBi integrated 2x2 antenna
- Supports up to 2,400 Mbps in the 5GHz frequency band & 574 Mbps in the 2.4GHz frequency band
- Support 5GHz DFS channels
- Local and remote management over FitController controller without fees
- 2,5 GBit 802.3af PoE port for easy placement up to 328 feet from a power source
- Choice of AP and WDS modes to meet your management & deployment requirements.
- Operation as SINGLE AP or with on-prem controller ALL-AC100.
ALLNET Apollo Series ALL-WAPC0522AX-3000 2x2 Lite Managed Indoor Wireless Access Point offers advanced 802.11ax technology, granting users incredibly speedy and efficient performance with a maximum theoretical speed of 574 Mbps on the 2.4GHz frequency and an incredible 2,400Mbps on 5GHz frequency! Furthermore it's safeguarded by top-tier WPA3/WPA2PSK AES encryption protocols for unparalleled security. security.
Physical Interfaces:
Technical Details Basics:
Basic |
ALL-WAPC0522AX-3000 Apollo Entry 2x2 Entry AP | ||
Main Chipset |
IPQ5018 ARM A53, 1GHz Dual-Core |
||
Flash |
8MB SPI NOR (reserved) 128MB NAND |
||
RAM |
512MB DDR3 |
||
Transmit Power (Chain + Combining Gain) |
2.4GHz: 21dBm |
||
5GHz: 21dBm |
|||
Interface |
1x 10/100/1000/2500Mbps RJ45 Port IEEE802.3at PoE IN 1x Reset Button 1x DC Barrel Jack |
||
Operating Temperature |
0 ~ 40°C |
||
Dimensions (W x L x H) |
160 x 160 x 30mm |
||
Enclosure Material |
Plastic (Top Cover) Metal (Bottom Cover) |
||
Certification (Generic) |
FCC, CE |
Fully Technical Details:
Fully |
|
||
Wireless Radio Specification | |||
Access Point Type |
Indoor, dual radios concurrent, |
||
Frequency Radio |
2.4GHz: 2400MHz ~ 2495MHz, 5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz, 5470~5725MHz, 5725MHz~5850MHz Support radios and channels will be varied on the configured regulatory domain. |
||
Supported Radio Technology |
802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) 802.11ax supports very high throughput (VHT)—HE 20/40/80/160 MHz 802.11ac supports very high throughput (VHT)—VHT 20/40/80 MHz 802.11n supports high throughput(HT) —HT 20/40 MHz 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
||
Supported Modulation Type |
802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
||
Transmit Power (Combined) |
2.4GHz: 21dBm; 5GHz: 21dBm Maximum power is limited by regulatory domain |
||
MU-MIMO |
MU-MIMO allows multiple spatial streamsto be allocated to different clients simultaneously on both download and upload sides. |
||
Tx Beamforming (TxBF) |
Increasing signal reliability and transmitting distance. |
||
Power | |||
Maximum Power Consumption (TBD,estimated) |
17.4W |
||
PowerSource |
Standard IEEE802.3at DC IN 12V/2A |
||
Antenna |
|||
Internal Antenna |
2.4GHz:4dBi 5GHz:5dBi BLE2.4GHz:4.5dBi (reserved) |
||
Interfaces |
|||
Networking Interface |
One 10/100/1000/2500 Mbps Ethernet Port One 10/100/1000 Mbps Ethernet Ports (reserved) |
||
Reset Button |
One(1) Reset Button (Convert Access Point to the Factory default or the Users Default) |
||
DCIN |
One(1) 12V DC IN | ||
Mounting | |||
Ceiling or Wall Mounting |
Mount Access Point in on the ceiling or wall via included accessories |
||
Mechanical & Environment | |||
Dimensions (LxWxH) |
160mmx160mmx30mm | ||
Operating | Temperature: 0°C~40°C Humidity:0%~90% typical | ||
Storage | Temperature: -20°C~70°C Humidity:0%~90% typical | ||
Marks | FCC Subpart15 B Subpart C 15.247 Subpart E 15.407 CE EN 300 328 EN 301 893 EN 50385 EN 55032 EN 55024 |
RF Performance Specification Wireless Indoor Access Point
Channel |
Data Rate |
Transmit Power (Typical AVG.) |
Receive Sensitivity |
||||
Tolerance = +/-1.5 dB |
|||||||
2.4GHz |
5GHz |
2.4GHz |
5GHz |
||||
Combine |
EIRP |
Combine |
EIRP |
||||
802.11b |
1M |
21 |
25 |
- |
- |
-95 |
- |
11M |
21 |
25 |
- |
- |
-88 |
- |
|
802.11g/a |
6M |
21 |
25 |
21 |
26 |
-92 |
-92 |
54M |
18 |
22 |
18 |
23 |
-74 |
-73 |
|
802.11n HT20 |
MCS0 |
21 |
25 |
21 |
26 |
-92 |
-92 |
MCS7 |
18 |
22 |
18 |
23 |
-74 |
-72 |
|
802.11n HT40 |
MCS0 |
21 |
25 |
21 |
26 |
-91 |
-89 |
MCS7 |
18 |
22 |
18 |
23 |
-72 |
-64 |
|
802.11ac VHT20 |
MCS0 |
21 |
25 |
21 |
26 |
-92 |
-92 |
MCS8 |
17 |
21 |
17 |
22 |
-67 |
-67 |
|
802.11ac VHT40 |
MCS0 |
21 |
25 |
21 |
26 |
-91 |
-89 |
MCS9 |
17 |
21 |
17 |
22 |
-66 |
-64 |
|
802.11ac VHT80 |
MCS0 |
- |
- |
20 |
25 |
- |
-86 |
MCS9 |
- |
- |
17 |
22 |
- |
-61 |
|
802.11ac VHT160 |
MCS0 |
- |
- |
20 |
25 |
- |
-83 |
MCS11 |
- |
- |
16 |
21 |
- |
-59 |
|
802.11ax HE20 |
MCS0 |
21 |
25 |
21 |
26 |
-92 |
-92 |
MCS11 |
16 |
20 |
16 |
21 |
-62 |
-61 |
|
802.11ax HE40 |
MCS0 |
21 |
25 |
21 |
26 |
-90 |
-89 |
MCS11 |
16 |
20 |
16 |
21 |
-59 |
-58 |
|
802.11ax HE80 |
MCS0 |
- |
- |
20 |
25 |
- |
-86 |
MCS11 |
- |
- |
16 |
21 |
- |
-56 |
|
802.11ax HE160 |
MCS0 |
- |
- |
20 |
25 |
- |
-83 |
MCS11 |
- |
- |
15 |
20 |
- |
-53 |
