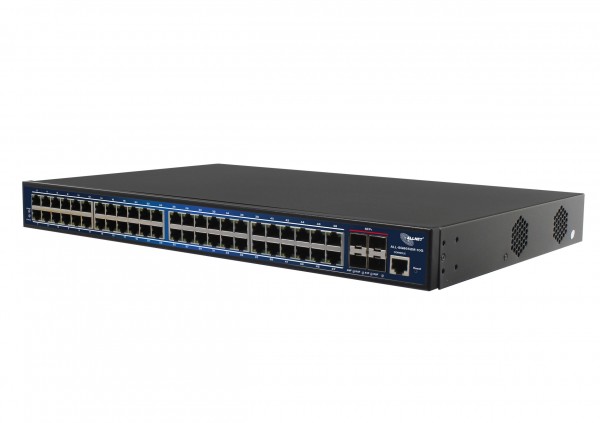

ALLNET Switch full managed 48 Port Gigabit / 48x LAN / 4x SFP+ / 19" / "ALL-SG8652M-10G"
- stock: 0
- part no.: 208889
- vendor: ALLNET
- mnufacturer no.: ALL-SG8652M-10G
- EAN No.: 4038816117335
- weight: 1kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE data sheet EN data sheet ES data sheet FR manual Handbuch EN EU RoHS und REACH ErklärungThere is a successor to this product
ALLNET Switch full managed 48 Port Gigabit / 24x LAN / 4x SFP+ / 19" / "ALL-SG8652M-10G"
Highlights:
- 48 ports Gigabit Layer2+ switch architecture (ports 1~48).
- 4 ports SFP+ 10G slots compatible for optional GBICSs (ports 48~52).
- Support L2+ Switching features including 802.1Q VLAN, Mirroring, Port isolation, IGMP Snooping, DHCP Snooping, LLDP, IP Source Guard, ARP inspection, ACLs etc.
- Support spanning tree STP(802.1D) and RSTP(802.1W) and MSTP(802.1s).
- Support enhanced management through WEB, CLI, TELNET, SSH, SNMP.
- Support cable diagnosis and SFP DDM.
- Support PoE management, like PoE schedule, PoE PD-alive.
- Support G.8032 quick ring protocol. Self-recovery time <20ms.
- Support IEEE1588 v2, transparent clock(TC)
- Support DDM, SFP digital diagnostics monitoring
- Support IPV4 and IPV6 static routing functions
- Support memory and CPU monitoring
- 4KV surge protection, 6KV contact/8KV air protection
- 19" angle or wall/table mounting possible
Full L2+ managed Ethernet aggregation /core fiber switch with 48* 10/100/1000M RJ45 ports and 4*1/10G SFP+ fiber slot ports, Built-in 60W power supply. Support 1U/19 inch rack installation.
ALL-SG8652M-10G is an aggregation /core fiber switch with 48* 10/100/1000M RJ45 ports and 4*1/10G SFP+ fiber slot ports, Built-in 60W power supply. Support 1U/19 inch rack installation. With full L2 management functions, such as VLAN, QoS, ACL, IPv4/IPv6 routing, ALL-SG8652M-10G can be used in various applications, such as video surveillance, VoIP, wireless coverage etc with a afforadble cost.
10Gbps Uplink Capacity for Big Bandwidth Application
10G Ethernet is a big leap in the evolution of Ethernet. The 10G SFP+ slots support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. It is a cost-effective solution for SMB network to achieve the maximum performance of the 10G networks
Solution for IPv6 Networking
With the IPv6/IPv4 dual stack and other management functions, ALL-SG8652M-10G is the best choice for IP CCTV surveillance, VoIP and wireless solution providers to develop the IPv6 network. Meanwhile the fiber switch help the SMBs to upgrade their network infrastructures to the IPv6 era without any extra investment.
Robust Layer 2 Features
ALL-SG8652M-10G can be programmed for advanced Ethernet switch management functions, such as port aggregation, Q-in-Q VLAN, Spanning Tree Protocol, QoS, bandwidth control, ERPS IGMP/MLD snooping etc. ALL-SG8652M-10G allows the operation of a high-speed trunk combining multiple ports.
Powerful Security Functions
ALL-SG8652M-10G provides a comprehensive access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.
Enhanced Security and Traffic Control
ALL-SG8652M-10G supports DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.
User-friendly Secure Management
For efficient management, ALL-SG8652M-10G managed switch series is equipped with console, web and SNMP management interfaces. With management interface, ALL-SG8652M-10G offers an easy-to-use, platform independent management and configuration facility. ALL-SG8652M-10G supports SNMP and it can be managed via any management software based on the standard SNMP v1 or v2 Protocol. Meanwhile ALL-SG8652M-10G offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, ALL-SG8652M-10G offers the remotely secure management by supporting SSH, SSL and SNMP v3 connection where the packet content can be encrypted at each session.
Intelligent SFP DDM Function
ALL-SG8652M-10G supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
Fast Recovery Redundant Ring for Critical Network Applications
The ALL-SG8652M-10G supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 20ms.
1588 Time Protocol for Industrial Computing Networks
The ALL-SG8652M-10G is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.
Technische Daten:
Model |
ALL-SG8652M-10G |
Copper Ports |
48-10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
Fiber Ports |
4x1G/10GBASE-X SFP interfaces, supports 1G/10Gbps dual mode |
Console Ports |
1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) |
Switch Architecture |
Store-and-Forward |
Switch Fabric |
176 Gbps/non-blocking |
Throughput |
130.94Mpps @64 bytes |
Address Table |
32K entries |
Share Data Buffer |
32Mb |
Jumbo Frame |
9600 Bytes |
SDRAM |
2Gb |
Flash Memory |
128Mb |
Flow Control |
IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
Reset Button |
>2 sec.: Factory default and reset |
Power Supply |
100~240V AC, 50/60Hz, 4A (max.) |
Power Consumption |
Max. 370 watts |
LED Indicators |
Power: Green Solid on- power work normal, off- power disconnected System: Green Blink-work normally, solid on- soft work abnormal, fast blink- soft upgrade 10/100/1000T RJ45 Interfaces (Port 1 to Port 48): 1000 LNK/ACT (Green),10/100 LNK/ACT (yellow), Blink- port connected with data transmission; Solid on- port connected without data transmission 1G/10G SFP Interfaces (Port 49 to Port 52): Blue Blink- port connected with data transmission; Solid on- port connected without data transmission |
EMC |
Surge Immunity: 4KV Per: IEC61000-4-5 ESD Protection: ESD Level 4 Per: IEC61000-4-2 EFT Level 4 Per: IEC61000-4-4 |
Layer2 Functions | |
Port configuration |
Auto-negotiation Flow Control Port Mirror: TX/RX/BOTH; Many-to-1 monitor CPU Mirror Traffic statistics |
Link Aggregation |
Static link aggregation LACP (Dynamic Trunk/Static Trunk) Algorith based on Source/Destination MAC Algorithm based on Source/Destination IP |
MAC Table |
Aging Time Static MAC address Dynamic MAC address management |
VLAN |
4094 Active VLANs |
ACL |
512ACLs |
Spanning tree |
802.1D Spanning Tree Protocol (STP) 802.1w Rapid Spanning Tree Protocol (RSTP) 802.1s Multiple Spanning Tree Protocol (MSTP) Loop Guard Root Guard TC-BPDU Guard BPDU Guard BPDU Filter |
Ring Protection |
<20ms G.8032 ERPS Ring Fast Ring |
Multicast |
1024 groups |
QOS |
8 mapping IDs to 8 level priority queues |
Security Features |
Port Security |
Management |
SNMP v1/v2c/v3 with Full Private MIBs |
Synchronization, IEEE1588 |
Support IEEE1588v2 transparent clock |
Other Features |
DNS Client |
Maintenance |
Cable Diagnostics |
Layer 3 functions | |
Static Routing |
IPv4 Unicast: Static Routing(Software Base) IPv6 Unicast: Static Routing(Software Base) |
IPV6 |
IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 Ping6 Telnet(v6) Http/Https Interface IPV6 ACL IPV6 |
Dimension |
440x240x44.5 mm |
Weight |
3,3 kg |
Working Temperature |
-10 °C to 45 °C |
Storage Temperature |
-20 °C to 70 °C |
MTBF |
50,000hrs |
Produktmerkmale:
Anzahl Ports PoE/LAN: | 0/48 |
Belüftung Switch: | Mit Lüfter |
Einsatzort Switch: | 19" |
LAN Geschwindigkeit: | 1Gbit/S |
Management: | full managed |
SFP Geschwindigkeit: | SFP+ 10GBit, SFP 1GBit |
SFP Port Anzahl: | 4 |
