ALLNET ALL-SG8452M / 48 Port Gigabit TX + 4x SFP managed sw

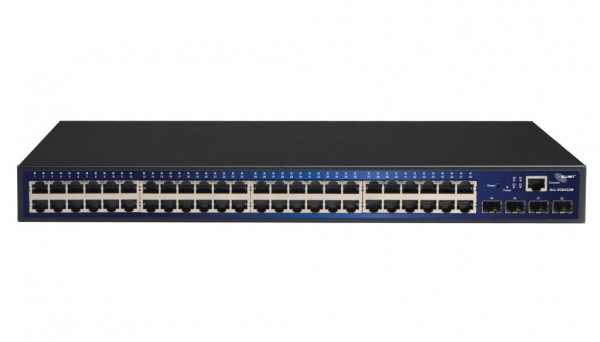

Preview: ALLNET ALL-SG8452M / 48 Port Gigabit TX + 4x SFP managed sw

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Downloads

declaration of conformity

data sheet DE

data sheet EN

EU RoHS und REACH Erklärung

stock: 0
part no.: 130253
vendor: ALLNET
mnufacturer no.: ALL-SG8452M
EAN No.: 4038816130259
weight: 4.97kg
warranty: 24 months
Do you have any questions concerning this product?

Highlights: 48 x 10/100/1000Mbps Auto MDI/MDI-X Ethernet port Switching Capacity up to... more

Close menu

Product information "ALLNET ALL-SG8452M / 48 Port Gigabit TX + 4x SFP managed sw"

Highlights:

48 x 10/100/1000Mbps Auto MDI/MDI-X Ethernet port
Switching Capacity up to 104G
Store and forward mode operates
Support Web-based Management
Support QoS
Port Mirroring
Link Aggregation Protocol
Support SNMP/RMON/TELENT
QoS (Port Based, Flow, 802.1p, IP-TOS, IP DSCP)
Four SFP Slots
FANLESS SOLUTION !

The ALL-SG8452M is a 48 Ports seamless network device. This device integrates 1000Mbps Gigabit Ethernet, 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities in a highly flexible package.
With 48-10/100/1000Mbps Auto-Negotiation RJ45 ports, all UTP ports support Auto MDI/MDIX function. The Switch with a low-cost, easy-to-use, high performance upgrade your old network to a 1000Mbps Gigabit network. It is essential to helping solve network bottlenecks that frequently develop as more advanced computer user and newer applications continue to demand greater network resources.

Technical Details:

Element	Spezifikation
Transfer Method:	Layer 2-Switch, smart, Store and Foreward, Auto-Negotiation
Switch-Typ:	standalone
Switching-Ports:	48x RJ45 10/100/1000BaseT(X) 4x SFP miniGbics Slots für optionale MiniGBIC siehe z.B. ALL4750/ALL4751 etc. Total = 52 Gigabit Ports
Console Port:	1x RJ45 Console Port
Uplink:	on all ports (Auto MDI/MDI-X)
Full Duplex Mode:	yes
MAC Address Learning:	Automatically learning, automatically Update 16K Table
Switch Capacity:	104Gbps
LED indicators:	Link/Act/speed - 10/100Mbps:Orange 1000Mbps: Green other - SFP: Green Power: Green
Frame Filtering and Forward Rate:	10Mbps: 14880pps, 100Mbps:148800pps, 1000Mbps: 1488000pps
Power Supply	AC 100V~240V 50/60HZ (12V/4A), internes Netzteil
Supported Standards:	IEEE802.3 10BaseT IEEE802.3u 100BaseTX IEEE802.ab 1000BaseT IEEE802.3ad Link Aggregation IEEE802.1ab Link Discovery Protocol (LLDP) IEEE802.3x full-duplex operation and flow control IEEE802.1p class of service, priority protocols IEEE802.1Q VLAN Tagged Based
Layer2 Funktionen:	Flow Control (Full-Duplex & Half-Duplex) VLAN (4K VLAN Table, Port-based, IEEE802.1q Tagged-based) Link Aggregation (IEEE802.3ad LACP, Static Trunk, 8x max Gruppen, 8 Ports/Gruppen, Traffic Load Balancing) IGMP Snooping (256 Multicast Gruppen, IGMP v1/v2/v3 IEEE802.1ab Link Layer Discovery Protokoll (LLDP)
QoS Features:	WRR (Weighted Round Robin) Port based QoS IEEE 802.1p Class of Service DSCP-based QoS QoS basic mode QoS advanced mode (Policy based)
Security:	Broadcast / Uncast / Multicast Storm Control IEEE 802.1x DHCP Snooping(IP?MAC?Port)
System:	IP Configuration(IPV4?IPV6) User Configuration Time Settings(SNTP) Log Management SNMP Management(V2) RMON
Port:	Port Configuration Link Aggregation(static?Lacp) Port Mirroring Jumbo Frame Port Error Disabled Configuration
Vlan:	Port based VLAN Protocol based VLAN
IGMP:	IGMP Snooping(V2?V3) Multicast group(256)
ACL:	MAC-Based ACL MAC-Based ACE IPv4-Based ACL IPv4-Based ACE
STP:	IEEE 802.1D STP IEEE 802.1W RSTP IEEE 802.1S MSTP
Bandwidth Control:	Ingress Port Ingress VLAN Egress Port Egress Queue
MAC Address Setting:	Static Mac Setting MAC Filtering Dynamic Address Learn/Setting Rma Setting
LLDP:	LLDP Port Setting MED Network Policy
Management:	System Status Ping Test Factory Reboot Switch Backup/Upgrade Manager Configuration Manager
Housing:	19zoll Metallgehäuse, Montagewinkel beiliegend,
Dimensions (W × D × H)	44033044mm
Environment	Operating Temperature: 0? - 40? Storage Temperature: -40? - 70? Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~90% non-condensing
Marks:	EMC/FCC, CE Class B; Safety/LVD EN60950-1

Produktmerkmale:

Anzahl Ports PoE/LAN:	0/48
Belüftung Switch:	Lüfterlos
Einsatzort Switch:	19"
LAN Geschwindigkeit:	1Gbit/S
Management:	smart managed (WebGui)
SFP Geschwindigkeit:	SFP 1 Gbit/s
SFP Port Anzahl:	4
