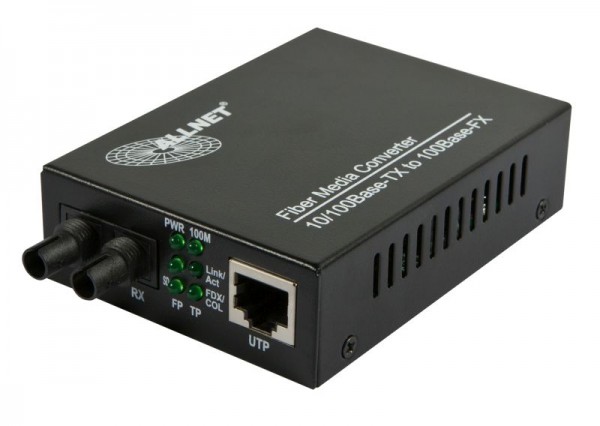

ALLNET ALL-MC107-ST-MM / Mediaconverter 100BaseT - 100BaseST

ALLNET ALL-MC107-ST-MM / Mediaconverter 100BaseT - 100BaseST
ALLNET ALL-MC107-ST-MM / Mediaconverter 100BaseT - 100BaseST

Preview: ALLNET ALL-MC107-ST-MM / Mediaconverter 100BaseT - 100BaseST Preview: ALLNET ALL-MC107-ST-MM / Mediaconverter 100BaseT - 100BaseST
product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Description Accessories 6
Description
Highlights: 1x 10/100BaseTX Ethernet TP Port 1x 100BaseFX Ethernet Fiber Port ST... more
Close menu
Product information "ALLNET ALL-MC107-ST-MM / Mediaconverter 100BaseT - 100BaseST"

Highlights:

  • 1x 10/100BaseTX Ethernet TP Port
  • 1x 100BaseFX Ethernet Fiber Port ST Multimode
  • TP Port support Half/Full-Duplex
  • Auto-MDI/MDI-X and Auto-Negotiation

Technical Features:

Item

Specification

Standards:


IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX/100BaseFX
IEEE 802.3x FLow Control

Features:

1x 10/100BaseT with RJ-45 Connector
1x 100BaseFX with Fiber Connector MM,ST

Data Transfer Rate:

Ethernet: 10Mbps/Half-Duplex; 20Mbps/Full-Duplex
Fast Ethernet: 100Mbps/Half-Duplex; 200Mbps/Full-Duplex

Transmission Media:

10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m
100BaseTX Cat. 5 UTP/STP, up to 100 m
100BaseFX: 50/125µm or 62.5/125µm Multi Mode ST-Type Fiber optic cable, up to 2 km

Led Indicators:

1x Power on
Per Port:(TX): Link, TX ; (FX): Link, RX

Power Requirement:

DC 5V/2A external Power Supply

Power consumption:

3 Watts (Max)

Dimensions:

94 × 71 × 26 mm (L x W x H)

Weight:

230g (only  Mediaconverter)

Environment:

Temperature operarting: 0 ~ 50 °C
Humidity operating: 10% ~ 90% (non-condensing)
Temperature storage: -20 ~ 70 °C
Humidity storage: 10% ~ 90% (non-condensing)

Certifications:

CE

Produktmerkmale:

Fasertyp: MM
Fibre Anschluß: ST
Geschwindigkeit: 100M
