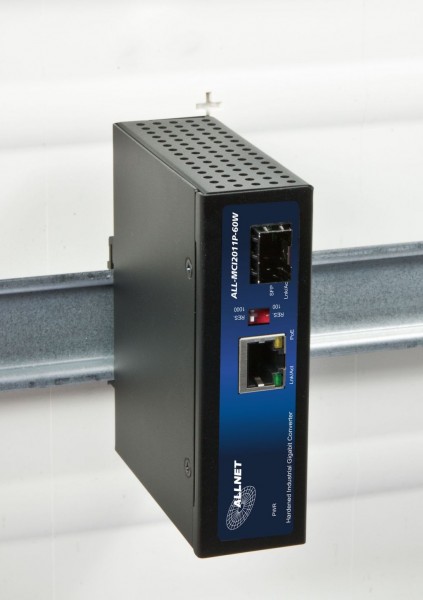

ALLNET ALL-MCI2011P-60W / Mediacon. 1G TX PoE AT -> 1G SFP

ALLNET ALL-MCI2011P-60W / Mediacon. 1G TX PoE AT -> 1G SFP
product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Highlights: Hardened 60W Gigabit POE converter designed with hardened Marvell IC... more
Product information "ALLNET ALL-MCI2011P-60W / Mediacon. 1G TX PoE AT -> 1G SFP"


  • Hardened 60W Gigabit POE converter

  • designed with hardened Marvell IC

  • 1x10/100/1000M 60W PSE (supports 802.3af/at) TX + 100/1000M SFP

  • 48-56VDC Redundant Power-Input

  • Operating temp: -40°C to +75°C

This Rugged 60 Watts Industrial POE converter is designed with hardened Marvell IC, it delivers 60Watts POE power to your PD. It also can tolerate extreme temperature in a harsh environment. Our ColdDesign technology will not only power up your PD device, also reduce the excessive heat problem to a minimum. It accepts the input voltage from 48VDC to 56VDC to meet IEEE802.3af/at required voltage. It is being rigorously tested for your Security, Transportation and Telco application.

Technical Detail:




IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3x Flow Control Back Pressure for PoE
IEEE802.3at for PoE+

Network Connections:

1x 10/100/1000BaseT (RJ-45)
1x 1000BaseSX/LX SFP Module Slot

Data Processing:

Half/Full-Duplex on TP


IEEE802.3at/af compatile

Flow Control: IEEE802.3x Flow Control and Back Pressure
Jumbo Frame 9KB
Packet Buffer Size 1M
MAC adress Table Size 2K

Network Cable:

TP:10/100/1000BaseT Cat. 5, 5E, 6 UTP/STP, till 100 m
62.5/125μm Multi Mode LWL, till 220 m
50/125μm Multi Mode LWL, till 550 m
9/125μm Single Mode LWL

POE Pin Assignment: 60 watts 4 pairs
V+, V+, V-, V- for pin 1, 2, 3, 6
V+, V+, V-, V- for pin 4, 5, 7, 8
DIP Switch: To select SFP speed 100M or 1000M.
Reverse polarity protection: Present
Overload current protection: Present


PW1(power 1) Green: ON- power good, OFF-power failed
UTP LEDS: Amber ON- PD detected,  Green ON – Link/active
SFP LED: Green ON – SFP detected

Power Supply:

4pin Terminal Block 48V-56V VDC Power Input
SW (Relay): Relay switch for alarm

Power Consumption: 2W@48VDC without PoE
PoE Power: Maximum PoE Power 72W at 56VDC Input
Alarm Relay Contact: Relay outputs with current carrying capacity of 1 A @24VDC,
Relay in short circuit mode when power fails. in open circuit mode when power supply is connected
Removable Terminal Block: Provide 4 pin terminal block
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG):12-24/14-22
Stranded wire(AWG): 12-24/14-22
Wire Strip length: 7-8mm

Case Dimension (L X W X D)mm

103.5mmx32mmx81.5mm (LxWxD)
Installation mounting: DIN Rail mounting and Wall Mounting
Housing: Rugged Metal, IP30 Protection
MTBF ( mean time between failure) 510,304 hrs ( MIL-HDBK-217F) at 25°C


Operating Temperature: -40° ~ +75° °C
Operating Humidity:  5% ~ 95% (non condensing)
Storage Temperature: -40 ~ 85 °C
Storage Humidity: 5% ~ 95% (non condensing)


EN55022 Class A
EN55022/24  ITE Equipment
EN55011       Industrial, Scientific and Medical (ISM) equipment
IEC EN60950-1 Sicherheit


EN50155 / EN 60068-2-27

Free Fall:

EN5055 / EN 60068-2-32

Vibration: EN 50155 / IEC 60068-2-6
EMI: FCC Part 15 Supbart B Class A
CE EN 55022 Class A


Features: Industrial, PoE
Fibre Anschluß: SFP
Geschwindigkeit: 1G
