ALLNET Switch smart managed Layer2 54 Port • 48x Port 1 GbE • 6x SFP+ • 19"• ALL-SG8454M-10G

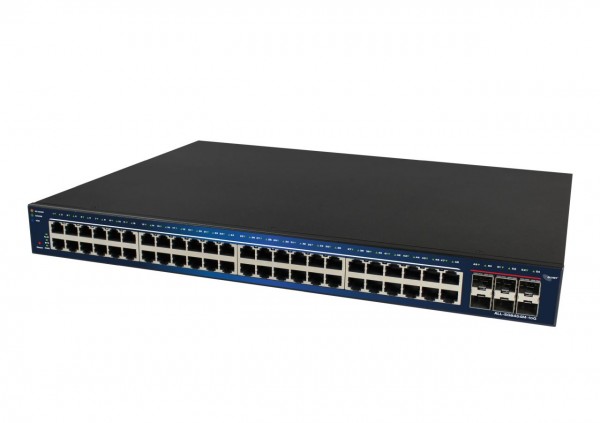

Preview: ALLNET Switch smart managed Layer2 54 Port • 48x Port 1 GbE • 6x SFP+ • 19"• ALL-SG8454M-10G

product pictures similar, may differ from the product description!

net price plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

Downloads

EU RoHS und REACH Erklärung

stock: 0
part no.: 209905
vendor: ALLNET
mnufacturer no.: ALL-SG8454M-10G
EAN No.: 4038816119230
weight: 4.97kg
warranty: 24 months
Do you have any questions concerning this product?

ALLNET Switch smart managed Layer2 54 Port • 48x Port 1 GbE • 6x SFP+ • 19"• ALL-SG8454M-10G... more

Close menu

Product information "ALLNET Switch smart managed Layer2 54 Port • 48x Port 1 GbE • 6x SFP+ • 19"• ALL-SG8454M-10G"

ALLNET Switch smart managed Layer2 54 Port • 48x Port 1 GbE • 6x SFP+ • 19"• ALL-SG8454M-10G

Highlights:

48 port Gigabit non-blocking switch architecture + 6 SFP+ Mini-GBIC slots = Total 52 ports
Supports NWay protocol for speed (10/100/1000Mbps) and duplex mode (half/full) auto-detection
Switch capacity up to 176Gbps
32K MAC address table
Packet buffer size: 16Mbit
12K bytes jumbo frames
Forwarding rate: 129.3Mpps (64 byte packet size)
Supports Web UI for configuration
Supports console port with CLI command
Supports HW monitor alarm

Are you in need of a powerful network switch that fulfills all your requirements? Look no further! Our 48-Port Gigabit Switch with 6 additional SFP+ Mini-GBIC Slots is the perfect solution for you. Here are some of the impressive specifications this device has to offer:

Maximum Connectivity: With a total of 52 ports, including 48 Gigabit Ethernet ports and 6 SFP+ Mini-GBIC Slots, you're well-equipped to efficiently manage your network.

Intelligent Speed and Duplex Mode: The switch supports the NWay protocol, enabling automatic speed and duplex mode detection (10/100/1000Mbps, half/full), so you don't have to worry about manual configuration.

High Capacity: With an impressive switch capacity of up to 176 Gbps, this switch can handle even the most demanding applications and data transfers.

Large MAC Address Table: With a 32K MAC address table, this switch provides ample space for managing your network devices.

Jumbo Frames: For transferring large amounts of data, 12K-byte jumbo frames are available, enhancing your network performance efficiency.

Easy Configuration: With support for a web interface (Web UI), you can easily configure and tailor the switch to your needs.

Management Flexibility: The switch supports a console connection with CLI commands, giving advanced users full control over configuration.

Reliable Monitoring: With HW Monitor Alarms support, you'll be promptly alerted to any hardware issues, minimizing downtime.

Rely on our network technology to make your communication seamless and efficient. This switch provides the power and reliability your network requires. Experience the future of connectivity with our 48-Port Gigabit Switch.

Technical Drawings:

Technical Details:

Hardware Specs:

Items	Specifications
Model No.	ALL-SG8454M-10G
Key Components	RTL9311M+RTL8218Dx6 Flash IC: MXIC 64 Byte DDR: 4G bits
I/O ports	48x GbE ports, RJ45 6 x 10G ports, SFP+ Reset Button: reset to default setting, re-start system Console port by RJ45 type
LED Define	PWR: Green LED Off: power off or fail On: power on SYS: Green LED Off: power off or fail On: system is ready Blinking: system booting up Alert: Red LED Off: Switch is normal condition On: Alarm for system failure because of overheat, wrong voltage. 1-48 Port LED: Link/ACT: Off: port disconnected or link fail Green on: 1000Mbps connected Amber on: 10/100Mbps connected Blinking: sending or receiving data 49-52 port LED: SFP+: - Off: disconnected or fail - Blue: 10Gbps connected - Green: 1000Mbps connected - Blinking: data transmitting
HW feature	IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3ae SFP+ IEEE802.3az EEE MAC address Table: 32K Packet buffer size: 16Mbit Jumbo Frame: 12K bytes 176Gbps switching capacity Forwarding rate: 129.3Mpps (64-byte package size)
Data Transfer Rate	Ethernet:10 Mbps(half duplex),20 Mbps(full duplex) Fast Ethernet:100 Mbps(half duplex),200 Mbps(full duplex) Giga Ethernet:2000 Mbps(full duplex) 10 Gigabit Ethernet:20 Gbps(full duplex)
System Monitor	HW Monitor IC: ADT7463 Voltage Monitor Input Voltage: 12V (+/-7% Alarm Threshold) I/O Voltage: 3.3V (+/- 5% Alarm Threshold) DDR Voltage: 1.5V (+/- 5% Alarm Threshold) PHY Voltage: 1.1V (+/- 5% Alarm Threshold) MAC Voltage:1.0V (+/- 5% Alarm Threshold) Temperature Monitor BOARD: 0~80°C MAC: 0~85°C PHY: 0~85°C
Power Input	Internal power supply Input: 90~264VAC/47~63Hz Output: 12V/6A
Reset button	Support reset to default configuration
Dimension	441(W) x 270(D) x 45(H) mm
FAN Design	Reserve One Fan
Temperature	Operating: 0 ~ 40? Storage : -40 ~ 70?
Humidity	Operating: 10% ~ 90% RH (non-condensing) Storage: 5% ~ 90% RH (non-condensing)

Software Specs:

Status	System Information
	Logging Message
	Port	Statistics
		Error Disabled
		Bandwidth Utilization
	Link Aggregation
	MAC Address Table	16K
Network	IP Address	Static / Dynamic
Network	System Time	SNTP / From Computer / Manual Time
Port	Port Setting	State / Speed / Duplex / Flow Control
	Error Disabled	Recovery Interval	ACL / ARP Rate Limit / BPDU Guard / Broadcast Flood / DHCP Rate Limit / Port Security / Self Loop / Unicast Flood / Unknown Multicast Flood
	Link Aggregation	Group
		Port Setting	State / Speed / Flow Control
		LACP
	EEE
	Jumbo Frame	12K Byte
PoE	Global Setting	Schedule Status
	Priority Setting
	Power Limit
	Power Show
VLAN	VLAN	Create VLAN
		VLAN Configuration
		Membership
		Port Setting
	Voice VLAN	Property
	Voice VLAN	Voice OUI
	Protocol VLAN	Protocol Group
	Protocol VLAN	Group Binding
	MAC VLAN	MAC Group
	MAC VLAN	Group Binding
	Surveillance VLAN	Property
	Surveillance VLAN	Surveillance OUI
	GVRP	Property
		Membership
		Statistics
MAC Address Table	Dynamic Address	Aging Time
	Static Address
	Filtering Address
Spanning Tree	Property	State / Operation Mode / Path Cost / BPDU Handling	Operation Mode : STP/RSTP/MSTP
	Port Setting
	MST Instance
	MST Port Setting
	Statistics
Discovery	LLDP	Property
		Port Setting
		MED Network Policy
		MED Port Setting
		Packet View
		Local Information
		Neighbor
		Statistics
Multicast	General	Property	Unknown Multicast Action / Multicast Forward Method
		Group Address
		Router Port
		Forward All Table
		Throttling
		Filtering Profile
		Filtering Binding
	IGMP Snooping	Property	State / Version / Report Suppression
		Querier
		Statistics
	MLD Snooping	Property	State / Version / Report Suppression
	MLD Snooping	Statistics
	MVR	Property	State / VLAN / Mode / Group Start / Group Count / Query Time
		Port Setting
		Group Address
Security	RADIUS
	TACACS+
	AAA	Method List
	AAA	Login Authentication	Console / Telnet / SSH / HTTP / HTTPS
	Management Access	Management VLAN
		Management Service	Telnet / SSH / HTTP / HTTPS / SNMP / Session Timeout
		Management ACL
		Management ACE
	Authentication Manager	Property
		Port Setting
		Sessions
	Port Security
	Protected Port
	Storm Control		State / Broadcast / Unknown Multicast / Unknown Unicast / Action (Drop / Shutdown)
	DoS	Property
	DoS	Port Setting
	Dynamic ARP Inspection	Property
	Dynamic ARP Inspection	Statistics
	DHCP Snooping	Property
		Statistics
		Option82 Property
		Option82 Circuit ID
	IP Source Guard	Port Setting
		IMPV Binding
		Save Database
ACL	MAC ACL
	MAC ACE
	IPv4 ACL
	IPv4 ACE
	IPv6 ACL
	IPv6 ACE
	ACL Binding
QoS	General	Property	CoS / DSCP / CoS-DSCP / IP Precedence
		Queue Scheduling	Strict Priority / WRR
		CoS Mapping
		DSCP Mapping
		IP Precedence Mapping
	Rate Limit	Ingress / Egress Port
	Rate Limit	Egress Queue
Diagnostics	Logging	Property	Console / RAM / Flash
	Logging	Remote Server
	Mirroring
	Ping
	Traceroute
	Copper Test
	Fiber Module
	UDLD	Property	Message Time
	UDLD	Neighbor
Management	User Account
	Firmware	Upgrade / Backup	Action (Upgrade / Backup) / Method (TFTP / HTTP)
	Firmware	Active Image	Active Image / Backup Image
	Configuration	Upgrade / Backup	Action (Upgrade / Backup) / Method (TFTP / HTTP)
	Configuration	Save Configuration	Source File / Destination File, Restore Factory Default
	SNMP	View
		Group
		Community
		User
		Engine ID
		Trap Event	Authentication Failure / Link UP_Down / Cold Start / Warm Start
		Notification
RMON	Statistics
	History
	Event
	Alarm

Produktmerkmale:

Anzahl Ports PoE/LAN:	0/48
Belüftung Switch:	Mit Lüfter
Einsatzort Switch:	19"
LAN Geschwindigkeit:	1Gbit/S
Management:	smart managed (WebGui)
SFP Geschwindigkeit:	SFP+ 10GBit
SFP Port Anzahl:	6
