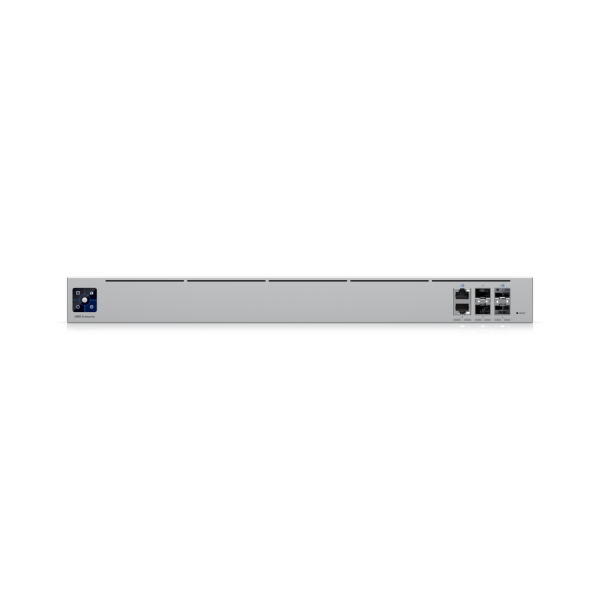

Ubiquiti Gateway Enterprise • 2x SFP28 • 2x SFP+ • 2x 2,5 GbE • UniFi • UXG-Enterprise
-
EU RoHS und REACH Erklärung
- stock: 0
- part no.: 235534
- vendor: Ubiquiti_Enterprise
- mnufacturer no.: UXG-Enterprise
- weight: 6.5kg
- warranty: 12 months
- Do you have any questions concerning this product?
25G independent gateway with multi-WAN load balancing, 12.5 Gbit/s IPS routing and redundant hot-swap power supplies.
Managed with a CloudKey, official UniFi hosting or UniFi network server with UniFi Network 8.3.32 and higher
Shadow Mode High Availability with automatic failover ensures uninterrupted connectivity (VRRP)*
12.5 Gbit/s routing with IDS/IPS
Licence-free real-time inspection of encrypted packets with NeXT AI Inspection** (SSL/TLS decryption)
(2) 25G SFP28,*** (2) 10G SFP+*** and (2) 2.5 GbE RJ45 ports (two interfaces can be remapped to WAN)
(2) supplied hot-swap power supplies for power redundancy
1.3-inch touchscreen
*Planned for an upcoming release of the UniFi Network Application
. **Must be managed with a CloudKey Enterprise or official UniFi hosting.
***For the best experience, combine with an official SFP28 module , SFP+ module or SFP+ to RJ45 adapter .
Mechanical | |
---|---|
Dimensions | 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8 inches) |
Weight | 6.5 kg |
Housing material | Aluminium CNC, SGCC steel |
Hardware | |
Processor | 18-core ARM® v8.2 at 2 GHz |
System memory | 16 GB DDR4 DIMM |
Management interface | Ethernet Bluetooth |
Network interface | LAN: (1) 25G SFP28 port (2) 10G SFP+ ports (1) 2.5 GbE RJ45 port WAN: (1) 25G SFP28 port (1) 2.5 GbE RJ45 port |
Performance method | (1) Universal AC input, 100240 V AC, 7 A max., 50/60 Hz |
Power supply | (2) Hot-swappable 150W CRPS |
Supported voltage range | 100240 V alternating current |
Max. Power consumption | 82 W |
ESD/EMP protection | Air: ± 8 kV, contact: ± 4 kV |
LCM display | (1) 1.3-inch touchscreen |
Button | Factory reset |
Operating ambient temperature | 0 to 40 °C (22 to 104 °F) |
Humidity during operation | 5 to 95 % non-condensing |
Certifications | CE, FCC, IC |
Gateway functions | |
Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application-, domain- and country-based QoS Application and device type identification Additional internet failover with LTE backup Reporting on internet quality and performance |
Next generation security | Application-aware firewall rules . Signature-based IPS/IDS threat detection. Content, country, domain and advert filtering. VLAN/subnet-based traffic segmentation. Complete stateful firewall- SSL/TLS testing with NEXT AI* *In conjunction with CloudKey Enterprise or Official UniFi Hosting. |
Advanced networking features | Licence-free SD-WAN* WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-Click-Teleport* and Identity Enterprise VPN** Policy-based WAN and VPN routing DHCP relay Customisable DHCP server IGMP proxy IPv6 ISP support *When paired with a CloudKey or official UniFi hosting . **When paired with a CloudKey |
Capacität | |
Concurrent sessions | 1 million |
New sessions/sec | 71,000 |
SSL/TLS & overflow verification of concurrent sessions | 10,000 A limit of 5,000 concurrent sessions is recommended if the gateway allows a lot of traffic through. This can be achieved by limiting which VLANs and domains pass through NeXT AI Inspection, e.g. by only including search engine and LLM queries on employee devices. |
IDS/IPS signatures | 80,000+ With advanced threat updates Learn more |
Routing throughput | |
Firewall | 23.5 Gbit/s |
IDS/IPS | 12.5 Gbit/s |
Measured with iPerf3 on DHCP WAN. Performance may be reduced with PPPoE depending on ISP implementation. | |
VPN server single user throughput | |
UniFi identity | 1.2 Gbit/s |
Teleport | 1.2 Gbit/s |
WireGuard | 1.2 Gbit/s |
OpenVPN | 210 Mbit/s |
L2TP | 280 Mbit/s |
Measured with iPerf3. | |
Site-to-site VPN single tunnel throughput | |
Site Magic | 1.1 Gbit/s |
OpenVPN | 120 Mbit/s |
IPsec | 580 Mbit/s |
Measured with iPerf3. | |
VPN client single tunnel throughput | |
WireGuard | 980 Mbit/s |
OpenVPN | 180 Mbit/s |
Measured with iPerf3. | |
LEDs | |
Ethernet | White: Link/Activity |
SFP+ | White: Link/Activity |
SFP28 connections | White: Link/Activity |
CRPS | Off: No alternating current available . Continuously white: AC and DC output active. Flashing white: Alternating current present. Solid red: AC power failure/fault events. Flashing red: Warning events. |
Software | |
UniFi network | Version 8.3.32 and higher |
Mobile app | UniFi iOS: Version 10.16.2 and higher UniFi Android: Version 10.17.2 and higher |
