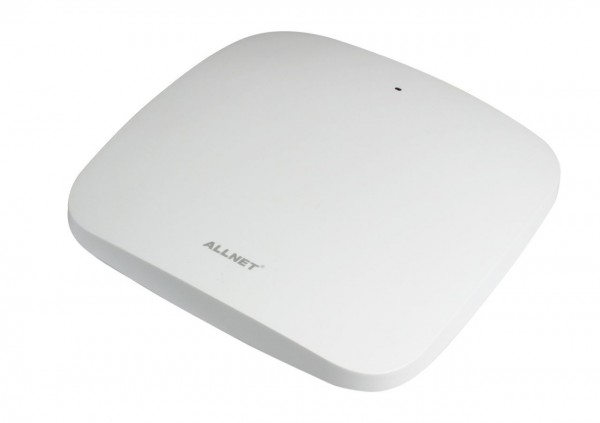

ALLNET Apollo Wireless AP WIFI6 • AX5400 • 2x2:2; 4x4:4 • Indoor • 2.5 GbE • ALL-WAPC0544AX-5400 • Apollo
- stock: 0
- part no.: 211736
- vendor: ALLNET
- mnufacturer no.: ALL-WAPC0544AX-5400
- EAN No.: 4038816126689
- weight: 1kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
declaration of conformity
data sheet DE
data sheet EN
data sheet ES
data sheet FR
EU RoHS und REACH Erklärung
ALLNET Apollo Wireless AP WIFI6 • AX5400 • 2x2:2; 4x4:4 • Indoor • 2.5 GbE • ALL-WAPC0544AX-5400 • Apollo
Highlights:
- Dual concurrent 802.11ax architecture and backward compatibility with 11ac/a/b/g/n client devices
- Support for WPA3 and WPA2-AES authentication
- 5 dBi integrated 2x2 antenna
- Supports up to 2,400 Mbps in the 5GHz frequency band and 574 Mbps in the 2.4GHz frequency band
- Supports 5GHz DFS channels
- Local and remote management via FitController controller without fees
- 1GB 802.3af PoE port for easy placement up to 328 feet from a power source
- Choice of AP and WDS modes to meet your management and deployment needs.
ALLNET Apollo Series ALL-WAPC0544AX-5400 is an advanced WiFi 6 Access Point, which deepens and extends the capabilities of WiFi for use in high-capacity environments. The Enterprise level feature packed hardware can be offered in a slim and low profile enclosure while also achieving optimal thermal heat dissipation to run more efficiently and consume less power for maximum 4x4 spatial streams with 4804 Mbps in 5GHz frequency band and 573 Mbps in 2.4GHz frequency band.
Physical Interfaces:
Technical Details Basics:
| Basic | ALL-WAPC0522AX-5400 Apollo Pro 2x2:2; 4x4:4 |
|
Main Chipset |
IPQ5018 ARM A53, 1GHz Dual-Core |
|
Flash |
8MB SPI NOR (reserved) 128MB NAND |
|
RAM |
512MB DDR3 |
|
Transmit Power (Combined) |
IPQ5018@2.4GHz: 21dBm |
|
QCN6024@5GHz: 27dBm |
|
|
Interface |
1x 10/100/1000/2500Mbps RJ45 Port 1x Reset Button 1x DC Barrel Jack |
|
Operating Temperature |
0 ~ 40°C |
|
Dimensions (W x L x H) |
160 x 160 x 30mm |
Fully Technical Details:
| Fully | ALL-WAPC0522AX-5400 Apollo Pro 2x2:2; 4x4:4 |
| Wireless Radio Specification | |
|
Access Point Type |
Indoor, dual radios concurrent, |
|
Frequency Radio |
2.4GHz: 2400MHz ~ 2495MHz, 5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz, 5470~5725MHz, 5725MHz~5850MHz Support radios and channels will be varied on the configured regulatory domain. |
|
Supported Radio Technology |
802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) |
|
Supported Modulation Type |
802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
|
Transmit Power (Combined) |
2.4GHz: 21dBm; 5GHz: 27dBm Maximum power is limited by regulatory domain |
|
MU-MIMO |
MU-MIMO allows multiple spatial streamsto be allocated to different clients simultaneously on both download and upload sides. |
|
Tx Beamforming (TxBF) |
Increasing signal reliability and transmitting distance. |
| Power | |
|
Maximum Power Consumption (TBD,estimated) |
18W |
|
PowerSource |
Standard IEEE802.3at DC IN 12V/2A |
|
Antenna |
|
| Internal Antenna |
2.4GHz:4dBi 5GHz:5dBi |
|
Interfaces |
|
|
Networking Interface |
One 10/100/1000/2500 Mbps Ethernet Port |
| Reset Button |
One(1) Reset Button (Convert Access Point to the Factory default or the Users Default) |
|
DCIN |
One(1) 12V DC IN |
| Mounting | |
| Ceiling or Wall Mounting |
Mount Access Point in on the ceiling or wall via included accessories |
| Mechanical & Environment | |
|
Dimensions (LxWxH) |
160mmx160mmx30mm |
| Weight | 430G |
| Operating | Temperature: 0°C~40°C Humidity:0%~90% typical |
| Storage | Temperature: -20°C~70°C Humidity:0%~90% typical |
| Marks | FCC Subpart15 B Subpart C 15.247 Subpart E 15.407 CE EN 300 328 EN 301 893 EN 50385 EN 55032 EN 55024 |
Fully Technical Details:
| Fully | ALL-WAPC0522AX-5400 Apollo Pro 2x2:2; 4x4:4 |
| Wireless Radio Specification | |
|
AccessPointType |
Indoor, dual radios concurrent, 5GHz 802.11 ax 4x4 MU MU-MIMO is backwards compatible with 802.11 ax/ ac/a/n mode, 2.4GHz 802.11 ax 2x2 MU MU-MIMO is backwards compatible with 802.11 b/g/n/ac |
|
FrequencyRadio |
2.4GHz: 2400MHz ~ 2495MHz, 5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz, 5470~5725MHz, 5725MHz~5850MHz Support radios and channels will be varied on the configured regulatory domain. |
|
SupportedRadioTechnology |
802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11b: Direct Direct-sequence spread spread-spectrum (DSSS) 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) 802.11ax supports very high throughput (VHT) —HE 20/40/80/160 MHz 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz 802.11n supports high throughput (HT) —HT 20/40 MHz 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256 256-QAM) 802.11n/ac/ax packet aggregation: A A-MPDU, A A-SPDU |
|
SupportedModulationType |
802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
|
TransmitPower(Combined) |
2.4GHz: 21dBm; 5GHz: 27dBm Maximum power is limited by regulatory domain |
|
MU-MIMO |
MU-MIMO allows multiple spatial streamsto be allocated to different clients simultaneously on both download and upload sides. |
|
TxBeamforming(TxBF) |
Increasing signal reliability and transmitting distance. |
| Power | |
|
MaximumPowerConsumption(TBD,estimated) |
18W |
|
PowerSource |
Standard IEEE802.3at DC IN 12V/2A |
|
Antenna |
|
| Internal Antenna |
2.4GHz:4dBi 5GHz:5dBi |
|
Interfaces |
|
|
NetworkingInterface |
One 10/100/1000/2500 Mbps Ethernet Port |
| Reset Button |
One(1) Reset Button (Convert Access Point to the Factory default or the Users Default) |
|
DCIN |
One(1) 12V DC IN |
| Mounting | |
| Ceiling or Wall Mounting |
Mount Access Point in on the ceiling or wall via included accessories |
| Mechanical & Environment | |
|
Dimensions(LxWxH) |
160mmx160mmx30mm |
| Weight | 430G |
| Operating | Temperature: 0°C~40°C Humidity:0%~90% typical |
| Storage | Temperature: -20°C~70°C Humidity:0%~90% typical |
| Marks | FCC Subpart15 B Subpart C 15.247 Subpart E 15.407 CE EN 300 328 EN 301 893 EN 50385 EN 55032 EN 55024 |
RF Performance Specification Wireless Indoor Access Point
|
Channel |
Data Rate |
Transmit Power (Typical AVG.) Tolerance = +/-1.5 dBm |
Receive Sensitivity (Per-chain) |
||||
|
2.4GHz |
5GHz |
2.4GHz |
5GHz |
||||
|
Combine |
EIRP |
Combine |
EIRP |
||||
|
802.11b |
1M |
21 |
25 |
- |
- |
-95 |
- |
|
11M |
21 |
25 |
- |
- |
-88 |
- |
|
|
802.11g/a |
6M |
21 |
25 |
27 |
32 |
-91 |
-88 |
|
54M |
18 |
22 |
25 |
30 |
-75 |
-71 |
|
|
802.11n HT20 |
MCS0 |
21 |
25 |
27 |
32 |
-92 |
-88 |
|
MCS7 |
18 |
22 |
25 |
30 |
-74 |
-71 |
|
|
802.11n HT40 |
MCS0 |
21 |
25 |
27 |
32 |
-89 |
-86 |
|
MCS7 |
18 |
22 |
25 |
30 |
-71 |
-68 |
|
|
802.11ac VHT20 |
MCS0 |
21 |
25 |
27 |
32 |
-92 |
-88 |
|
MCS8 |
17 |
21 |
24 |
29 |
-70 |
-66 |
|
|
802.11ac VHT40 |
MCS0 |
21 |
25 |
27 |
32 |
-89 |
-86 |
|
MCS9 |
17 |
21 |
23 |
28 |
-67 |
-63 |
|
|
802.11ac VHT80 |
MCS0 |
- |
- |
27 |
32 |
- |
-81 |
|
MCS9 |
- |
- |
23 |
28 |
- |
-59 |
|
|
802.11ac VHT160 |
MCS0 |
- |
- |
27 |
32 |
- |
-80 |
|
MCS11 |
- |
- |
22 |
27 |
- |
-53 |
|
|
802.11ax HE20 |
MCS0 |
21 |
25 |
27 |
32 |
-92 |
-88 |
|
MCS11 |
16 |
20 |
21 |
26 |
-63 |
-59 |
|
|
802.11ax HE40 |
MCS0 |
21 |
25 |
27 |
32 |
-89 |
-86 |
|
MCS11 |
16 |
20 |
21 |
26 |
-61 |
-57 |
|
|
802.11ax HE80 |
MCS0 |
- |
- |
27 |
32 |
- |
-81 |
|
MCS11 |
- |
- |
21 |
26 |
- |
-52 |
|
|
802.11ax HE160 |
MCS0 |
- |
- |
27 |
32 |
- |
-80 |
|
MCS11 |
- |
- |
21 |
26 |
- |
-52 |
|
