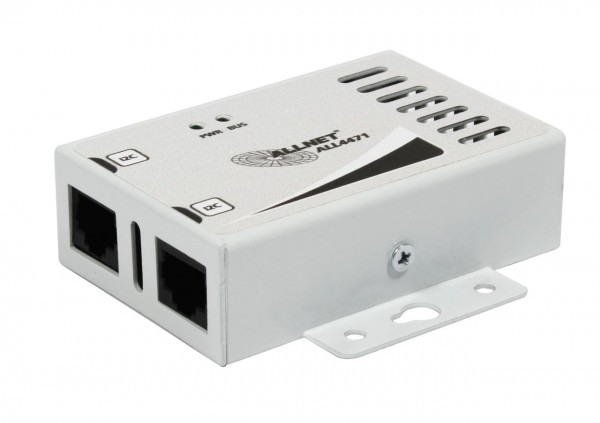

ALLNET MSR ALL4471 / Co2-Kohlendioxid-Sensor *white*
- stock: 0
- part no.: 166559
- vendor: ALLNET
- mnufacturer no.: ALL4471
- EAN No.: 4038816166555
- weight: 0.1kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
data sheet FR
EU RoHS und REACH Erklärung
Highlights:
- compatible with ALL3418v2/3419/35xx/4500/5000
- Carbon dioxide sensor "CO2 sensor" displays the values in ppm.
- Aluminium housing with bracket for wall mounting
- CO2 measuring range 0-40000ppm
- Measurement accuracy ± (30 ppm + 3% MV) / (25 °C, 400 - 10'000 ppm)
- Connections: 1x RJ45 input / 1x RJ45 output
- (no longer compatible with ALL3000/400x & ALL4504/4404 8 Port Multiplexer)
ALL4471 - Sensor Module for HVAC and Indoor Air Quality Applications
ALLNET Technology for IR detection enables highly accurate carbon dioxide measurement at a competitive price. Along with the NDIR measurement technology for CO2 detection.
Thanks to the dual-channel principle for the measurement of carbon dioxide concentration, the sensor compensates for long-term drifts automatically by design. The very small module height allows easy integration into different applications.
Carbon dioxide is a key indicator of indoor air quality. Thanks to new energy standards and better insulation, houses have be-come increasingly energy efficient, but the air quality can deteriorate rapidly. Active ventilation is needed to maintain a comfortable and healthy indoor environment, and to improve the well-being and productivity of the inhabitants. ALLNET´s ALL4471 offers accurate and stable CO2. This enables customers to develop new solutions that increase energy efficiency and simultaneously support well-being.
Technical Details:
| CO2 Sensor Specifications | |
|---|---|
| CO2 measurement range | 0 - 40'000 ppm |
| Accuracy | ± (30 ppm + 3% MV) (25 °C, 400 - 10'000 ppm) |
| Repeatability | 10 ppm |
| Temperature stability | 2.5 ppm / °C (0-50 °C) |
| Response time (t63) | 20 s |
| Humidity Sensor Specifications | |
| Relative humidity measurement range | 0 - 100 % RH |
| Typ accuracy | ±3% RH (0-100% RH) |
| Repeatability | 0.1% RH |
| Response time (t63) | 8 s |
| Electrical Specifications | |
| Supply voltage | 3.3 - 5.5 V |
| Average current @ 2s measurement rate | 19 mA |
| Max. current | 75 mA |
Produktmerkmale:
| Bauform: | Metallgehäuse |
| Einsatzorte: | indoor |
| Kompatibilität Zentrale: | ALL3418, ALL3419, ALL3420, ALL3500, ALL3500PoE, ALL3692, ALL3696, ALL4176, ALL4500, ALL5000, ALL5000v2, ALL5100, PoE Signallampe |
| Sensorart: | Co2 |
