Product information "ALLNET Wireless AX 5G/4G Router 3000Mbit, OpenVPN/Wireguard "OpenWRT""

WiFi-6 Dual-SIM 4G/5G Cellular Gateway/Router with embedded openWRT/openVPN/Wireguard

Reliable Cellular Networks in Rural Areas

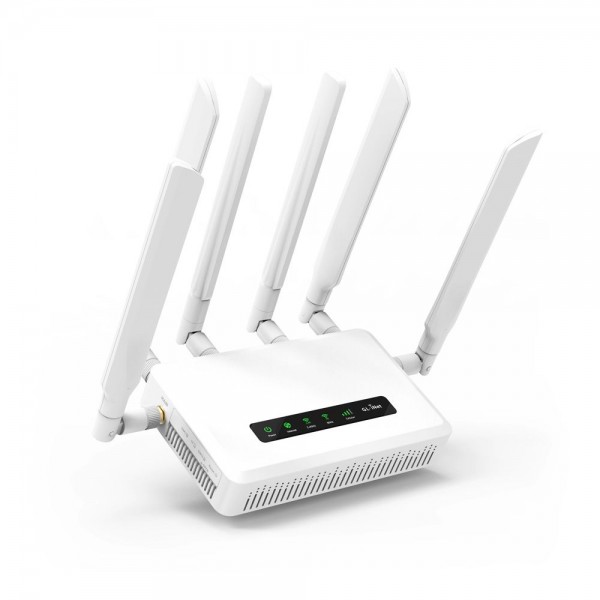

GL-X3000 is a Wi-Fi 6 cellular gateway designed to provide reliable cellular networks in remote locations and high speed internet in urban areas. It has six external antennas for long range connection, two SIM Cards for selecting between the ISP with stronger connections, and Multi-WAN between the WAN port, SIM Card, and Repeater.

Supports 4G LTE & 5G NR
Dual-SIM Cards & Multi-WAN
Wi-Fi 6 Max. 574 Mbps (2.4GHz) + 2402 Mbps (5GHz) Wi-Fi Speeds
OpenVPN speed up to 150 Mbps; WireGuard speed up to 300 Mbps

Module: RM520N-GL
5G NR	NSA	n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
5G NR	SA	n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
LTE	LTE-FDD	B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71
	LTE-TDD	B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48
	LAA	B46
UMTS	WCDMA	B1/ 2/ 3/ 5/ 8/ 19
GNSS	GPS/ GLONASS/ BDS/ Galileo/ QZSS

Spitz AX (GL-X3000C16) 4G LTE Frequency Bands

Module: EM160R-GL
LTE	LTE-FDD	B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29?/B30/B32?/B66
	LTE-TDD	Intra-band and Inter-band
	DL 2CA	Intra-band and Inter-band
	DL 3CA	Intra-band and Inter-band
	DL 4CA	Intra-band and Inter-band
	DL 5CA	Intra-band and Inter-band within 5 bands
	DL 4×4 MIMO	B1/B2/B3/B4/B7/B25/B30/B32?/B38/B39/B40/B41/B66
	DL 256QAM	Supported
	UL 2CA	Intra-band
	UL 64QAM	Supported
UMTS	WCDMA	B1/B2/B3/B4/B5/B6/B8/B19
GNSS	GPS/GLONASS/BeiDou(COMPASS)/Galileo

Notes: ?: For secondary component carrier only.

Technical Details:

Interface	1 x WAN Ethernet port 1 x LAN Ethernet port 1 x USB 2.0 port 1 x MicroSD card slot (Max.1TB) 2 x Nano SIM card slot 1 x Reset button
CPU	MediaTek Dual-core MT7981A, @1.3GHz
Memory / Storage	DDR4 512 MB / eMMC 8GB
Protocol	IEEE 802.11a/b/g/n/ac/ax
Wi-Fi Speed	574Mbps (2.4GHz), 2402Mbps (5GHz)
Ethernet Speed	WAN Port: 10/100/1000/2500Mbps LAN Port: 10/100/1000Mbps
Antennas	6 x Optional Antennas (4 for 4G LTE/5G NR, 2 for Wi-Fi)
LEDs	System / 5G WiFi / 2.4G WiFi / Internet / Cellular Signal Strength
Power Input	DC 9-36V
Power Consumption	<14W
Operating Temperature	0 ~ 40°C (32 ~ 104°F)
Storage Temperature	-20 ~ 70°C (-4 ~ 158°F)
Dimension / Weight	155 x 95 x 36mm / 520g
