ALLNET Wireless AP WIFI6 • AX1200 • 2x2 • Outdoor • 1x GbE passive PoE 24VDC • IP55 • Bridge/AP/WDS • Point-to-Point-Bundle 2x ALL-WB100AXF-1200
- stock: 0
- part no.: 227986
- vendor: ALLNET
- mnufacturer no.: ALL-WB100AXF-1200_B2B
- weight: 2kg
- warranty: 24 months
- Do you have any questions concerning this product?
Downloads
data sheet DE
data sheet EN
data sheet ES
data sheet FR
EU RoHS und REACH Erklärung

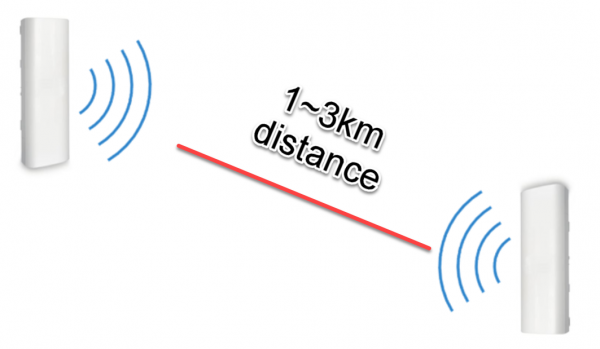

The bundle includes 2x ALL-WB100AXF-1200 WiFi6 Bridge for a point-to-point connection up to 3KM max. 471MB more details can be found in the product description.
ALLNET Wireless AX 1200Mbps IP55 Outdoor Bridge ALL-WB100AXF-1200
Highlights:
- Wi-Fi 6 technology for powerful and efficient outdoor Wi-Fi
- Beamforming optimizes antenna signal, reception, and reliability for clients
- 2x2 directional antennas to support up to 1200 Mbps in the 5 GHz range
- High transmit power of 26 dBm extends Wi-Fi to the yard or from building to building
- Integrated directional antenna with high gain (16 dBi) extends wireless networks up to 5 miles (point-to-point)
- IP55-certified weatherproof and dustproof enclosure
- Flexible operating modes: access point, station, WDS access point, WDS station, repeater
- GE PoE port supports flexible power options
The ALLNET Wireless Bridge WiFi6 2x2 5GHz IP55 Outdoor Long Range CPE provides reliable and efficient outdoor Wi-Fi connectivity with Wi-Fi 6 technology and beamforming optimization. It features a high transmit power of 26 dBm and an integrated high gain directional antenna of 16 dBi for extended Wi-Fi range of up to 5 miles (point-to-point). It is also weatherproof and offers flexible operating modes with easy installation over 100 meters.
Technical Details:
|
Model Name |
ALL-WB100AXF-1200 |
|
Chipset |
|
|
Main Control Unit |
IPQ5018 |
|
Flash & Memory |
8MB NOR (layout reserved) 128MB NAND |
|
512MB DDR3 RAM |
|
|
Switch/PHY |
QCA8337 (1GbE) |
|
PD |
YES |
Operating Frequency |
Single band 5 GHz |
Operation Mode |
AP/STA/WDS AP/WDS STA/ Repeater |
Frequency Radio |
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz |
Radio Chains |
2 x 2:2 |
SU-MIMO Capability |
Two (2) spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5GHz radio. |
MU-MIMO Capability |
Two (2) spatial streams Multiple (MU)-MIMO up to 1,200 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously. |
|
Supported Data Rates |
802.11ax: 5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2) 802.11b: 1, 2, 5.5, 11 802.11a/g: 6, 9, 12, 18, 36, 48, 54 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15) 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2) |
Supported Radio Technologies |
802.11ax: 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM) 802.11b: Direct-sequence spread-spectrum (DSSS) |
Channelization |
802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz 802.11n supports high throughput (HT) —HT 20/40 MHz 802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU |
Supported Modulation |
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11b: BPSK, QPSK, CCKA |
Max. Concurrent User |
128 per radio |
|
RF Power Setting |
|
|
Transmit Power (5GHz) |
Conductive 22dBm per-chain @MCS0 20Mhz |
|
Interfaces |
|
|
Ethernet |
1x 1GbE RJ45 54VDC Proprietary PoE INPUT |
|
LED Indicator |
4x single-color LED, 3x tri-color LED for signal |
|
Reset Button |
1x |
|
Power Spec |
|
|
Power Source |
48V Proprietary PoE (EPA5006GR) |
Max. Power Consumption |
PoE: Max. 13W |
|
Antenna |
|
|
Antenna Specification |
Internal Patch Array |
|
1x single-band @5Ghz, 14dBi (Port1: 40°x20°;Port2: 40°x20°) 22dBm TX Power max. |
|
| Antenna Beamwidth: Azimuth:40°, Elevation:20° | |
|
Environmental |
|
|
Rain & Dust ingression protection |
IP55 |
|
Operating Temperature |
-20°C ~ 60°C |
Storage Temperature & Humidity |
-40ºC ~ 80ºC Storage: 90% or less |
|
Humidity |
Up to 95% RH, non-condensing |
|
Mounting Options |
|
Dimension |
260*84*55mm |
|
Wall Mount |
YES |
|
Pole Mount |
YES |
|
Certification |
|
| Marks | FCC CE |
